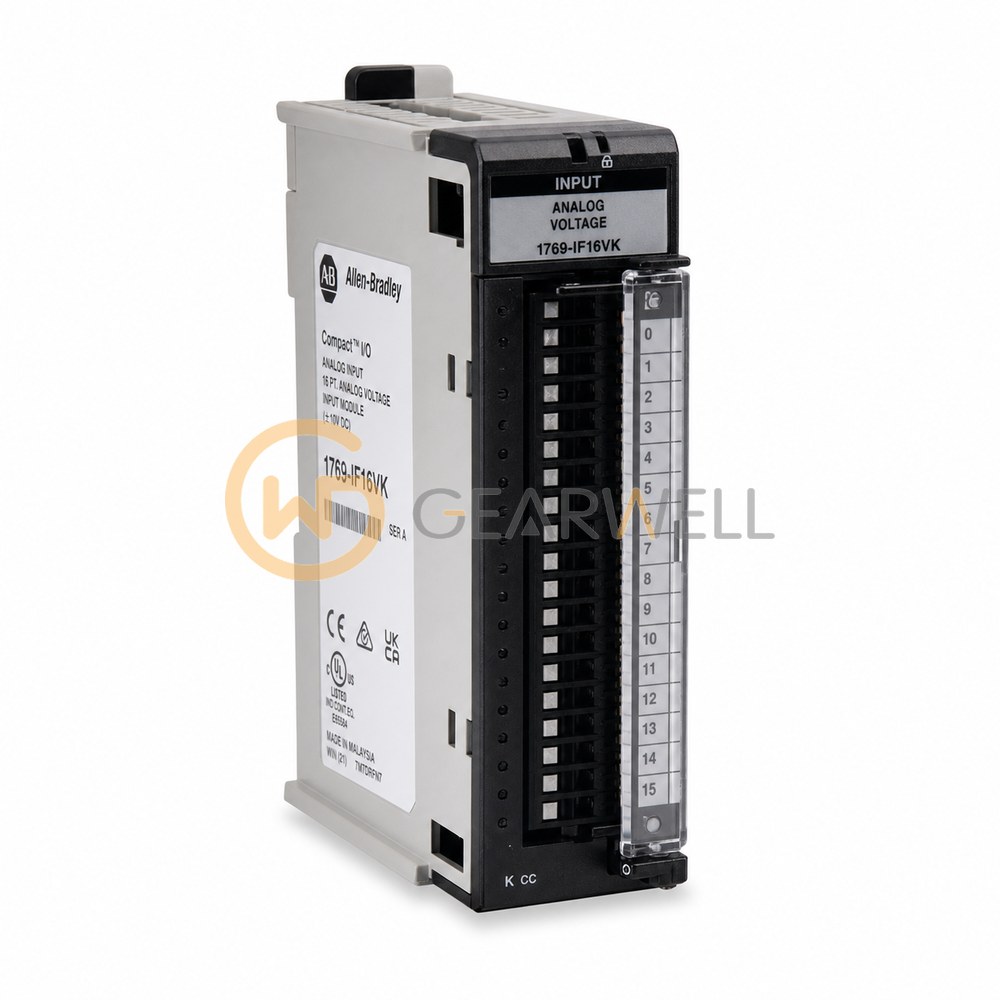

Allen-Bradley 1769-IF16VK Compact I/O 16-Channel Conformal-Coated Analog Voltage Input Module
- Brand
- Allen-Bradley
- Model
- 1769IF16VK
- GEARWELL SKU
- GWP-000002342
- Category
- PLCs & I/O
Key specifications
- Dimensions
- 118 x 35 x 87 mm (H x W x D), approximately; height with mounting tabs 138 mm
- Input resolution
- 16 bits unipolar; 15 bits plus sign bipolar at 50/60 Hz filter settings
- Input ranges
- +/-10 V, 0-10 V, 0-5 V and 1-5 V
- Product type
- Conformal-coated 16-channel analog voltage input module
- Converter type
- Sigma-delta
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 1769-IF16VK Compact I/O 16-Channel Conformal-Coated Analog Voltage Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769IF16VK |
| Category | PLCs & I/O |
| Dimensions | 118 x 35 x 87 mm (H x W x D), approximately; height with mounting tabs 138 mm |
| Input resolution | 16 bits unipolar; 15 bits plus sign bipolar at 50/60 Hz filter settings |
| Input ranges | +/-10 V, 0-10 V, 0-5 V and 1-5 V |
| Product type | Conformal-coated 16-channel analog voltage input module |
| Converter type | Sigma-delta |
| Input channels | 16 single-ended |
| Isolation test and working voltage | 500 V AC or 710 V DC for 60 s, qualification test, input/output group to bus; 30 V AC/DC working voltage |
| Input impedance | >1 Mohm |
| Maximum bus current draw | 190 mA at 5.1 V DC; 70 mA at 24 V DC |
| Maximum heat dissipation | 2.4 W |
| Power supply distance rating | 8 modules |
