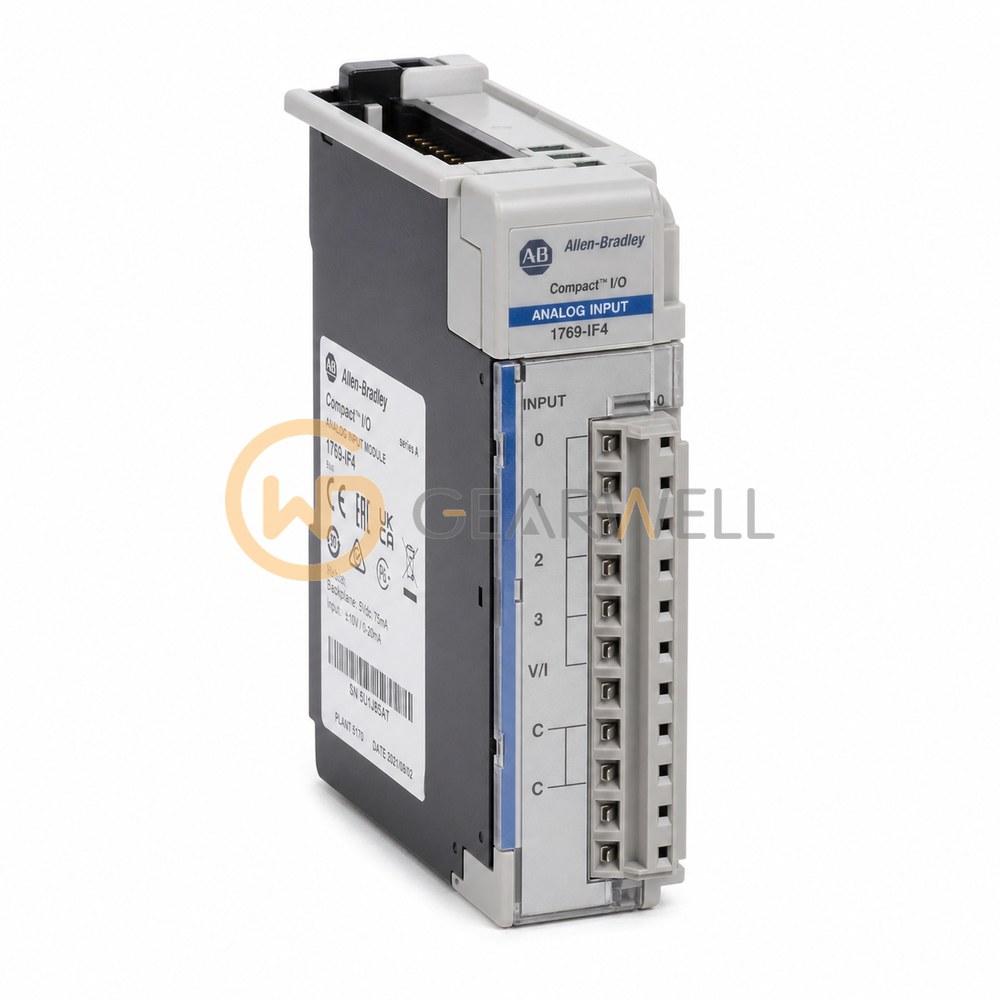

Allen-Bradley 1769-IF4 Compact I/O 4-Channel Analog Input Module
- Brand
- Allen-Bradley
- Model
- 1769IF4
- GEARWELL SKU
- GWP-000003322
- Category
- PLCs & I/O
Key specifications
- Depth
- 87 mm
- Height
- 118 mm; 138 mm including mounting tabs
- Isolation test and working voltage
- 500 V AC or 710 V DC for 60 s, qualification test, input/output group to bus; 30 V AC/DC working voltage
- Input resolution
- 14 bits unipolar; 14 bits plus sign bipolar at 50/60 Hz filter settings
- Input ranges
- +/-10 V, 0-10 V, 0-5 V and 1-5 V; 0-20 mA and 4-20 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1769-IF4 is a Compact I/O analog input module with 4 differential or single-ended voltage/current inputs for ±10V, 0…10V, 0…5V, 1…5V, 0…20 mA and 4…20 mA, with a resolution of 14 bits (unipolar) or 14 bits plus sign (bipolar). It draws 120 mA at 5.1V and 60 mA at 24V from the bus and has a power supply distance rating of 8 modules. Compact I/O modules lock together with a tongue-and-groove design and an integrated bus connector, mount on a DIN rail or panel, and work with 1769 CompactLogix controllers, as expansion I/O for a MicroLogix 1500 controller, or with a 1769-ADN DeviceNet or 1769-AENTR EtherNet/IP adapter; the module is rated for 0…60 °C (32…140 °F) operation.
Technical reference
| Product name | Allen-Bradley 1769-IF4 Compact I/O 4-Channel Analog Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769IF4 |
| Category | PLCs & I/O |
| Depth | 87 mm |
| Height | 118 mm; 138 mm including mounting tabs |
| Isolation test and working voltage | 500 V AC or 710 V DC for 60 s, qualification test, input/output group to bus; 30 V AC/DC working voltage |
| Input resolution | 14 bits unipolar; 14 bits plus sign bipolar at 50/60 Hz filter settings |
| Input ranges | +/-10 V, 0-10 V, 0-5 V and 1-5 V; 0-20 mA and 4-20 mA |
| Maximum bus current draw | 120 mA at 5.1 V DC; 60 mA at 24 V DC |
| Input channels | 4 differential or single-ended |
| Maximum heat dissipation | 2.52 W |
| Power supply distance rating | 8 modules |
