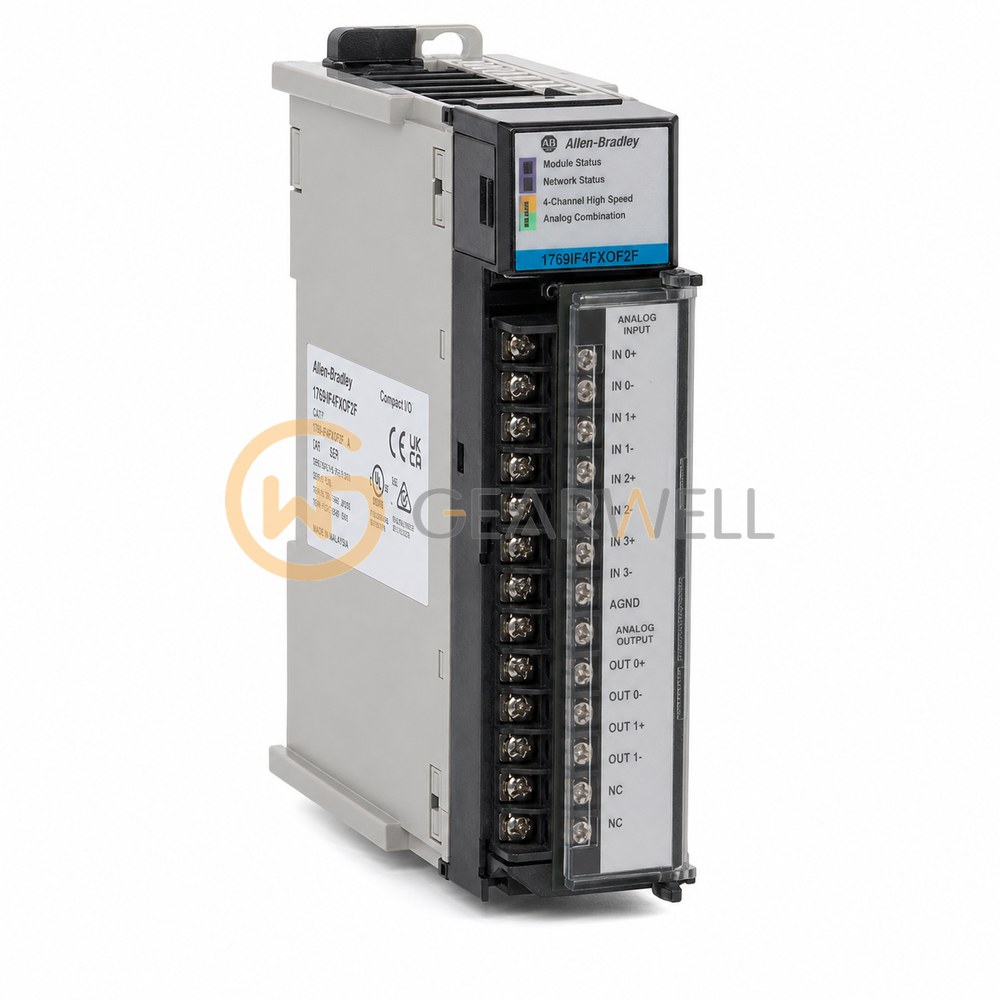

Allen-Bradley 1769-IF4FXOF2F Compact I/O Fast 4-Input / 2-Output Analog Module
- Brand
- Allen-Bradley
- Model
- 1769IF4FXOF2F
- GEARWELL SKU
- GWP-000000110
- Category
- PLCs & I/O
Key specifications
- Depth
- 87 mm
- Height
- 118 mm; 138 mm including mounting tabs
- Isolation test and working voltage
- 500 V AC or 710 V DC for 60 s, qualification test, input/output group to bus; 30 V AC/DC working voltage
- Input ranges
- +/-10 V, 0-10 V, 0-5 V and 1-5 V; 0-20 mA and 4-20 mA
- Maximum bus current draw
- 220 mA at 5.1 V DC; 120 mA at 24 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1769-IF4FXOF2F is a Compact I/O fast combination analog module with 4 differential or single-ended inputs and 2 single-ended outputs for ±10V, 0…10V, 0…5V, 1…5V, 0…20 mA and 4…20 mA, with 14-bit input resolution and 13-bit output resolution (plus sign for bipolar ranges). It draws 220 mA at 5.1V and 120 mA at 24V from the bus and has a power supply distance rating of 8 modules. Compact I/O modules lock together with a tongue-and-groove design and an integrated bus connector, mount on a DIN rail or panel, and work with 1769 CompactLogix controllers, as expansion I/O for a MicroLogix 1500 controller, or with a 1769-ADN DeviceNet or 1769-AENTR EtherNet/IP adapter; the module is rated for 0…60 °C (32…140 °F) operation.
Technical reference
| Product name | Allen-Bradley 1769-IF4FXOF2F Compact I/O Fast 4-Input / 2-Output Analog Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769IF4FXOF2F |
| Category | PLCs & I/O |
| Depth | 87 mm |
| Height | 118 mm; 138 mm including mounting tabs |
| Isolation test and working voltage | 500 V AC or 710 V DC for 60 s, qualification test, input/output group to bus; 30 V AC/DC working voltage |
| Input ranges | +/-10 V, 0-10 V, 0-5 V and 1-5 V; 0-20 mA and 4-20 mA |
| Maximum bus current draw | 220 mA at 5.1 V DC; 120 mA at 24 V DC |
| Output ranges | +/-10 V, 0-10 V, 0-5 V and 1-5 V; 0-20 mA and 4-20 mA |
| Input channels | 4 differential or single-ended |
| Output channels | 2 single-ended |
| Input resolution | 14 bits unipolar; 14 bits plus sign bipolar at 50/60 Hz filter settings |
| Output resolution | 13 bits unipolar; 13 bits plus sign bipolar |
| Power supply distance rating | 8 modules |
