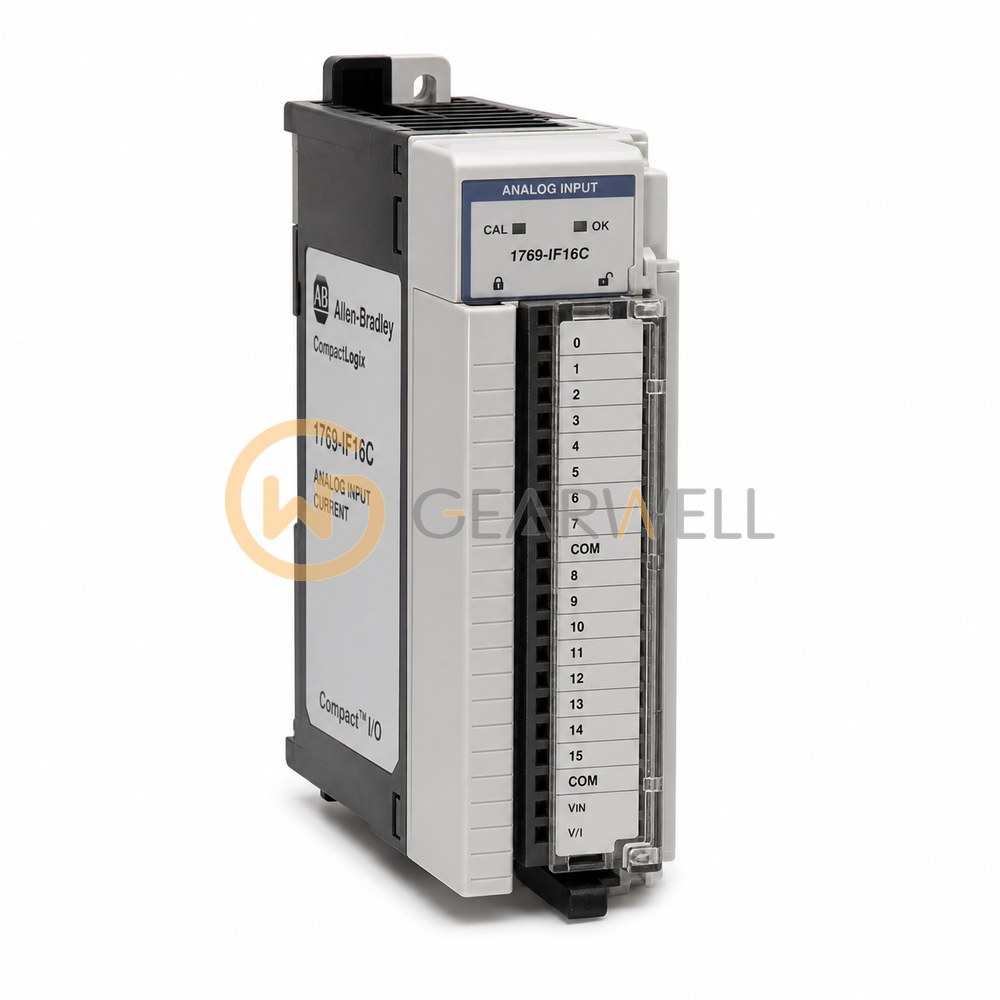

Allen-Bradley 1769-IF16C Compact I/O 16-Channel Analog Current Input Module
- Brand
- Allen-Bradley
- Model
- 1769IF16C
- GEARWELL SKU
- GWP-000000336
- Category
- PLCs & I/O
Key specifications
- Depth
- 87 mm
- Height
- 118 mm; 138 mm including mounting tabs
- Isolation test and working voltage
- 500 V AC or 710 V DC for 60 s, qualification test, input/output group to bus; 30 V AC/DC working voltage
- Input ranges
- 0-20 mA and 4-20 mA
- Maximum bus current draw
- 190 mA at 5.1 V DC; 70 mA at 24 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1769-IF16C is a Compact I/O analog input module with 16 single-ended current inputs for 0…20 mA and 4…20 mA, with a resolution of 16 bits (unipolar) or 15 bits plus sign (bipolar) and an input impedance of 249 Ω. It draws 190 mA at 5.1V and 70 mA at 24V from the bus and has a power supply distance rating of 8 modules. Compact I/O modules lock together with a tongue-and-groove design and an integrated bus connector, mount on a DIN rail or panel, and work with 1769 CompactLogix controllers, as expansion I/O for a MicroLogix 1500 controller, or with a 1769-ADN DeviceNet or 1769-AENTR EtherNet/IP adapter; the module is rated for 0…60 °C (32…140 °F) operation.
Technical reference
| Product name | Allen-Bradley 1769-IF16C Compact I/O 16-Channel Analog Current Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769IF16C |
| Category | PLCs & I/O |
| Depth | 87 mm |
| Height | 118 mm; 138 mm including mounting tabs |
| Isolation test and working voltage | 500 V AC or 710 V DC for 60 s, qualification test, input/output group to bus; 30 V AC/DC working voltage |
| Input ranges | 0-20 mA and 4-20 mA |
| Maximum bus current draw | 190 mA at 5.1 V DC; 70 mA at 24 V DC |
| Input channels | 16 single-ended |
| Input impedance | 249 ohm |
| Input resolution | 16 bits unipolar; 15 bits plus sign bipolar at 50/60 Hz filter settings |
| Power supply distance rating | 8 modules |
