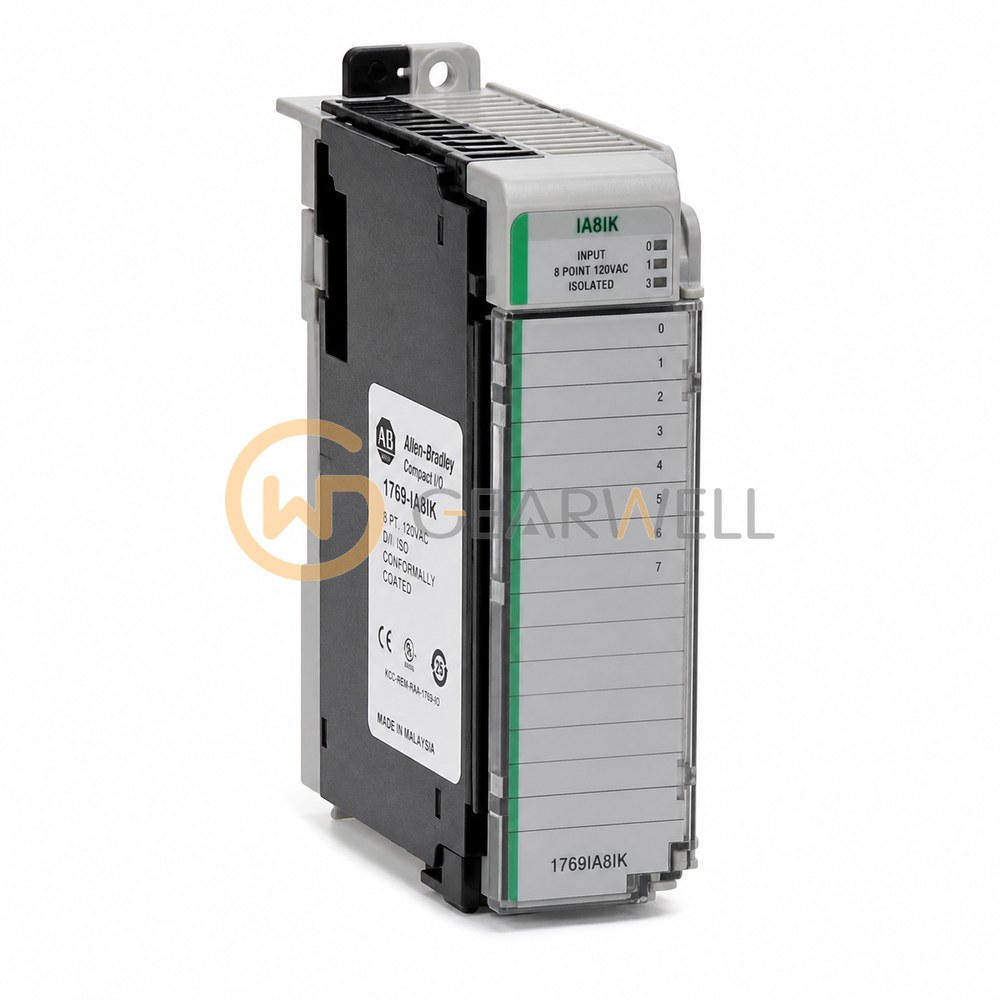

Allen-Bradley 1769-IA8IK Compact I/O 8-Point 120 V AC Isolated Conformal-Coated Input Module
- Brand
- Allen-Bradley
- Model
- 1769IA8IK
- GEARWELL SKU
- GWP-000000528
- Category
- PLCs & I/O
Key specifications
- Nominal input voltage category
- 100/120 V AC
- Maximum bus current draw
- 90 mA at 5.1 V DC
- Maximum input delay
- 20 ms on and 20 ms off
- Product type
- Conformal-coated, individually isolated AC input module
- Operating input voltage
- 79-132 V AC, 47-63 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1769-IA8IK is a Compact I/O input module with 8 individually isolated inputs for 100/120V AC, an operating range of 79…132V AC at 47…63 Hz, and an on-state voltage of at least 79V AC. It draws 90 mA at 5.1V from the bus and has a power supply distance rating of 8 modules. Compact I/O modules lock together with a tongue-and-groove design and an integrated bus connector, mount on a DIN rail or panel, and work with 1769 CompactLogix controllers, as expansion I/O for a MicroLogix 1500 controller, or with a 1769-ADN DeviceNet or 1769-AENTR EtherNet/IP adapter; the module is rated for 0…60 °C (32…140 °F) operation. This K version adds conformal coating.
Technical reference
| Product name | Allen-Bradley 1769-IA8IK Compact I/O 8-Point 120 V AC Isolated Conformal-Coated Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769IA8IK |
| Category | PLCs & I/O |
| Nominal input voltage category | 100/120 V AC |
| Maximum bus current draw | 90 mA at 5.1 V DC |
| Maximum input delay | 20 ms on and 20 ms off |
| Product type | Conformal-coated, individually isolated AC input module |
| Operating input voltage | 79-132 V AC, 47-63 Hz |
| Manufacturer catalog lifecycle (checked 2026-10-07) | Active mature |
| Input configuration | 8 individually isolated AC inputs; conformal-coated catalog option |
| Power supply distance rating | 8 modules |
