Allen-Bradley 1769-OF4VI Compact I/O 4-Channel Isolated Analog Voltage Output Module
- Brand
- Allen-Bradley
- Model
- 1769-OF4VI
- GEARWELL SKU
- GWP-000002793
- Category
- PLCs & I/O
Key specifications
- Depth
- 87 mm
- Height
- 118 mm; 138 mm including mounting tabs
- Isolation test and working voltage
- 500 V AC or 710 V DC for 60 s, qualification test, input/output group to bus; 30 V AC/DC working voltage
- Nominal output resolution
- 15 bits plus sign; effective resolution varies by range
- Output ranges
- +/-10 V, 0-10 V, 0-5 V and 1-5 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

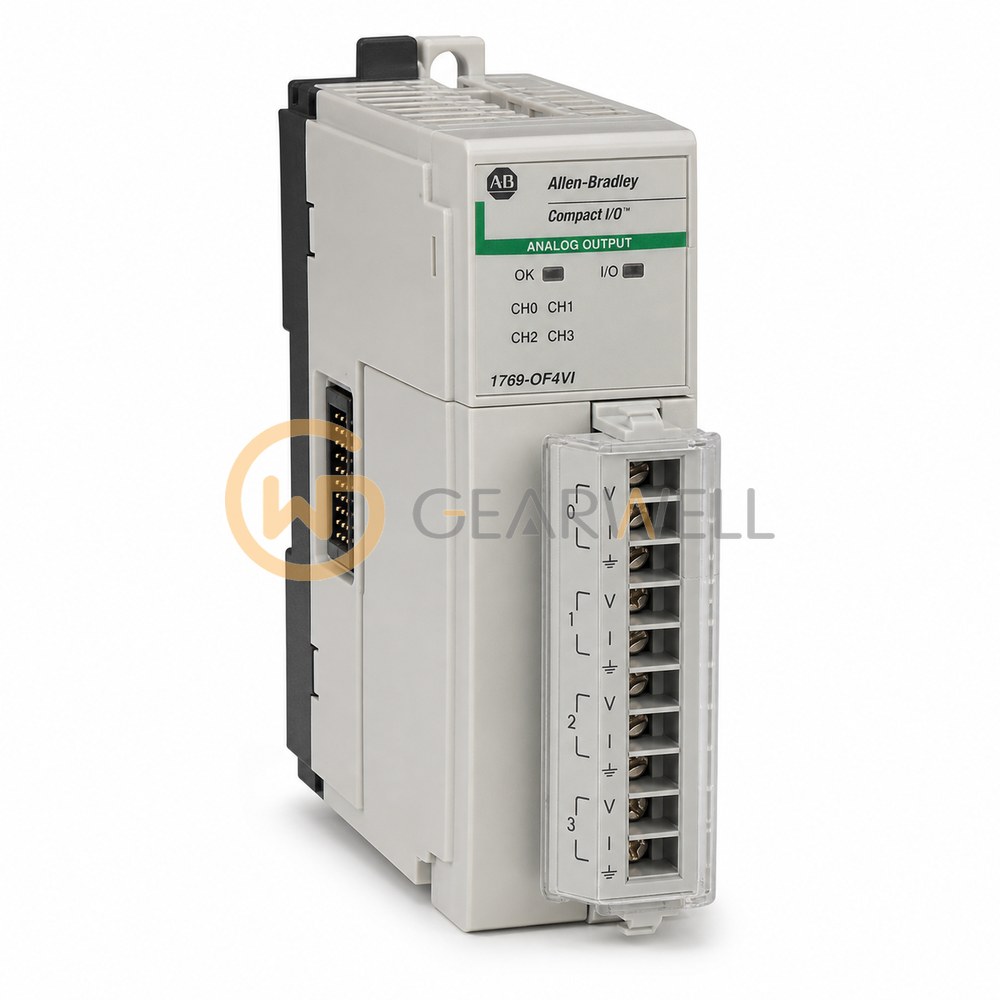

The Allen-Bradley 1769-OF4VI is a Compact I/O analog output module with 4 individually isolated differential voltage outputs for ±10V, 0…10V, 0…5V and 1…5V DC, with a resolution of 14.89 bits on the 0…10V DC range and a load of at least 2 kΩ. It has a power supply distance rating of 8 modules. Compact I/O modules lock together with a tongue-and-groove design and an integrated bus connector, mount on a DIN rail or panel, and work with 1769 CompactLogix controllers, as expansion I/O for a MicroLogix 1500 controller, or with a 1769-ADN DeviceNet or 1769-AENTR EtherNet/IP adapter; the module is rated for 0…60 °C (32…140 °F) operation.
Technical reference
| Product name | Allen-Bradley 1769-OF4VI Compact I/O 4-Channel Isolated Analog Voltage Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769-OF4VI |
| Category | PLCs & I/O |
| Depth | 87 mm |
| Height | 118 mm; 138 mm including mounting tabs |
| Isolation test and working voltage | 500 V AC or 710 V DC for 60 s, qualification test, input/output group to bus; 30 V AC/DC working voltage |
| Nominal output resolution | 15 bits plus sign; effective resolution varies by range |
| Output ranges | +/-10 V, 0-10 V, 0-5 V and 1-5 V |
| Output load resistance | At least 2 kohm |
| Channels | 4 individually isolated differential voltage outputs |
| Power supply distance rating | 8 modules |
| Maximum output current | 5 mA |
