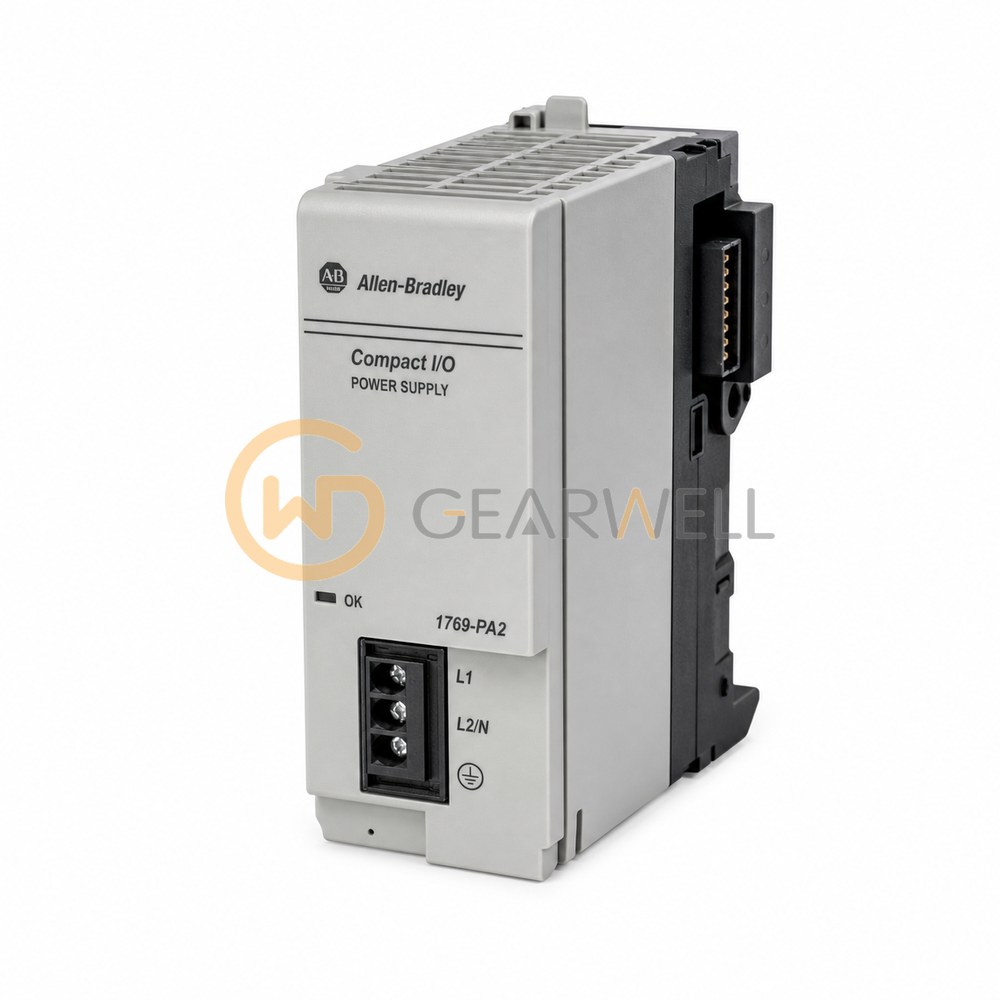

Allen-Bradley 1769-PA2 Compact I/O AC Power Supply 2 A / 0.8 A
- Brand
- Allen-Bradley
- Model
- 1769-PA2
- GEARWELL SKU
- GWP-000000245
- Category
- PLCs & I/O
Key specifications
- Height
- 118 mm
- Mounting
- DIN rail or panel
- Width x depth
- 70 x 87 mm
- Product type
- Compact I/O AC-input power supply, 2 A / 0.8 A
- AC input voltage range
- 85-265 V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1769-PA2 is a Compact I/O expansion power supply for 85…265V AC, 47…63 Hz input that supplies 2.0 A at 5V DC and 0.8 A at 24V DC to the modules on its left and right in a 1769 bank, and also provides 24V DC user power for sensors. It is rated for operation from 0 °C to 60 °C (32…140 °F).
Technical reference
| Product name | Allen-Bradley 1769-PA2 Compact I/O AC Power Supply 2 A / 0.8 A |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769-PA2 |
| Category | PLCs & I/O |
| Height | 118 mm |
| Mounting | DIN rail or panel |
| Width x depth | 70 x 87 mm |
| Product type | Compact I/O AC-input power supply, 2 A / 0.8 A |
| AC input voltage range | 85-265 V AC |
| Output derating | Bus output depends on case temperature and user 24 V output load; apply TD008 output-derating curves |
| Input frequency | 47-63 Hz |
| Manufacturer catalog lifecycle (checked 2026-10-07) | Active mature |
| Module connection | Direct Compact I/O bus connection; AC field-power wiring is required |
| Rated bus outputs | 2 A at 5 V DC and 0.8 A at 24 V DC; subject to combined-load and temperature derating |
