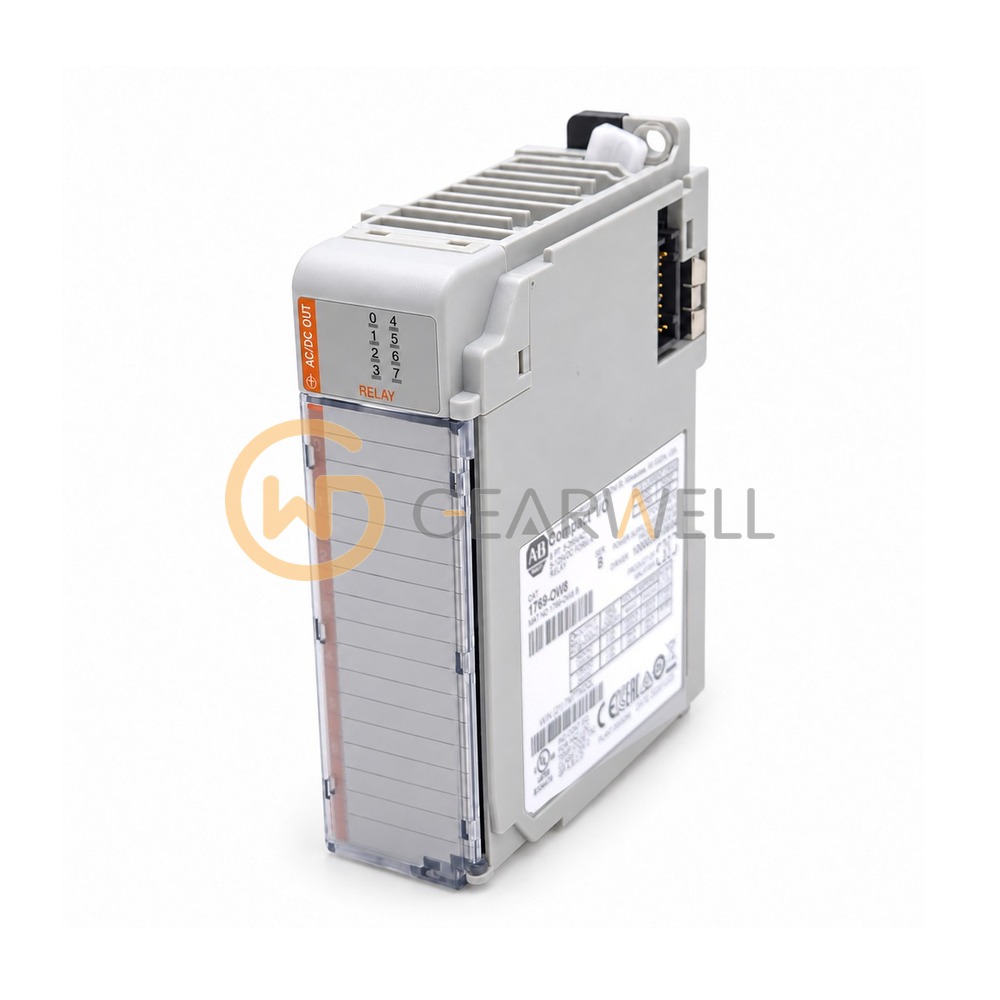

Allen-Bradley 1769-OW8 Relay Output Module
- Brand
- Allen-Bradley
- Model
- 1769-OW8
- GEARWELL SKU
- GWP-000003333
- Category
- PLCs & I/O
Key specifications
- Output type
- AC/DC relay
- Output points
- 8
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1769-OW8 is a Compact I/O relay contact module with 8 normally open AC/DC relay outputs in 2 groups of 4 points for 5…265V AC or 5…125V DC, rated 2.5 A per point and 16 A per module. It draws 125 mA at 5.1V and 100 mA at 24V from the bus and has a power supply distance rating of 8 modules. Compact I/O modules lock together with a tongue-and-groove design and an integrated bus connector, mount on a DIN rail or panel, and work with 1769 CompactLogix controllers, as expansion I/O for a MicroLogix 1500 controller, or with a 1769-ADN DeviceNet or 1769-AENTR EtherNet/IP adapter; the module is rated for 0…60 °C (32…140 °F) operation.
Technical reference
| Product name | Allen-Bradley 1769-OW8 Relay Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769-OW8 |
| Category | PLCs & I/O |
| Output type | AC/DC relay |
| Output points | 8 |
