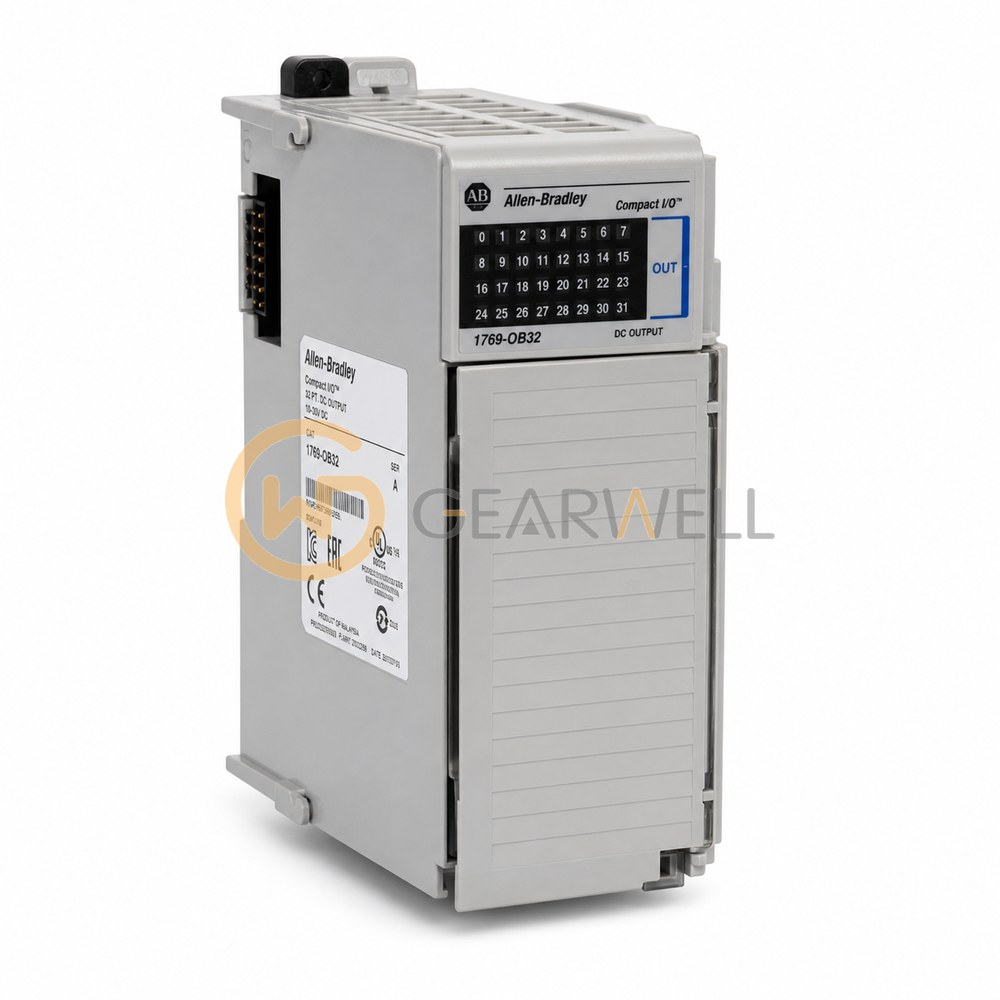

Allen-Bradley 1769-OB32 Compact I/O 32-Point 24 V DC Sourcing Output Module
- Brand
- Allen-Bradley
- Model
- 1769-OB32
- GEARWELL SKU
- GWP-000001945
- Category
- PLCs & I/O
Key specifications
- Nominal output voltage
- 24 V DC
- Output-to-bus isolation
- 1200 V AC or 1697 V DC for 1 s, qualification test; 75 V DC working voltage
- Maximum bus current draw
- 300 mA at 5.1 V DC
- Maximum output delay
- Turn-on 0.1 ms; turn-off 1 ms, resistive load
- Operating output voltage
- 20.4-26.4 V DC, sourcing
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1769-OB32 is a Compact I/O output module with 32 sourcing 24V DC solid-state outputs in 2 groups of 16 points, an operating range of 20.4…26.4V DC and up to 0.5 A per point at 60 °C. It draws 300 mA at 5.1V from the bus and has a power supply distance rating of 6 modules. Compact I/O modules lock together with a tongue-and-groove design and an integrated bus connector, mount on a DIN rail or panel, and work with 1769 CompactLogix controllers, as expansion I/O for a MicroLogix 1500 controller, or with a 1769-ADN DeviceNet or 1769-AENTR EtherNet/IP adapter; the module is rated for 0…60 °C (32…140 °F) operation.
Technical reference
| Product name | Allen-Bradley 1769-OB32 Compact I/O 32-Point 24 V DC Sourcing Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769-OB32 |
| Category | PLCs & I/O |
| Nominal output voltage | 24 V DC |
| Output-to-bus isolation | 1200 V AC or 1697 V DC for 1 s, qualification test; 75 V DC working voltage |
| Maximum bus current draw | 300 mA at 5.1 V DC |
| Maximum output delay | Turn-on 0.1 ms; turn-off 1 ms, resistive load |
| Operating output voltage | 20.4-26.4 V DC, sourcing |
| Continuous current per output | 1 A at 30 deg C; 0.5 A at 60 deg C |
| Output channels | 32; 16 outputs per common group |
| Power supply distance rating | 6 modules |
