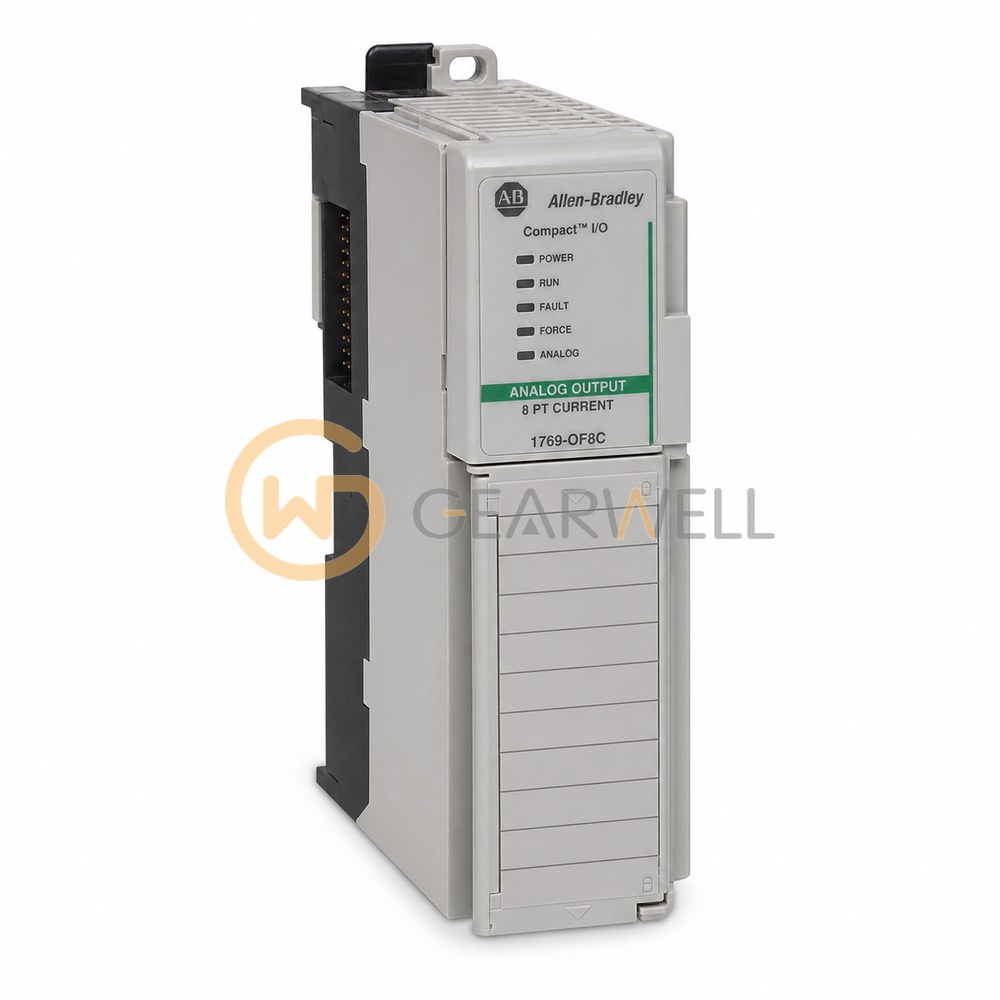

Allen-Bradley 1769-OF8C Compact I/O 8-Channel Analog Current Output Module
- Brand
- Allen-Bradley
- Model
- 1769-OF8C
- GEARWELL SKU
- GWP-000001137
- Category
- PLCs & I/O
Key specifications
- Depth
- 87 mm
- Height
- 118 mm; 138 mm including mounting tabs
- Isolation test and working voltage
- 500 V AC or 710 V DC for 60 s, qualification test, input/output group to bus; 30 V AC/DC working voltage
- Output resolution
- 16 bits unipolar
- Output ranges
- 0-20 mA and 4-20 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1769-OF8C is a Compact I/O analog output module with 8 single-ended current outputs for 0…20 mA and 4…20 mA, with a resolution of 15.91 bits on the 0…20 mA range, a resistive load of 0…500 Ω and a conversion rate of 5 ms for all channels. It has a power supply distance rating of 8 modules. Compact I/O modules lock together with a tongue-and-groove design and an integrated bus connector, mount on a DIN rail or panel, and work with 1769 CompactLogix controllers, as expansion I/O for a MicroLogix 1500 controller, or with a 1769-ADN DeviceNet or 1769-AENTR EtherNet/IP adapter; the module is rated for 0…60 °C (32…140 °F) operation.
Technical reference
| Product name | Allen-Bradley 1769-OF8C Compact I/O 8-Channel Analog Current Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769-OF8C |
| Category | PLCs & I/O |
| Depth | 87 mm |
| Height | 118 mm; 138 mm including mounting tabs |
| Isolation test and working voltage | 500 V AC or 710 V DC for 60 s, qualification test, input/output group to bus; 30 V AC/DC working voltage |
| Output resolution | 16 bits unipolar |
| Output ranges | 0-20 mA and 4-20 mA |
| Output conversion time | 5 ms maximum, all channels |
| Output load resistance | 0-500 ohm, including wire resistance |
| Channels | 8 single-ended current outputs |
| Power supply distance rating | 8 modules |
