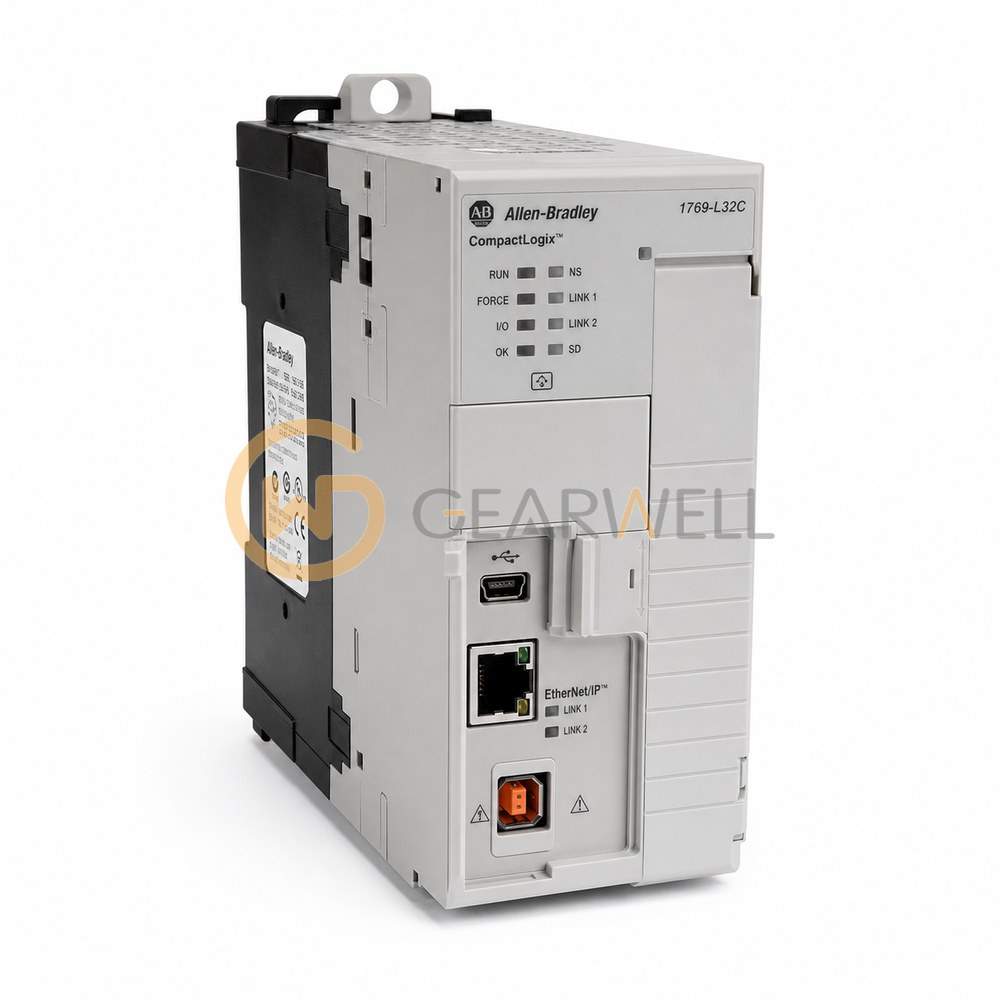

Allen-Bradley 1769-L32C CompactLogix 750 KB ControlNet PLC Controller
- Brand
- Allen-Bradley
- Model
- 1769-L32C
- GEARWELL SKU
- GWP-000000495
- Category
- PLCs & I/O
Key specifications
- Maximum I/O banks
- 3
- Mounting
- DIN rail or panel
- Maximum local I/O modules
- 16
- User memory
- 750 KB
- Product type
- CompactLogix ControlNet controller
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1769-L32C is a 1769 modular CompactLogix controller with 750 KB of user memory, one ControlNet port and one RS-232 serial port (DF1 or ASCII), supporting as many as 16 1769 Compact I/O modules. 1769 modular CompactLogix L3x controllers use 1769 Compact I/O in as many as three banks, take a 1784-CF128 CompactFlash card for nonvolatile memory and use a 1769-BA lithium battery; the controller must be the leftmost module in the first bank, with a power supply distance rating of 4 modules.
Technical reference
| Product name | Allen-Bradley 1769-L32C CompactLogix 750 KB ControlNet PLC Controller |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769-L32C |
| Category | PLCs & I/O |
| Maximum I/O banks | 3 |
| Mounting | DIN rail or panel |
| Maximum local I/O modules | 16 |
| User memory | 750 KB |
| Product type | CompactLogix ControlNet controller |
| Maximum backplane current | 650 mA at 5 V DC; 40 mA at 24 V DC |
| Optional nonvolatile memory | 1784-CF128 Industrial CompactFlash |
| Communication ports | Isolated RS-232; ControlNet channel A; temporary programming NAP |
| Operating temperature | 0-60 deg C |
| Power supply distance rating | 4 modules |
