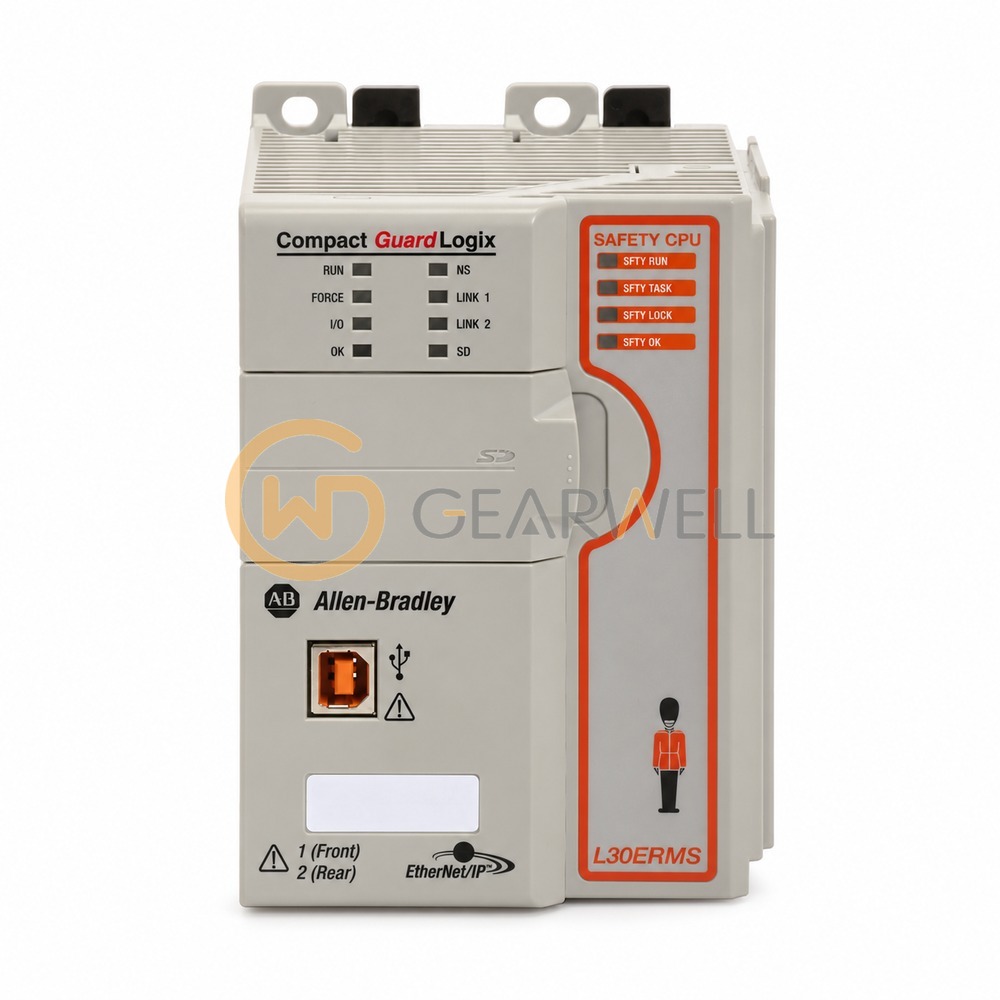

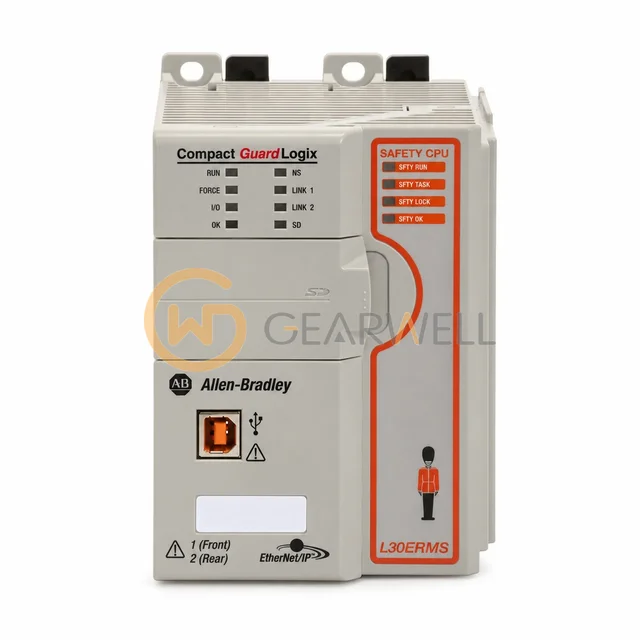

Allen-Bradley 1769-L30ERMS Compact GuardLogix 5370 Safety Controller
- Brand
- Allen-Bradley
- Model
- 1769-L30ERMS
- GEARWELL SKU
- GWP-000000478
- Category
- PLCs & I/O
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1769-L30ERMS is a Compact GuardLogix 5370 safety controller with 1 MB of standard and 0.5 MB of safety memory, up to 16 EtherNet/IP nodes, integrated motion over EtherNet/IP for as many as 4 axes and as many as 8 1769 Compact I/O modules. It is TÜV certified for functional safety and capable of SIL 3; the safety task uses relay ladder. CompactLogix 5370 controllers have two Ethernet ports on an embedded switch that share one IP address, a USB port for temporary connection, a 1784-SD1 card with 1 Gb of memory shipped with the controller, and support relay ladder, structured text, function block and SFC programming.
Technical reference
| Product name | Allen-Bradley 1769-L30ERMS Compact GuardLogix 5370 Safety Controller |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769-L30ERMS |
| Category | PLCs & I/O |
