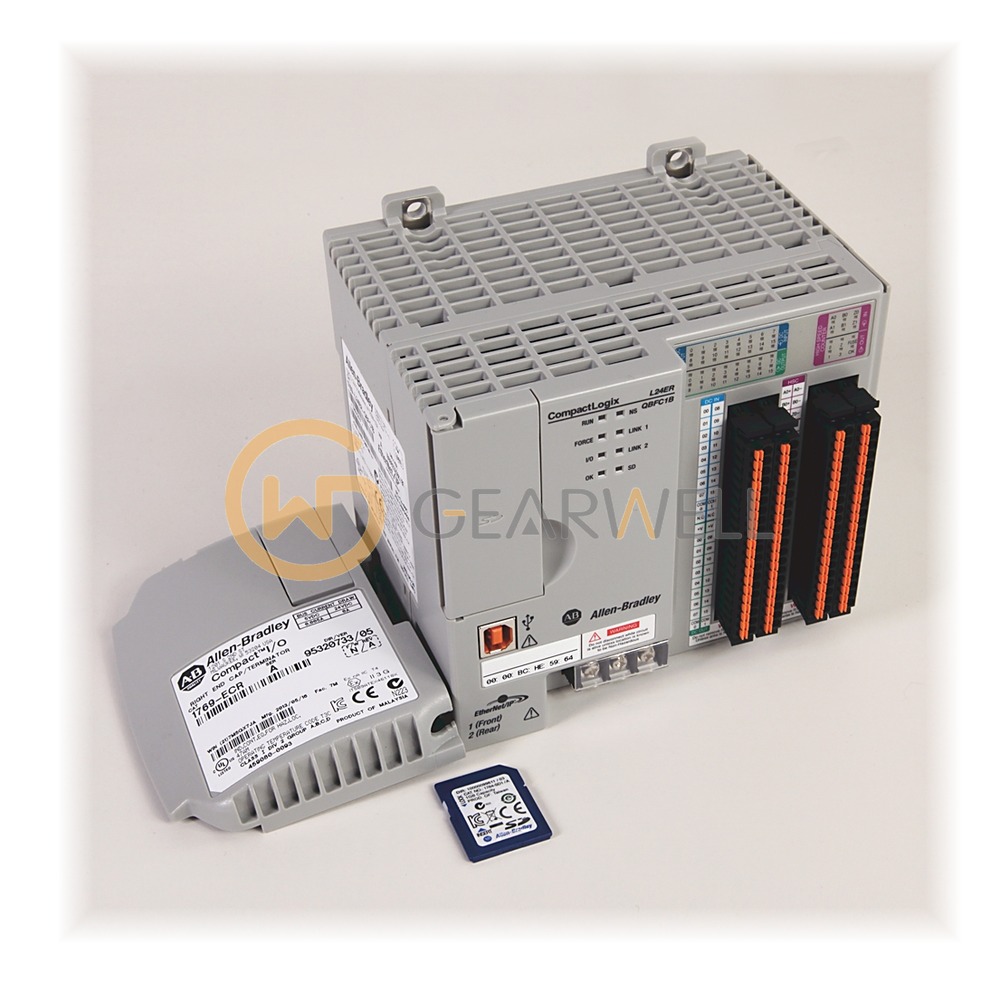

Allen-Bradley 1769-L24ER-QBFC1B CompactLogix 5370 Controller
- Brand
- Allen-Bradley
- Model
- 1769-L24ER-QBFC1B
- GEARWELL SKU
- GWP-000004398
- Category
- PLCs & I/O
Key specifications
- Memory
- 750 KB
- Digital inputs
- 16 DC
- Supply voltage
- 24 V DC
- Digital outputs
- 16 DC
- EtherNet/IP ports
- 2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1769-L24ER-QBFC1B is a CompactLogix 5370 L2 controller with 750 KB of user memory and up to 8 EtherNet/IP nodes. The embedded I/O has 16 sinking/sourcing 24V DC inputs, 16 sourcing 24V DC outputs, 4 high-speed counters with 4 counter outputs, 4 universal analog inputs and 2 analog outputs, and as many as 4 1769 Compact I/O modules can be added as local expansion modules. CompactLogix 5370 controllers have two Ethernet ports on an embedded switch that share one IP address, a USB port for temporary connection, a 1784-SD1 card with 1 Gb of memory shipped with the controller, and support relay ladder, structured text, function block and SFC programming.
Technical reference
| Product name | Allen-Bradley 1769-L24ER-QBFC1B CompactLogix 5370 Controller |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769-L24ER-QBFC1B |
| Category | PLCs & I/O |
| Memory | 750 KB |
| Digital inputs | 16 DC |
| Supply voltage | 24 V DC |
| Digital outputs | 16 DC |
| EtherNet/IP ports | 2 |
