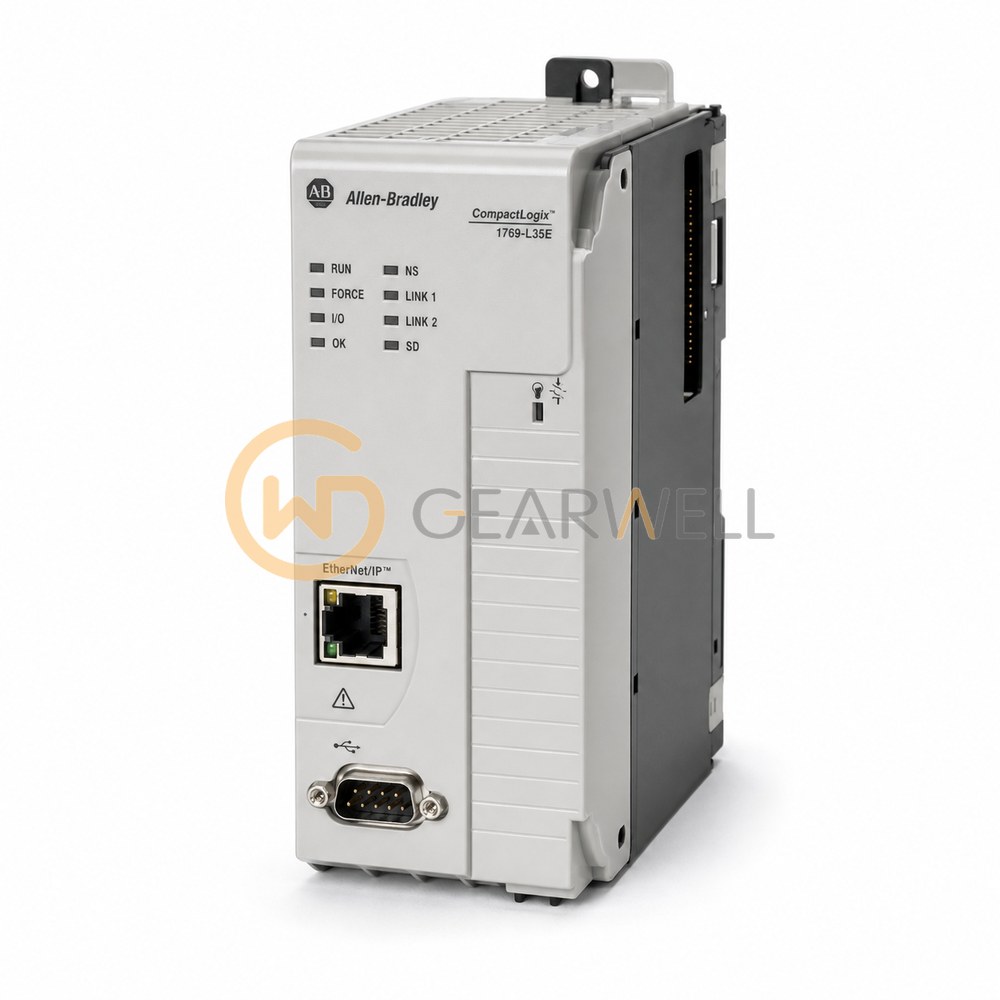

Allen-Bradley 1769-L35E CompactLogix 1.5 MB EtherNet/IP PLC Controller
- Brand
- Allen-Bradley
- Model
- 1769-L35E
- GEARWELL SKU
- GWP-000000979
- Category
- PLCs & I/O
Key specifications
- User memory
- 1.5 MB
- Port isolation
- 30 V continuous basic insulation; tested at 710 V DC for 60 s, RS-232 to system and Ethernet to system
- Product type
- CompactLogix 1.5 MB EtherNet/IP controller
- Communication ports
- EtherNet/IP (10/100 Mbps) and isolated RS-232
- Manufacturer catalog lifecycle (checked 2026-10-07)
- Discontinued
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1769-L35E is a 1769 modular CompactLogix controller with 1.5 MB of user memory, one 10/100 EtherNet/IP port and one RS-232 serial port (DF1 or ASCII), supporting as many as 30 1769 Compact I/O modules. 1769 modular CompactLogix L3x controllers use 1769 Compact I/O in as many as three banks, take a 1784-CF128 CompactFlash card for nonvolatile memory and use a 1769-BA lithium battery; the controller must be the leftmost module in the first bank, with a power supply distance rating of 4 modules.
Technical reference
| Product name | Allen-Bradley 1769-L35E CompactLogix 1.5 MB EtherNet/IP PLC Controller |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769-L35E |
| Category | PLCs & I/O |
| User memory | 1.5 MB |
| Port isolation | 30 V continuous basic insulation; tested at 710 V DC for 60 s, RS-232 to system and Ethernet to system |
| Product type | CompactLogix 1.5 MB EtherNet/IP controller |
| Communication ports | EtherNet/IP (10/100 Mbps) and isolated RS-232 |
| Manufacturer catalog lifecycle (checked 2026-10-07) | Discontinued |
| Maximum I/O banks | 3 |
| Maximum local I/O modules | 30 |
| Maximum backplane current | 660 mA at 5 V DC; 90 mA at 24 V DC |
| Operating temperature | 0-60 deg C |
| Power supply distance rating | 4 modules |
