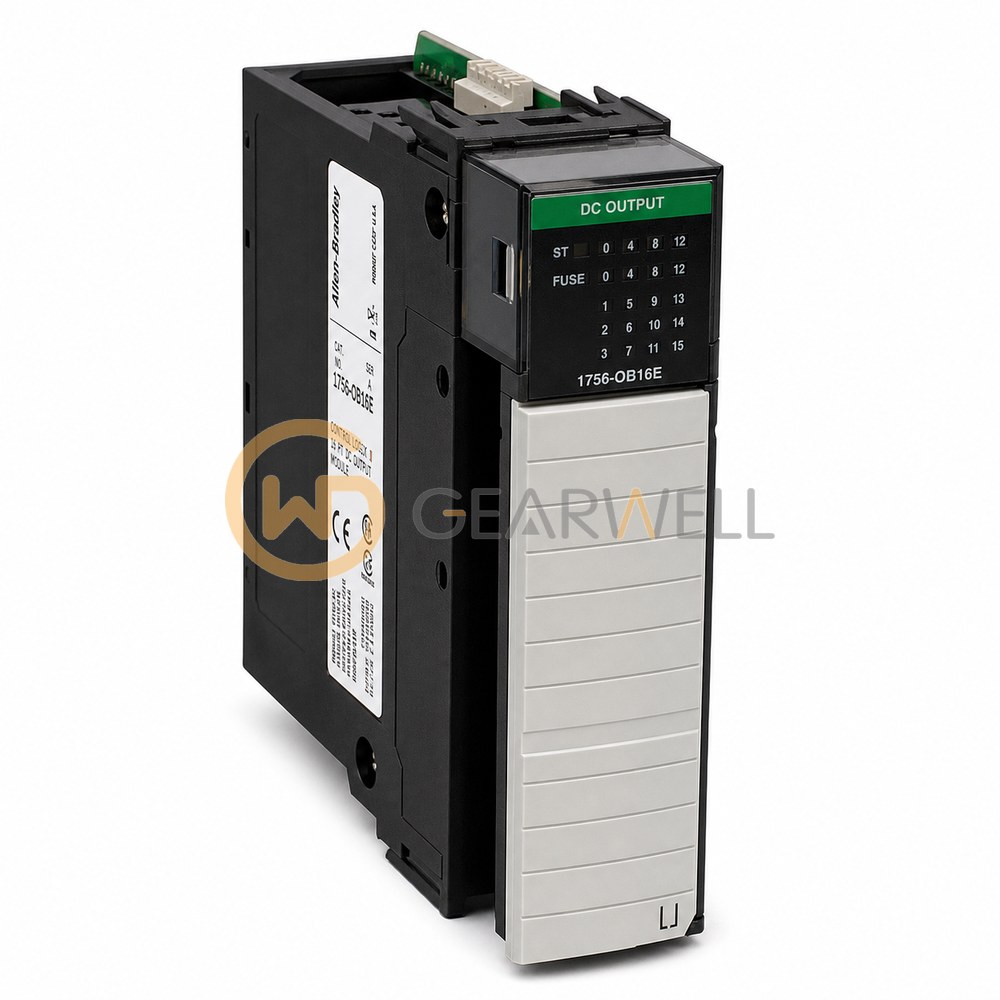

Allen-Bradley 1756OB16E ControlLogix 16-Point Electronically Fused DC Output Module
- Brand
- Allen-Bradley
- Model
- 1756OB16E
- GEARWELL SKU
- GWP-000001017
- Category
- PLCs & I/O
Key specifications
- Isolation
- 250 V continuous between groups of 8 outputs
- Product type
- ControlLogix 16 Point D/O Module
- Terminal count
- 20-pin
- Lifecycle status
- Active
- Number Of Channels
- 16
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-OB16E is a ControlLogix DC (10…31.2V) electronically fused output module for the 1756 chassis. It has 16 electronically fused sourcing outputs in two groups of eight for 12/24V DC loads, with an operating range of 10…31.2V DC, up to 1 A per point and 8 A per module at 60 °C (140 °F). It draws 250 mA at 5.1V DC and 2 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBNH or 1756-TBSH removable terminal block, which is ordered separately. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756OB16E ControlLogix 16-Point Electronically Fused DC Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756OB16E |
| Category | PLCs & I/O |
| Isolation | 250 V continuous between groups of 8 outputs |
| Product type | ControlLogix 16 Point D/O Module |
| Terminal count | 20-pin |
| Lifecycle status | Active |
| Number Of Channels | 16 |
| Product description | 10-31 VDC Electronically Fused Output 16 Pts (20 Pin) |
| Operating voltage range | 10-31 V DC |
