Allen-Bradley 1756OB16IEF ControlLogix 16-Point Fast DC Output Module
- Brand
- Allen-Bradley
- Model
- 1756OB16IEF
- GEARWELL SKU
- GWP-000001511
- Category
- PLCs & I/O
Key specifications
- Product type
- ControlLogix 16 Point Digital Output
- Communication
- Ultra Fast On,Off times(15uS nominal)
- Output points
- 16
- Terminal count
- 36-pin
- Lifecycle status
- Active
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

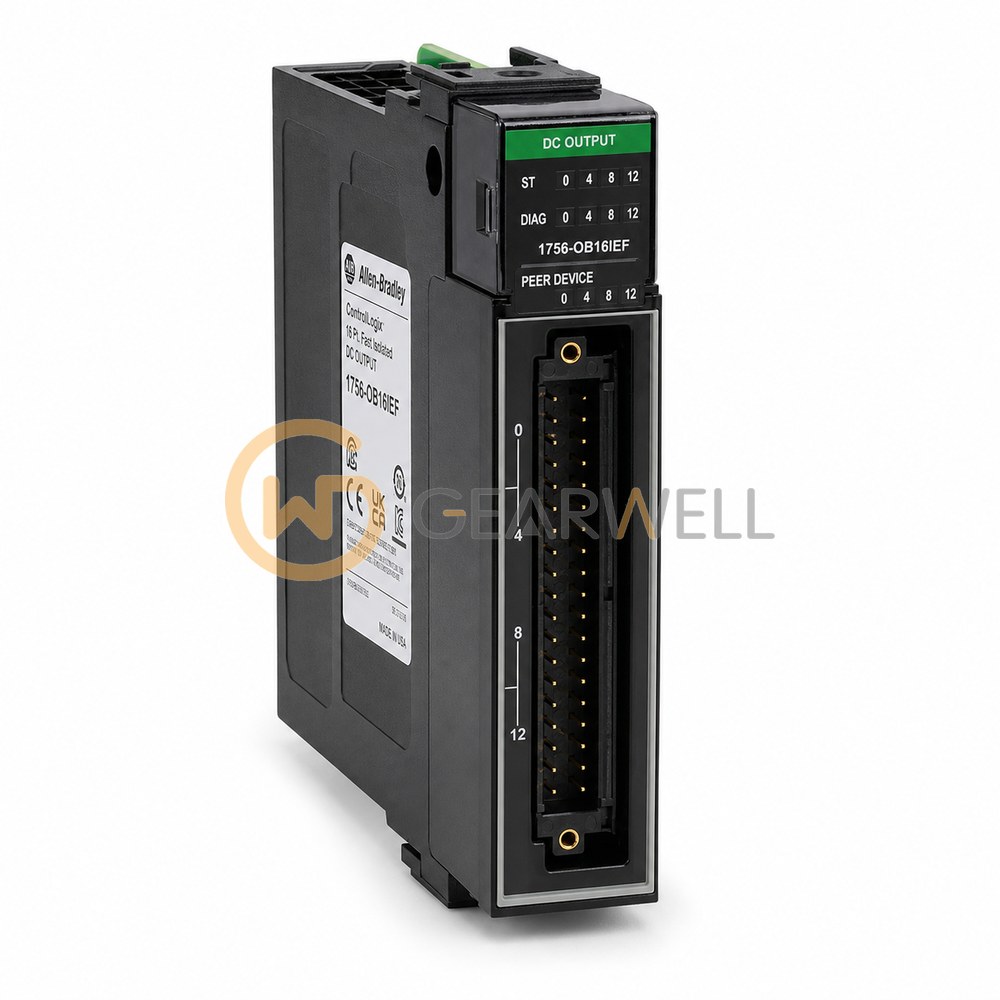

The Allen-Bradley 1756-OB16IEF is a ControlLogix DC (10…30V) electronically protected, sinking, or sourcing, isolated, fast output module for the 1756 chassis. It has 16 individually isolated, electronically protected fast outputs for 12/24V DC loads, wired sinking or sourcing, with an operating range of 10…30V DC and up to 1 A per point at 60 °C (140 °F); CIP Sync time stamps are supported. It draws 320 mA at 5.1V DC and 3 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756OB16IEF ControlLogix 16-Point Fast DC Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756OB16IEF |
| Category | PLCs & I/O |
| Product type | ControlLogix 16 Point Digital Output |
| Communication | Ultra Fast On,Off times(15uS nominal) |
| Output points | 16 |
| Terminal count | 36-pin |
| Lifecycle status | Active |
| Product description | 10-30 VDC Fast Isolated Peer to Peer Output with PWM 16 Pts (36 Pin) |
| Operating voltage range | 10-30 V DC |
