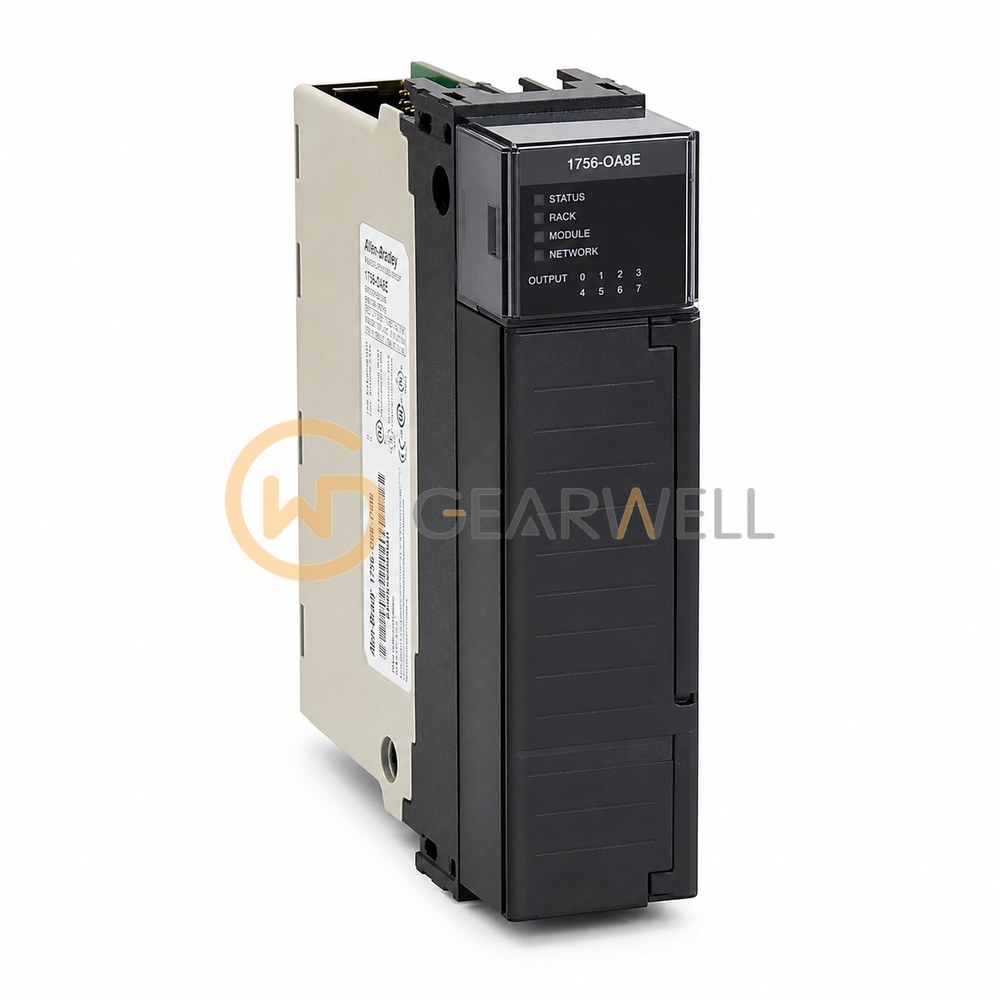

Allen-Bradley 1756OA8E ControlLogix 8-Point Electronically Fused AC Output Module
- Brand
- Allen-Bradley
- Model
- 1756OA8E
- GEARWELL SKU
- GWP-000003034
- Category
- PLCs & I/O
Key specifications
- Isolation
- 125 V continuous between groups of 4 outputs
- Product type
- ControlLogix 8 Point D/O Module
- Terminal count
- 20-pin
- Lifecycle status
- Active
- Number Of Channels
- 8
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-OA8E is a ControlLogix 120V AC electronically fused output module for the 1756 chassis. It has eight electronically fused outputs in two groups of four for 120V AC loads, with an operating range of 74…132V AC at 47…63 Hz, up to 2 A per point and 4 A per module at 60 °C (140 °F). It draws 200 mA at 5.1V DC and 250 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBNH or 1756-TBSH removable terminal block, which is ordered separately. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756OA8E ControlLogix 8-Point Electronically Fused AC Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756OA8E |
| Category | PLCs & I/O |
| Isolation | 125 V continuous between groups of 4 outputs |
| Product type | ControlLogix 8 Point D/O Module |
| Terminal count | 20-pin |
| Lifecycle status | Active |
| Number Of Channels | 8 |
| Product description | 74-132 VAC Elec Fused 2A Output 8 Pts (20 Pin) |
| Output Voltage and Current | 2 A per point at 60 °C; 74-132 V AC, 47-63 Hz |
