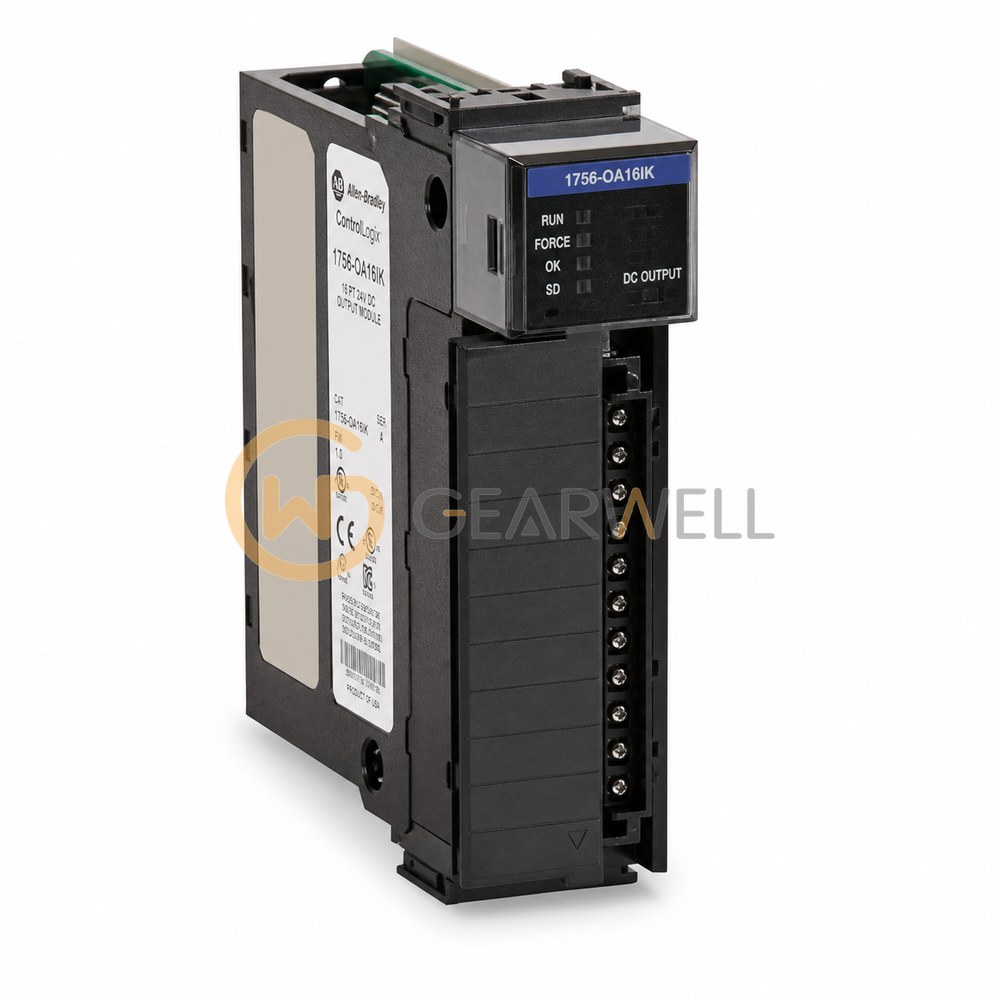

Allen-Bradley 1756OA16IK ControlLogix Conformally Coated 16-Point Isolated AC Output Module
- Brand
- Allen-Bradley
- Model
- 1756OA16IK
- GEARWELL SKU
- GWP-000003673
- Category
- PLCs & I/O
Key specifications
- Fusing
- Not protected; fused IFM recommended
- Outputs
- 16 individually isolated
- Product type
- ControlLogix isolated AC output module
- Enclosure type
- None (open-style)
- Voltage category
- 120/240 V AC, 50/60 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-OA16IK is a ControlLogix 120/240V AC isolated output module for the 1756 chassis. It has 16 individually isolated outputs for 120/240V AC loads, with an operating range of 74…265V AC at 47…63 Hz, up to 1 A per point and 4 A per module at 60 °C (140 °F). It draws 300 mA at 5.1V DC and 2.5 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. This K version adds conformal coating for harsh, corrosive environments. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756OA16IK ControlLogix Conformally Coated 16-Point Isolated AC Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756OA16IK |
| Category | PLCs & I/O |
| Fusing | Not protected; fused IFM recommended |
| Outputs | 16 individually isolated |
| Product type | ControlLogix isolated AC output module |
| Enclosure type | None (open-style) |
| Voltage category | 120/240 V AC, 50/60 Hz |
| Current per point, max | 2 A at 30 °C; 1 A at 60 °C |
| Current per module, max | 5 A at 30 °C; 4 A at 60 °C |
| Operating voltage range | 74...265 V AC, 47...63 Hz |
