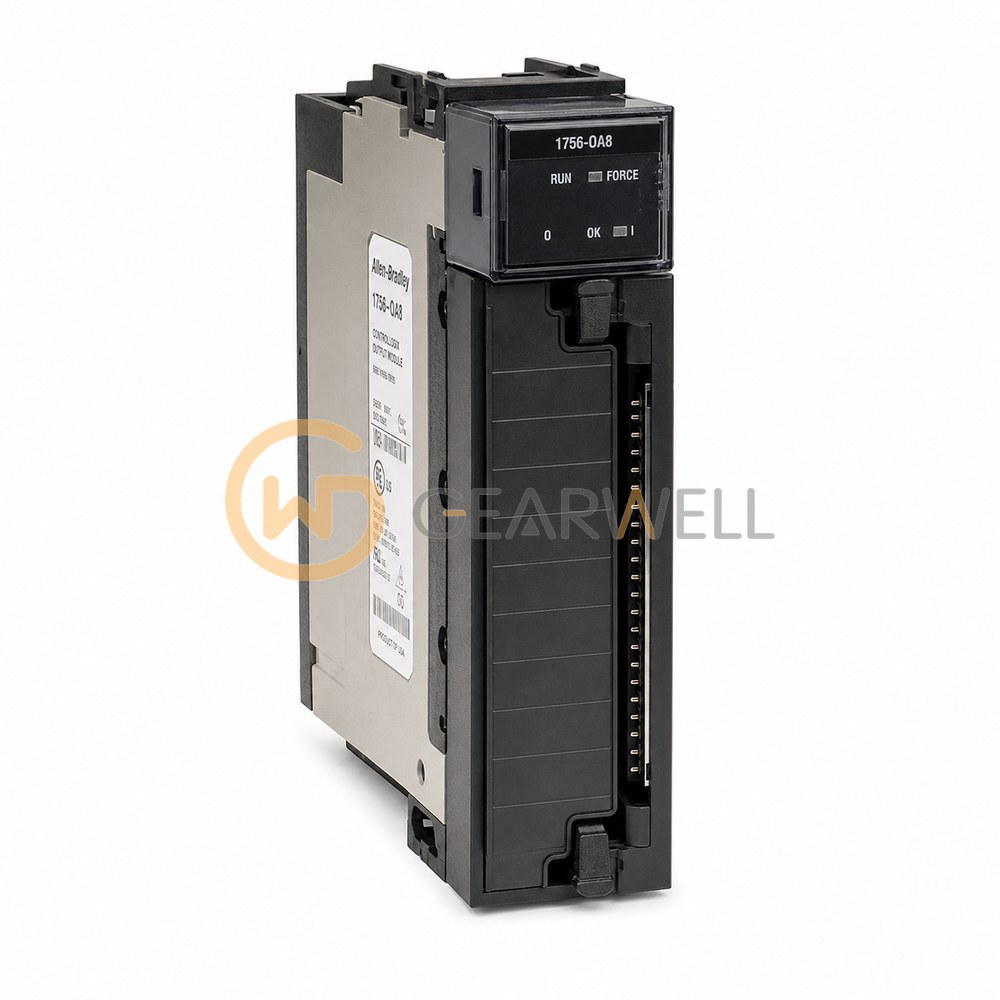

Allen-Bradley 1756OA8 ControlLogix 8-Point AC Output Module
- Brand
- Allen-Bradley
- Model
- 1756OA8
- GEARWELL SKU
- GWP-000001059
- Category
- PLCs & I/O
Key specifications
- Isolation
- 250 V continuous between groups of 4 outputs
- Product type
- ControlLogix 8 Pt D/O 120/240V AC Module
- Terminal count
- 20-pin
- Lifecycle status
- Active
- Number Of Channels
- 8
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-OA8 is a ControlLogix 120/240V AC output module for the 1756 chassis. It has eight outputs in two groups of four for 120/240V AC loads, with an operating range of 74…265V AC at 47…63 Hz, up to 2 A per point and 4 A per module at 60 °C (140 °F), and scheduled outputs synchronized to the Coordinated System Time. It draws 200 mA at 5.1V DC and 2 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBNH or 1756-TBSH removable terminal block, which is ordered separately. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756OA8 ControlLogix 8-Point AC Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756OA8 |
| Category | PLCs & I/O |
| Isolation | 250 V continuous between groups of 4 outputs |
| Product type | ControlLogix 8 Pt D/O 120/240V AC Module |
| Terminal count | 20-pin |
| Lifecycle status | Active |
| Number Of Channels | 8 |
| Product description | 74-265 VAC 2 Amp Output 8 Pts (20 Pin) |
| Output Voltage and Current | 2.0A Per Point @74-265V AC |
