Allen-Bradley 1756IB32 ControlLogix 32-Point DC Input Module
- Brand
- Allen-Bradley
- Model
- 1756IB32
- GEARWELL SKU
- GWP-000000460
- Category
- PLCs & I/O
Key specifications
- Isolation
- 250V (continuous), reinforced insulation type, inputs-to-backplane. 250V (continuous), basic insulation type, input group-to-group. No isolation between individual group inputs
- Product type
- ControlLogix 32 Pt 12/24V DC D/I Module
- Terminal count
- 36-pin
- Lifecycle status
- Active
- Number Of Channels
- 32
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

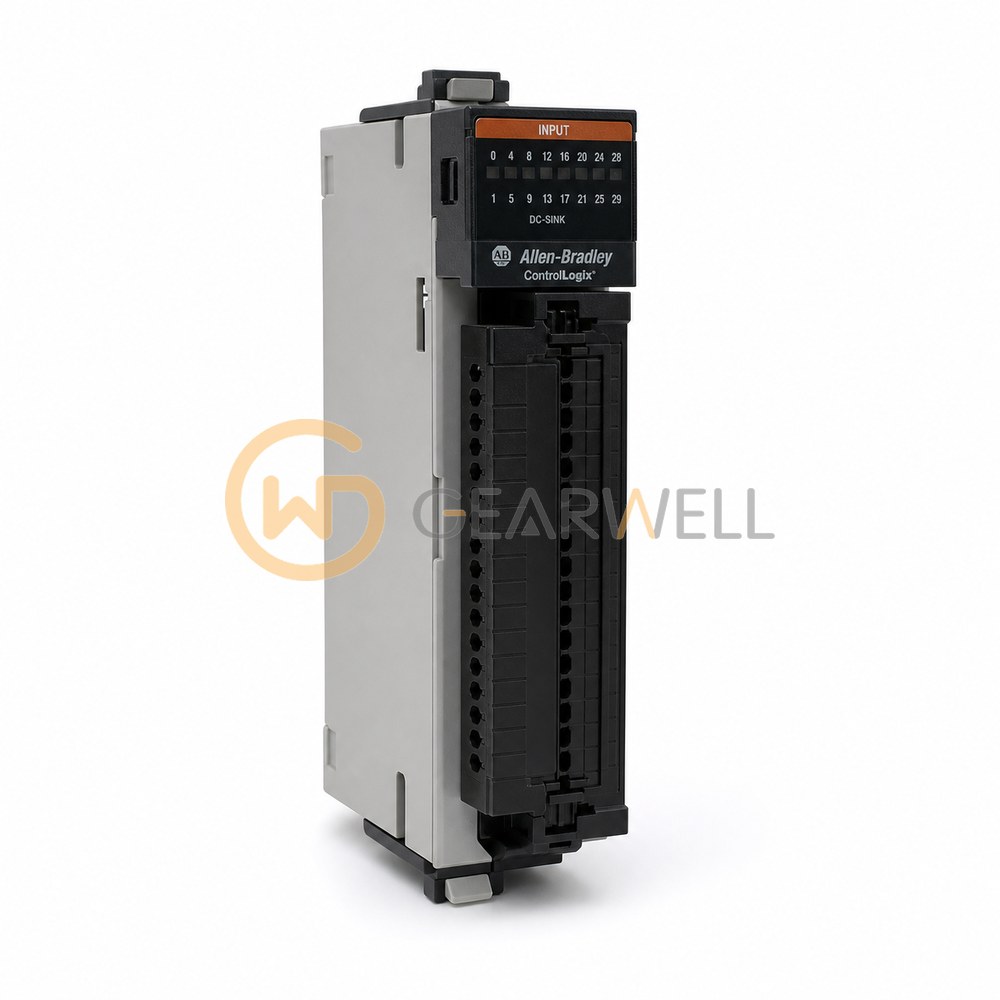

The Allen-Bradley 1756-IB32 is a ControlLogix DC (10…31.2V) input module for the 1756 chassis. It has 32 sinking inputs in two groups of 16 for 12/24V DC signals, with an operating range of 10…31.2V DC and input time stamps to ±200 µs. It draws 120 mA at 5.1V DC and 2 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756IB32 ControlLogix 32-Point DC Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756IB32 |
| Category | PLCs & I/O |
| Isolation | 250V (continuous), reinforced insulation type, inputs-to-backplane. 250V (continuous), basic insulation type, input group-to-group. No isolation between individual group inputs |
| Product type | ControlLogix 32 Pt 12/24V DC D/I Module |
| Terminal count | 36-pin |
| Lifecycle status | Active |
| Number Of Channels | 32 |
| Product description | 10-31 VDC Input 32 Pts (36 Pin) |
| Operating voltage range | 10-31 V DC |
