Allen-Bradley 1756IB16ISOE ControlLogix 16-Point Sequence-of-Events Input Module
- Brand
- Allen-Bradley
- Model
- 1756IB16ISOE
- GEARWELL SKU
- GWP-000004434
- Category
- PLCs & I/O
Key specifications
- Isolation
- 250 V continuous between inputs
- Product type
- ControlLogix 16 Isolated Point Module
- Terminal count
- 36-pin
- Lifecycle status
- Active
- Number Of Channels
- 16
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

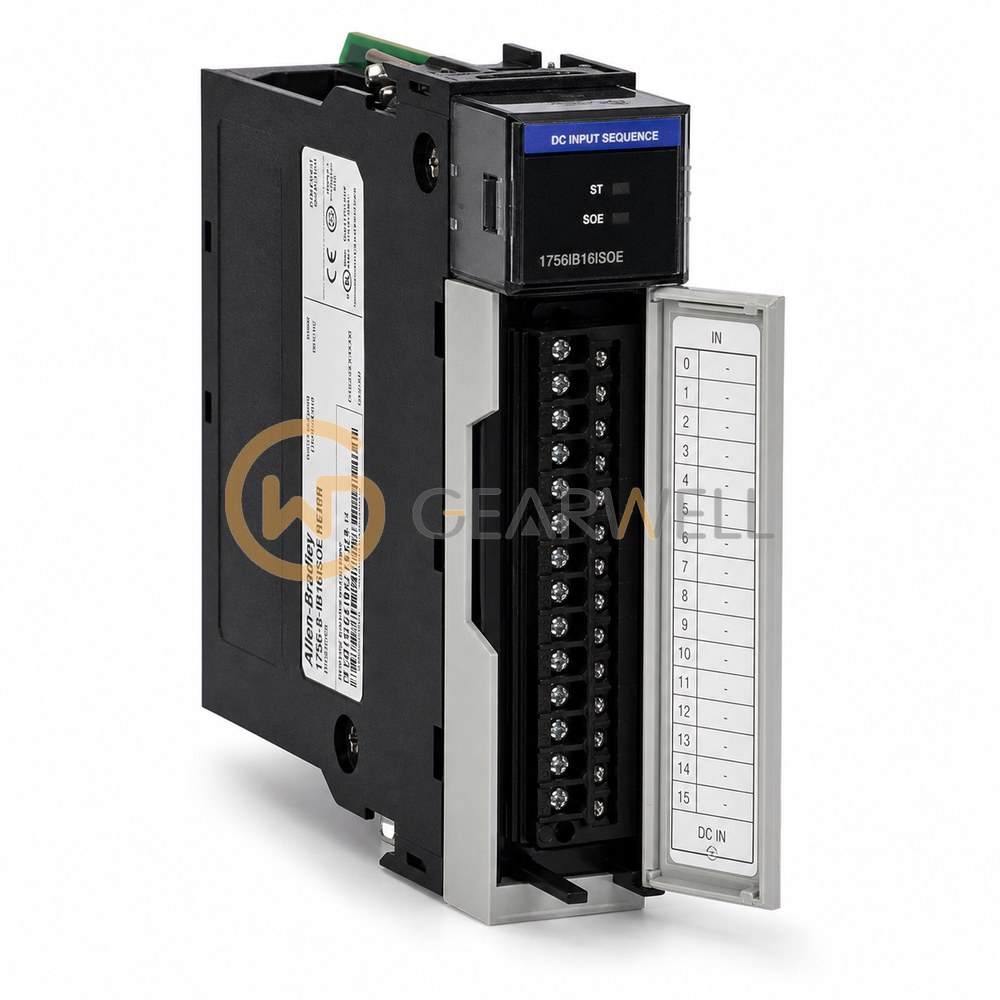

The Allen-Bradley 1756-IB16ISOE is a ControlLogix DC (10…55V) sequence of events input module for the 1756 chassis. It has 16 individually isolated sequence of events inputs for 24/48V DC signals, wired sinking or sourcing, with an operating range of 10…55V DC and input time stamps to ±100 µs. It draws 320 mA at 5.1V DC and 2 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756IB16ISOE ControlLogix 16-Point Sequence-of-Events Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756IB16ISOE |
| Category | PLCs & I/O |
| Isolation | 250 V continuous between inputs |
| Product type | ControlLogix 16 Isolated Point Module |
| Terminal count | 36-pin |
| Lifecycle status | Active |
| Number Of Channels | 16 |
| Product description | 16 individually isolated sequence-of-events inputs; 10-55 V DC; 36-pin terminal interface |
| Timestamp accuracy | ±100 µs |
| Operating voltage range | 10-55 V DC |
