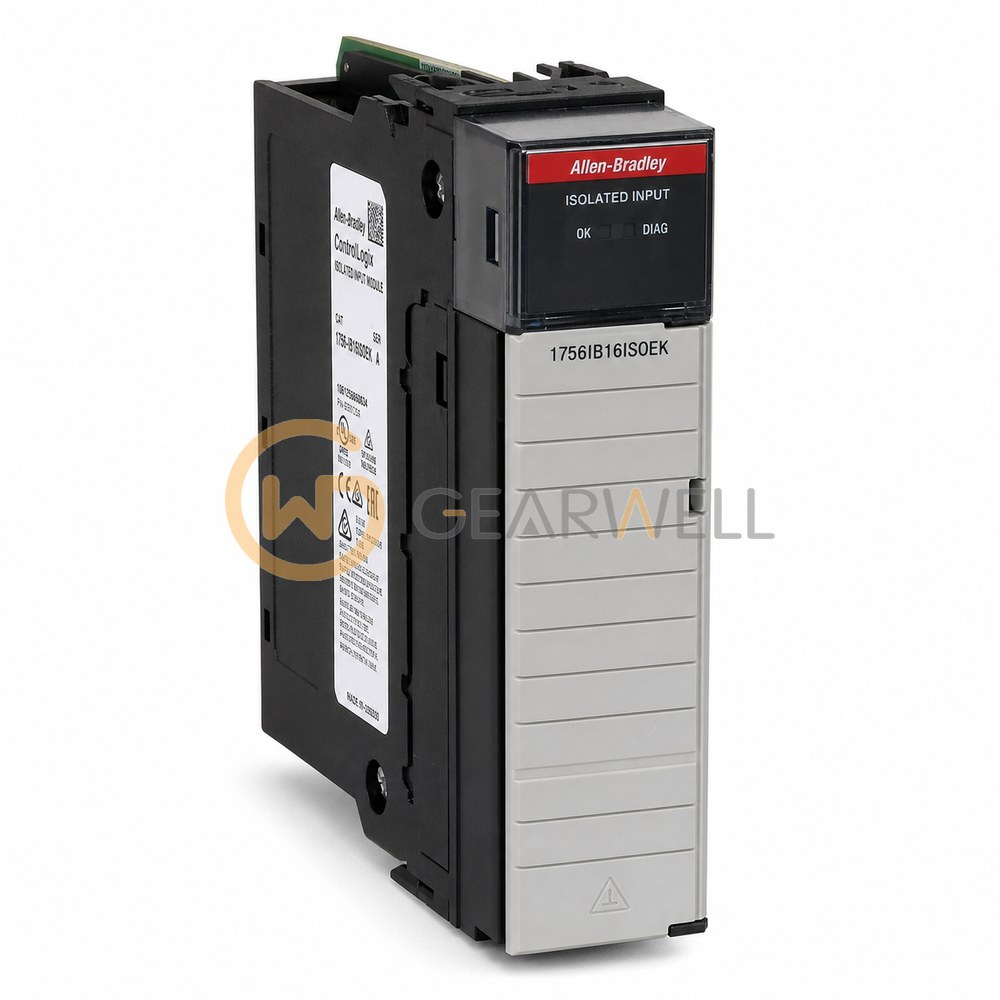

Allen-Bradley 1756IB16ISOEK ControlLogix Conformally Coated 16-Point Sequence-of-Events Input Module
- Brand
- Allen-Bradley
- Model
- 1756IB16ISOEK
- GEARWELL SKU
- GWP-000000740
- Category
- PLCs & I/O
Key specifications
- Type
- Digital Input
- Display
- Input and Communication,Status, Module Health
- Mounting
- Chassis
- Enclosure
- None (open-style)
- Isolation
- 250 V continuous between,inputs
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-IB16ISOEK is a ControlLogix DC (10…55V) sequence of events input module for the 1756 chassis. It has 16 individually isolated sequence of events inputs for 24/48V DC signals, wired sinking or sourcing, with an operating range of 10…55V DC and input time stamps to ±100 µs. It draws 320 mA at 5.1V DC and 2 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. This K version adds conformal coating for harsh, corrosive environments. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756IB16ISOEK ControlLogix Conformally Coated 16-Point Sequence-of-Events Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756IB16ISOEK |
| Category | PLCs & I/O |
| Type | Digital Input |
| Display | Input and Communication,Status, Module Health |
| Mounting | Chassis |
| Enclosure | None (open-style) |
| Isolation | 250 V continuous between,inputs |
| Sub Brand | ControlLogix |
| Input Voltage | 10-55V DC |
| Terminal count | 36-pin |
| Number Of Channels | 16 |
| Timestamp accuracy | ±100 µs |
