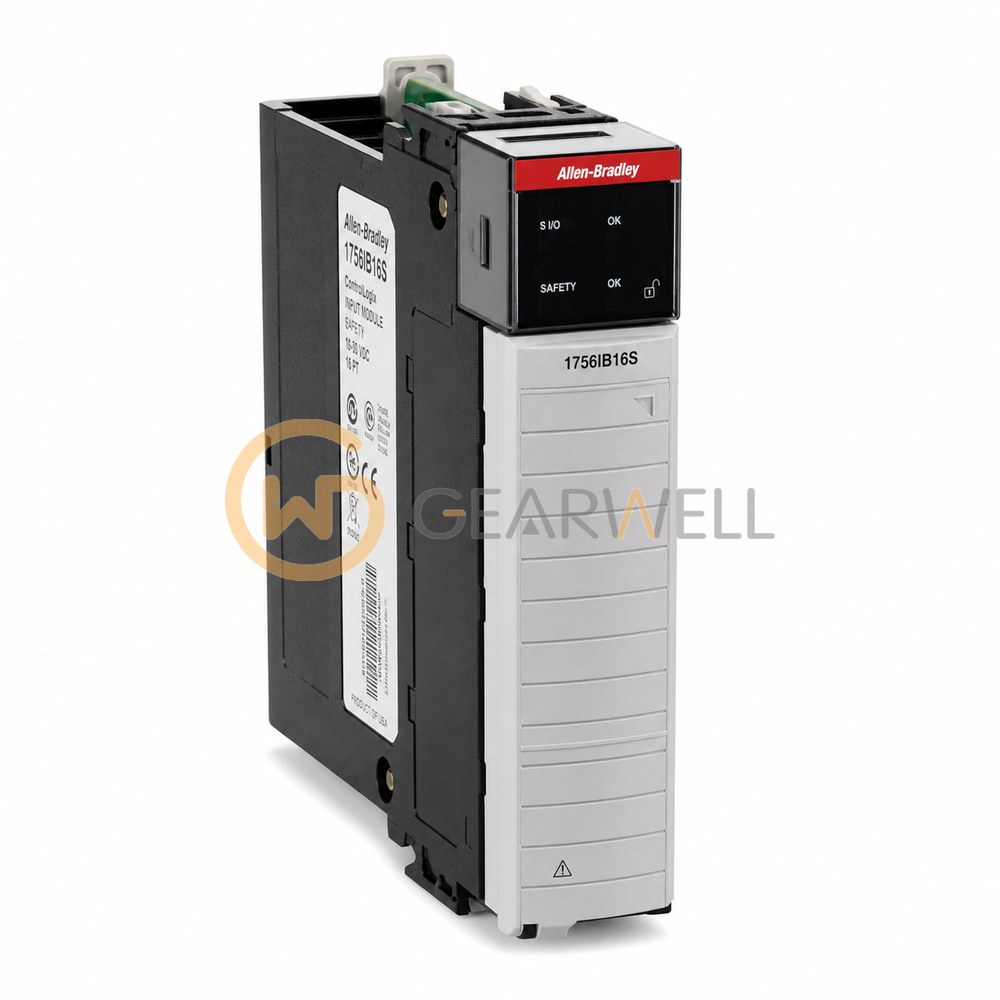

Allen-Bradley 1756IB16S ControlLogix 16-Point Safety Input Module
- Brand
- Allen-Bradley
- Model
- 1756IB16S
- GEARWELL SKU
- GWP-000004045
- Category
- PLCs & I/O
Key specifications
- Safety inputs
- 16
- Product type
- ControlLogix safety input module
- Safety integrity
- Up to Cat. 4 / PLe and SIL 3, subject to the specified wiring, diagnostics and validated safety application
- Test output current per point
- 0.2 A
- Safety reaction time
- 6 ms at RPI of 2 ms
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-IB16S is a ControlLogix DC (18…32V) sinking safety input module for the 1756 chassis. It is a safety module with 16 sinking safety inputs in one group and eight test outputs, using 18…32V DC SELV/PELV field power. Rockwell rates it for use up to Cat. 4 / PLe to EN ISO 13849-1 and SIL 3 to IEC 61508, with a safety reaction time of 6 ms at an RPI of 2 ms. It draws 280 mA at 5.1V DC from the backplane. Field wiring goes through a 1756-TBCHS or 1756-TBS6HS (safety RTB) removable terminal block, which is ordered separately. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756IB16S ControlLogix 16-Point Safety Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756IB16S |
| Category | PLCs & I/O |
| Safety inputs | 16 |
| Product type | ControlLogix safety input module |
| Safety integrity | Up to Cat. 4 / PLe and SIL 3, subject to the specified wiring, diagnostics and validated safety application |
| Test output current per point | 0.2 A |
| Safety reaction time | 6 ms at RPI of 2 ms |
| Off-state voltage, max | 5 V DC |
| On-state voltage range | 10...32 V DC |
| On-state current, nominal | 2.5 mA at 24 V |
