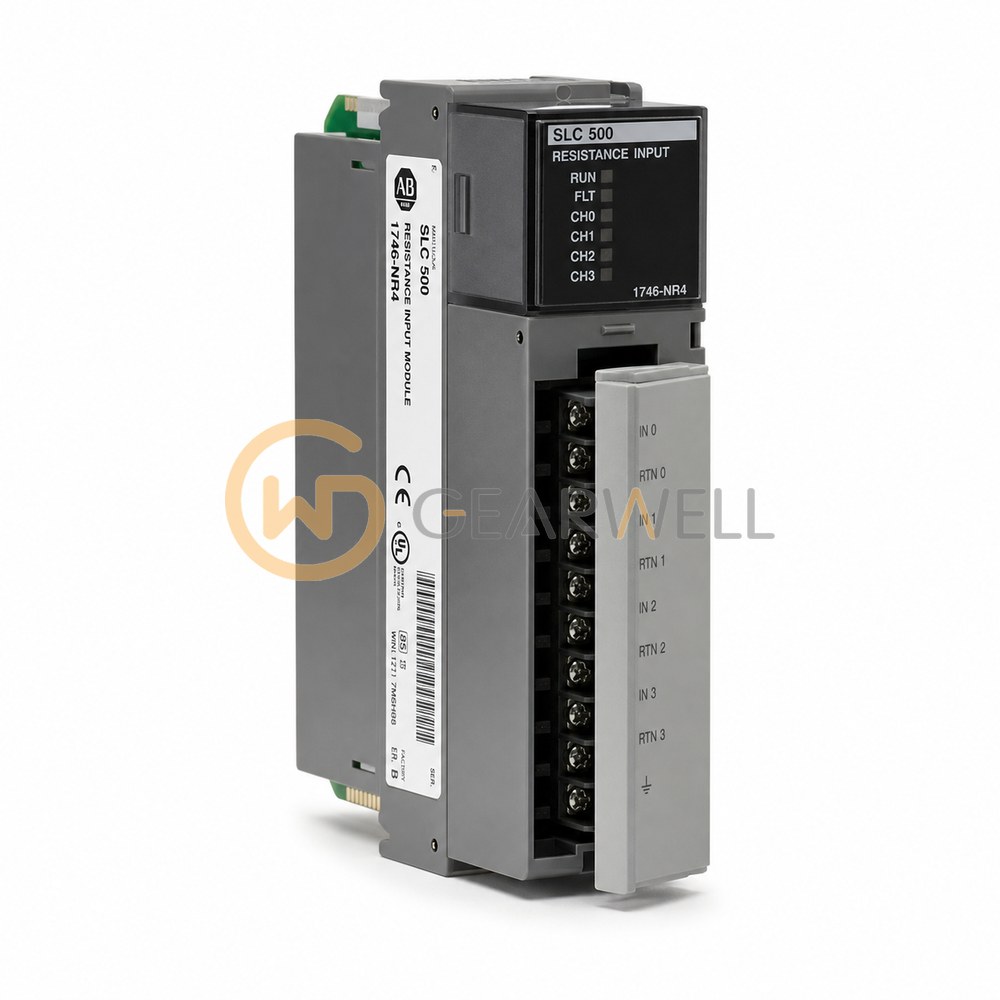

Allen-Bradley 1746-NR4 SLC 500 RTD/Resistance Input Module
- Brand
- Allen-Bradley
- Model
- 1746-NR4
- GEARWELL SKU
- GWP-000001399
- Category
- PLCs & I/O
Key specifications
- Input type
- RTD / resistance
- Product type
- SLC 500 RTD/resistance input module
- Input channels
- 4
- Recommended Compact 5000 replacement
- 5069-IY4
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1746-NR4 is a 4-channel RTD and resistance input module. It takes 100, 200, 500 and 1000 Ω platinum RTDs (385 and 3916), 10 Ω copper, 120 Ω nickel (618 and 672) and 604 Ω nickel-iron RTDs, plus 150, 500, 1000 and 3000 Ω resistance inputs, and scales in °C, °F or ohms. It draws 50 mA at 5V and 50 mA at 24V from the backplane.
Technical reference
| Product name | Allen-Bradley 1746-NR4 SLC 500 RTD/Resistance Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1746-NR4 |
| Category | PLCs & I/O |
| Input type | RTD / resistance |
| Product type | SLC 500 RTD/resistance input module |
| Input channels | 4 |
| Recommended Compact 5000 replacement | 5069-IY4 |
