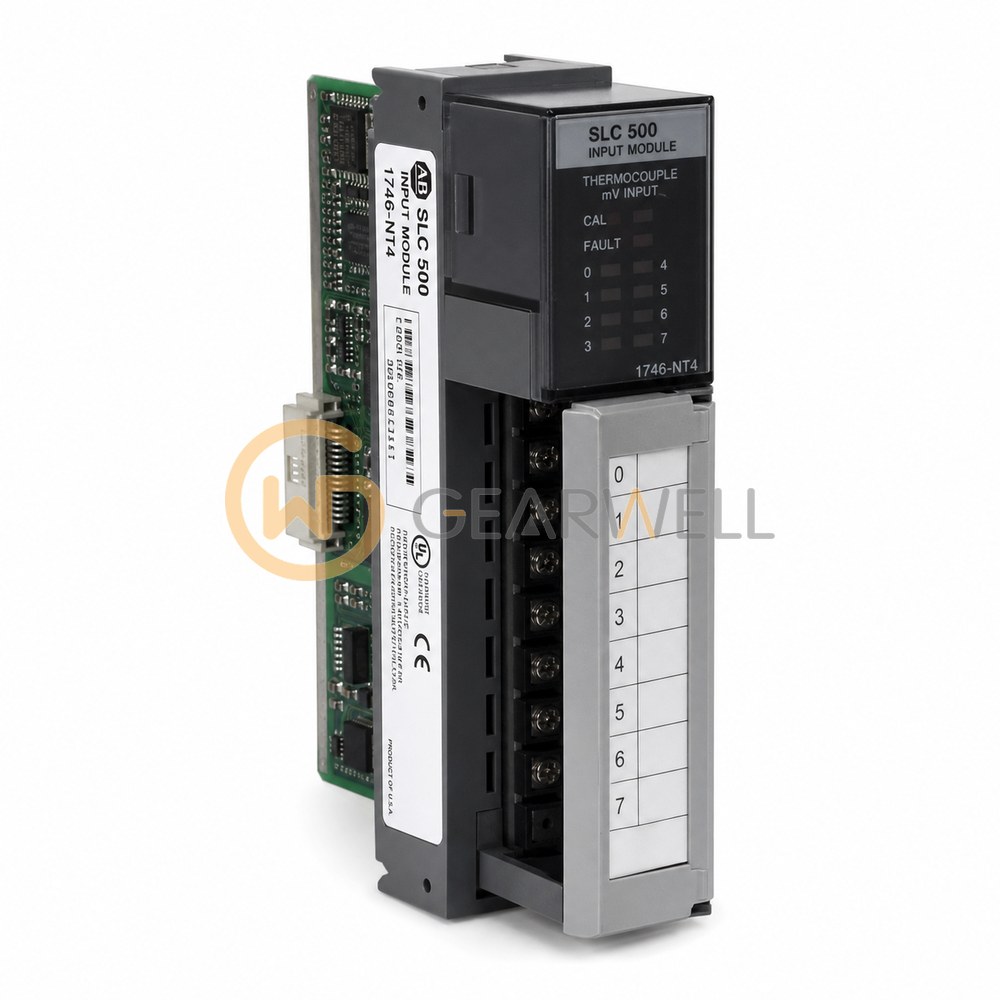

Allen-Bradley 1746-NT4 SLC 500 Thermocouple/MV Input Module
- Brand
- Allen-Bradley
- Model
- 1746-NT4
- GEARWELL SKU
- GWP-000004224
- Category
- PLCs & I/O
Key specifications
- Product type
- SLC 500 thermocouple/mV input module
- Input channels
- 4
- Thermocouple types
- J, K, T, E, R, S, B, N
- Recommended Compact 5000 replacement
- 5069-IY4
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1746-NT4 is a 4-channel thermocouple and millivolt input module with an on-board cold-junction compensation sensor. It takes thermocouple types J, K, T, E, R, S, B and N plus ±50 mV and ±100 mV inputs, with selectable 10, 50, 60 or 250 Hz filters. It draws 60 mA at 5V and 40 mA at 24V from the backplane.
Technical reference
| Product name | Allen-Bradley 1746-NT4 SLC 500 Thermocouple/MV Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1746-NT4 |
| Category | PLCs & I/O |
| Product type | SLC 500 thermocouple/mV input module |
| Input channels | 4 |
| Thermocouple types | J, K, T, E, R, S, B, N |
| Recommended Compact 5000 replacement | 5069-IY4 |
