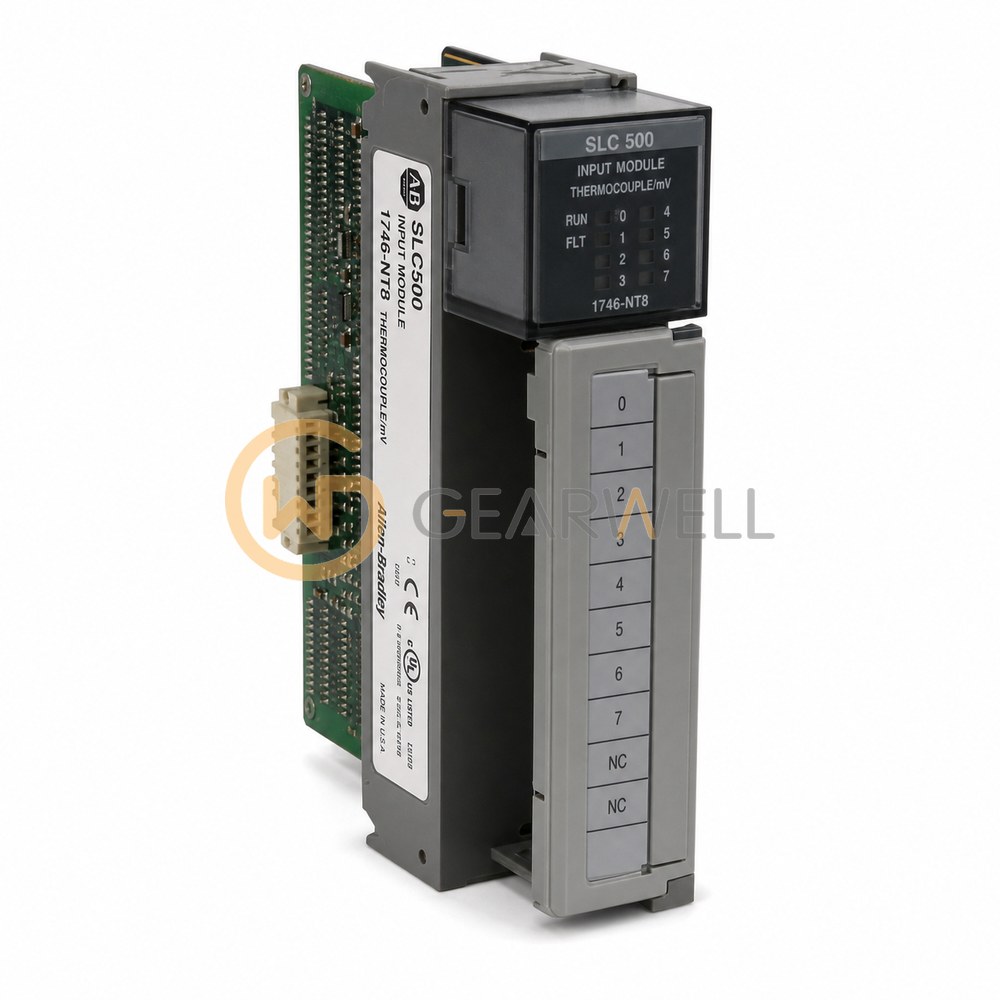

Allen-Bradley 1746-NT8 PLC Module
- Brand
- Allen-Bradley
- Model
- 1746-NT8
- GEARWELL SKU
- GWP-000004435
- Category
- PLCs & I/O
Key specifications
- Class
- Progmable Logic Controller
- Isolation
- 500V DC transient between
- Input Signal
- Thermocouple Types J, K, T, E,
- Module Interfaces
- digital
- Thermocouple Type
- Thermocouple/Mv Analog Input
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1746-NT8 is an 8-channel thermocouple and millivolt input module with an on-board cold-junction compensation sensor. It takes thermocouple types J, K, T, E, R, S, B and N plus ±50 mV and ±100 mV inputs, with selectable 10, 50, 60 or 250 Hz filters. It draws 120 mA at 5V and 70 mA at 24V from the backplane.
Technical reference
| Product name | Allen-Bradley 1746-NT8 PLC Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1746-NT8 |
| Category | PLCs & I/O |
| Class | Progmable Logic Controller |
| Isolation | 500V DC transient between |
| Input Signal | Thermocouple Types J, K, T, E, |
| Module Interfaces | digital |
| Thermocouple Type | Thermocouple/Mv Analog Input |
| Number Of Channels | 8 |
