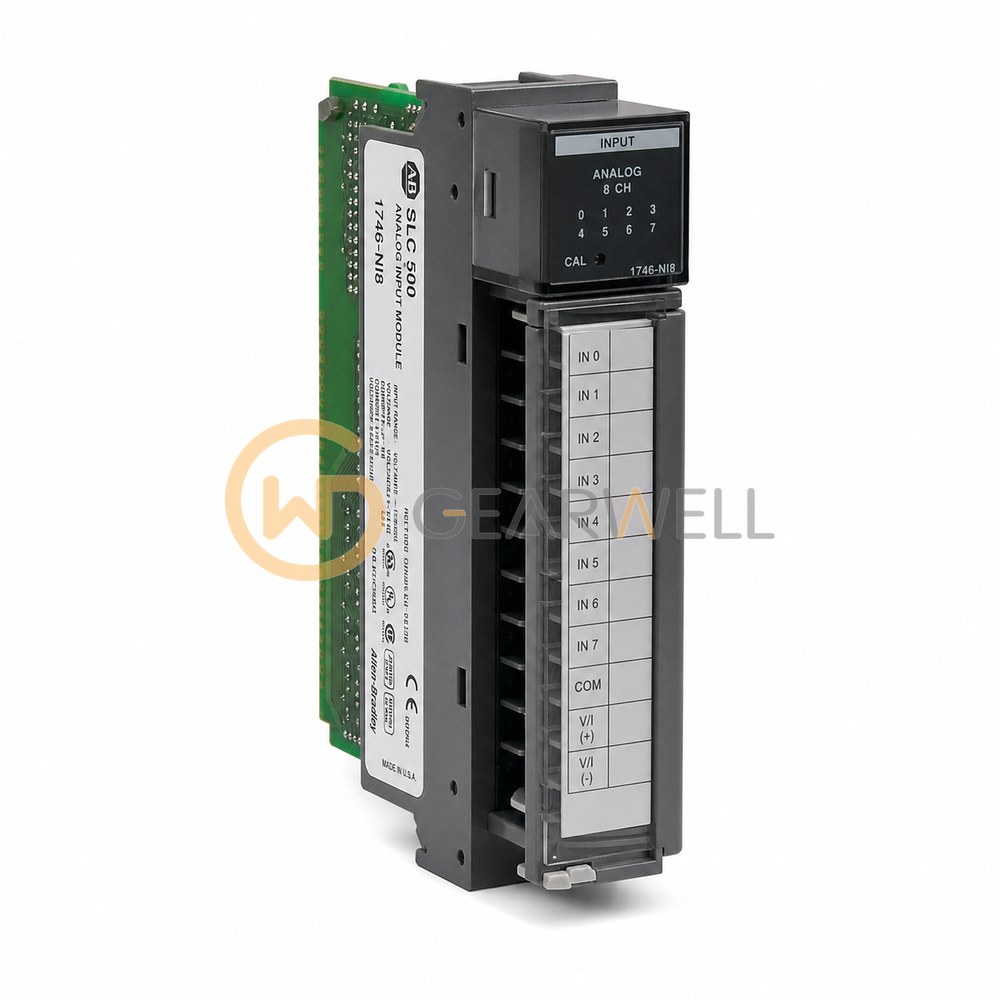

Allen-Bradley 1746-NI8 PLC Module
- Brand
- Allen-Bradley
- Model
- 1746-NI8
- GEARWELL SKU
- GWP-000000935
- Category
- PLCs & I/O
Key specifications
- Class
- Progmable Logic Controller
- Isolation
- 500V ac and 710V dc for 60
- Input Signal
- -20 to 20mA or -10 to 10V DC
- Module Interfaces
- analog
- Number Of Channels
- 8
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1746-NI8 is an 8-channel high resolution analog input module with 16-bit resolution. Each channel can be set for ±10V DC, 0…5V DC, 1…5V DC, 0…10V DC, 0…20 mA, 4…20 mA, ±20 mA or 0…1 mA, and module update time is 0.75 ms per enabled channel. It draws 200 mA at 5V and 100 mA at 24V from the backplane (3.4 W max).
Technical reference
| Product name | Allen-Bradley 1746-NI8 PLC Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1746-NI8 |
| Category | PLCs & I/O |
| Class | Progmable Logic Controller |
| Isolation | 500V ac and 710V dc for 60 |
| Input Signal | -20 to 20mA or -10 to 10V DC |
| Module Interfaces | analog |
| Number Of Channels | 8 |
| analog input modules | (8) Analog Input For |
