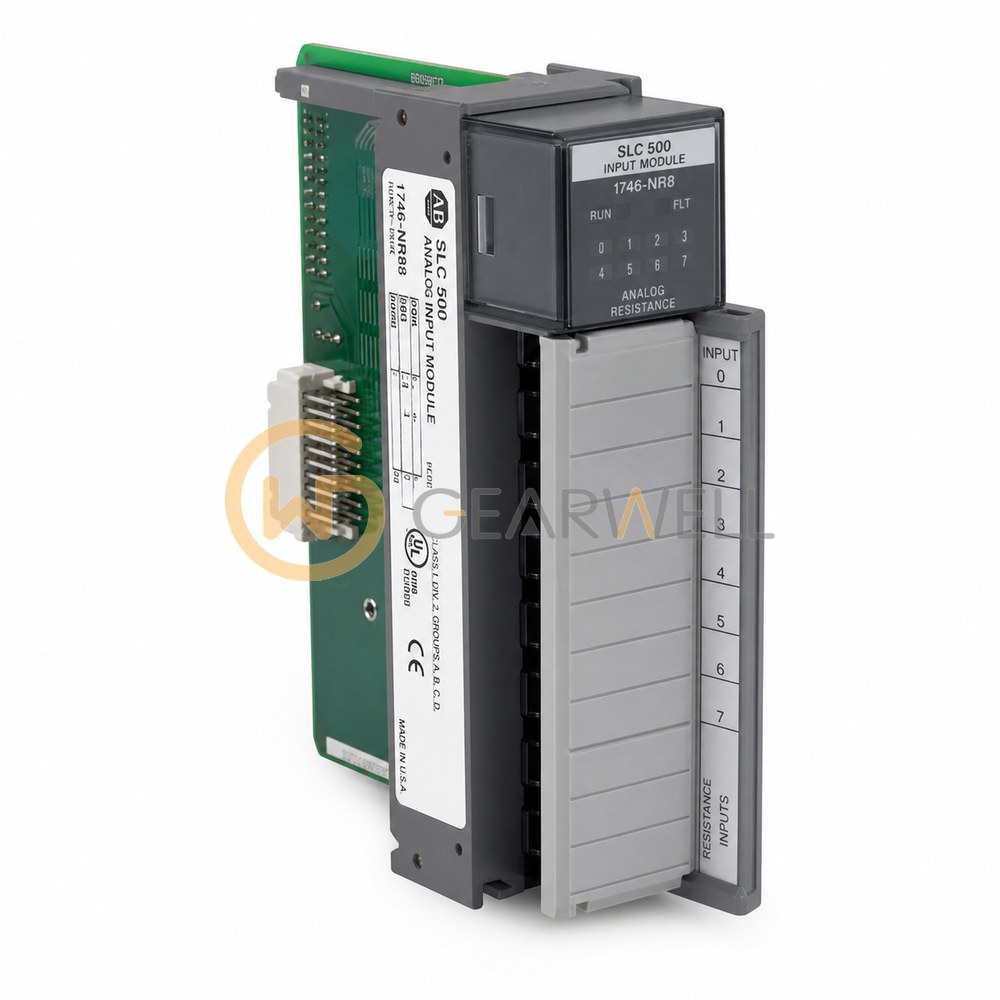

Allen-Bradley 1746-NR8 PLC Module
- Brand
- Allen-Bradley
- Model
- 1746-NR8
- GEARWELL SKU
- GWP-000000159
- Category
- PLCs & I/O
Key specifications
- Class
- Progmable Logic Controller
- Isolation
- 500V ac @ 1min, -5 to
- Input Signal
- See Catalog for inputs
- Number Of Channels
- 8
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1746-NR8 is an 8-channel RTD and resistance input module. It takes 100, 200, 500 and 1000 Ω platinum RTDs (385 and 3916), 10 Ω copper, 120 Ω nickel (618 and 672) and 604 Ω nickel-iron RTDs, plus 150, 500, 1000 and 3000 Ω resistance inputs, and scales in °C, °F or ohms. It draws 100 mA at 5V and 55 mA at 24V from the backplane.
Technical reference
| Product name | Allen-Bradley 1746-NR8 PLC Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1746-NR8 |
| Category | PLCs & I/O |
| Class | Progmable Logic Controller |
| Isolation | 500V ac @ 1min, -5 to |
| Input Signal | See Catalog for inputs |
| Number Of Channels | 8 |
