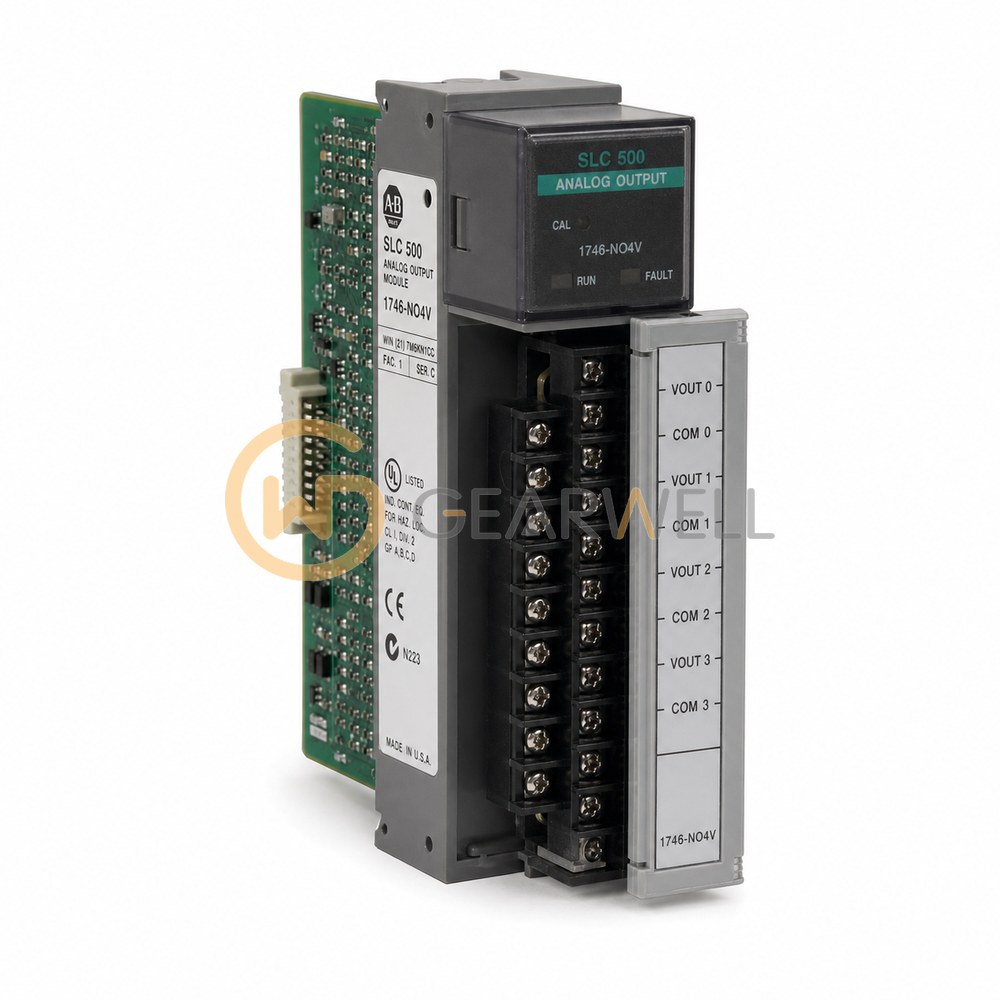

Allen-Bradley 1746-NO4V SLC 500 Analog Voltage Output Module
- Brand
- Allen-Bradley
- Model
- 1746-NO4V
- GEARWELL SKU
- GWP-000001742
- Category
- PLCs & I/O
Key specifications
- Product type
- SLC 500 analog voltage output module
- Output signal
- -10…+10 V DC
- Output channels
- 4
- Recommended Compact 5000 replacement
- 5069-OF4
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1746-NO4V is a 4-channel analog voltage output module, ±10V DC with 14-bit resolution and a 2.5 ms step response. Load current is 10 mA max and overall accuracy is ±0.208% of full scale at 25 °C. It draws 55 mA at 5V and 145 mA at 24V from the backplane, or it can take a user-supplied 24V DC supply (24V ±10%), in which case it draws only 5V current from the backplane.
Technical reference
| Product name | Allen-Bradley 1746-NO4V SLC 500 Analog Voltage Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1746-NO4V |
| Category | PLCs & I/O |
| Product type | SLC 500 analog voltage output module |
| Output signal | -10…+10 V DC |
| Output channels | 4 |
| Recommended Compact 5000 replacement | 5069-OF4 |
