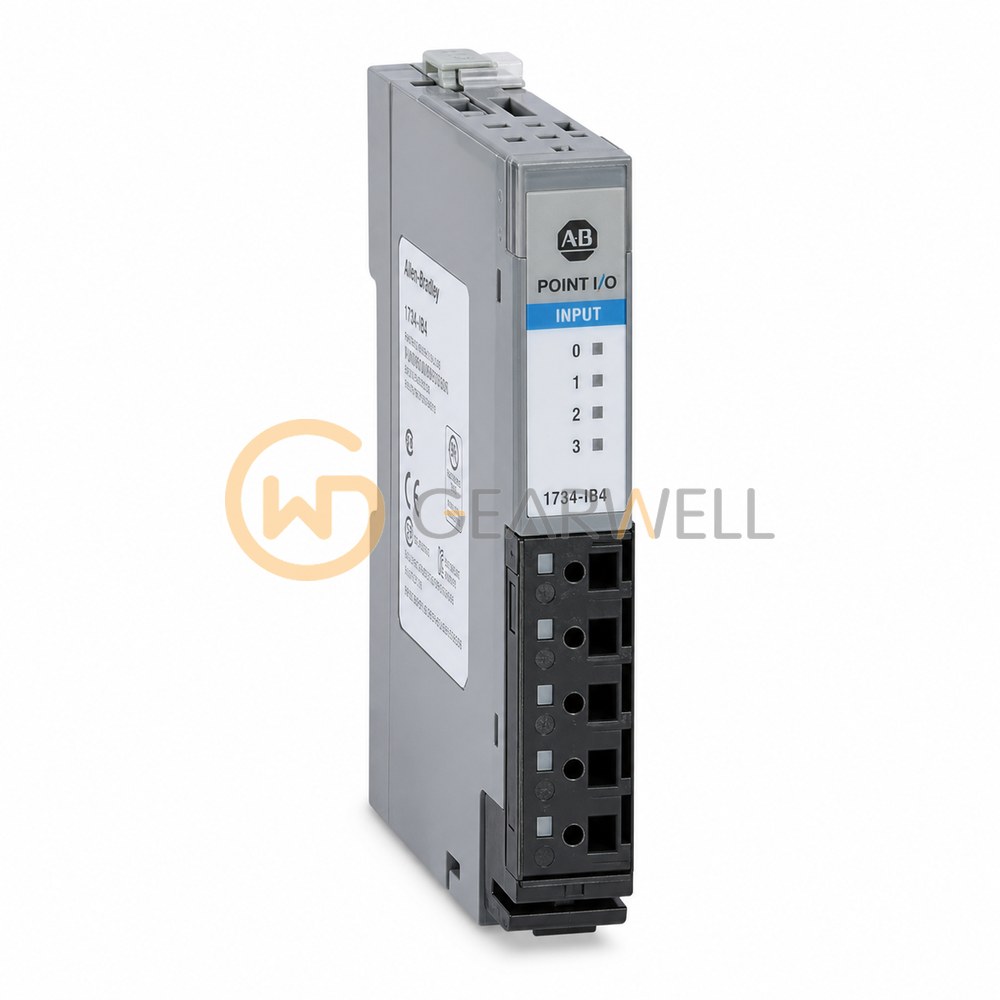

Allen-Bradley 1734-IB4 POINT I/O 4-Point Input Module
- Brand
- Allen-Bradley
- Model
- 1734IB4
- GEARWELL SKU
- GWP-000000654
- Category
- PLCs & I/O
Key specifications
- Field supply (Series D)
- 24 V DC nominal; 10…28.8 V DC.
- Product type
- POINT I/O 4-point sinking input module
- Input current (Series D)
- 4 mA nominal at 24 V DC; 2…5 mA on-state.
- Input voltage (Series D)
- 24 V DC nominal; 10…28.8 V DC on-state.
- Input channels (Series D)
- 4 sinking inputs in one group.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1734-IB4 is a POINT I/O digital input module with 4 sinking inputs in 1 group for 24V DC (10…28.8V DC), 4 mA at 24V DC and a 0.5 ms hardware filter plus a selectable 0…65 ms filter. It draws 75 mA from the POINTBus. Like all POINT I/O modules, it plugs into a terminal base with a removable terminal block that carries the field wiring; the terminal base is not included and is ordered separately.
Technical reference
| Product name | Allen-Bradley 1734-IB4 POINT I/O 4-Point Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1734IB4 |
| Category | PLCs & I/O |
| Field supply (Series D) | 24 V DC nominal; 10…28.8 V DC. |
| Product type | POINT I/O 4-point sinking input module |
| Input current (Series D) | 4 mA nominal at 24 V DC; 2…5 mA on-state. |
| Input voltage (Series D) | 24 V DC nominal; 10…28.8 V DC on-state. |
| Input channels (Series D) | 4 sinking inputs in one group. |
| Compatible terminal bases (Series D) | 1734-TB, 1734-TBS, 1734-TB3, 1734-TB3S, 1734-TOP, 1734-TOPS, 1734-TOP3 or 1734-TOP3S. |
| Lifecycle status | Active |
| POINTBus current (Series D) | 75 mA maximum at 5 V DC. |
| Product description | 4 sinking inputs in one group. |
