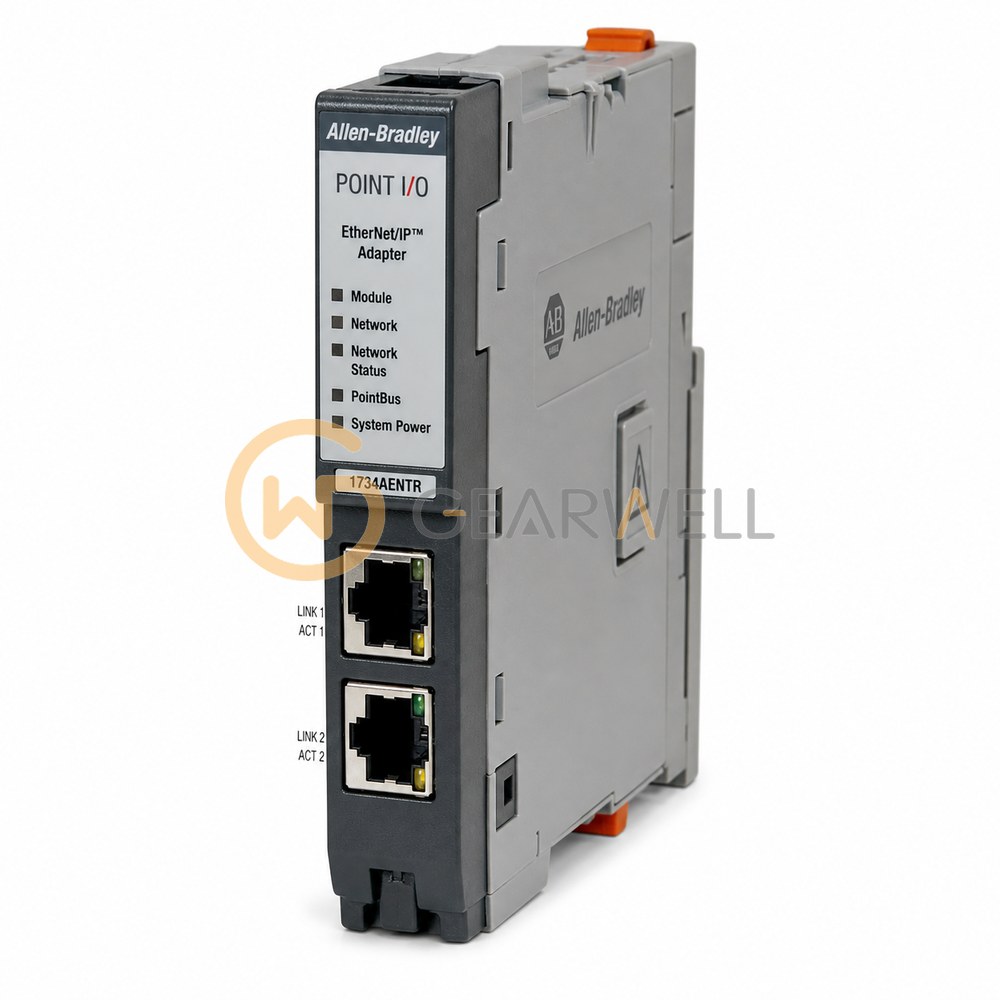

Allen-Bradley 1734-AENTR POINT I/O 2-Port EtherNet/IP Adapter
- Brand
- Allen-Bradley
- Model
- 1734AENTR
- GEARWELL SKU
- GWP-000000623
- Category
- PLCs & I/O
Key specifications
- Ethernet communication rate
- 10/100 Mbit/s; half or full duplex.
- Nominal supply voltage
- 24 V DC
- Product type
- POINT I/O dual-port EtherNet/IP network adapter
- Ethernet ports
- 2 RJ-45 ports with an embedded switch.
- POINTBus output
- 5 V DC; 0.8 A maximum.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1734-AENTR is a POINT I/O EtherNet/IP adapter with 2 RJ45 ports configured as an embedded switch, so it supports star, tree, daisy-chain/linear and ring topologies at 10/100 Mbits/s. It supplies 0.8 A at 5V DC to the POINTBus backplane and takes up to 63 POINT I/O modules on one node when expansion power supplies are added. Field power is 10…28.8V DC.
Technical reference
| Product name | Allen-Bradley 1734-AENTR POINT I/O 2-Port EtherNet/IP Adapter |
|---|---|
| Brand | Allen-Bradley |
| Model | 1734AENTR |
| Category | PLCs & I/O |
| Ethernet communication rate | 10/100 Mbit/s; half or full duplex. |
| Nominal supply voltage | 24 V DC |
| Product type | POINT I/O dual-port EtherNet/IP network adapter |
| Ethernet ports | 2 RJ-45 ports with an embedded switch. |
| POINTBus output | 5 V DC; 0.8 A maximum. |
| Lifecycle status | Active |
| Expansion I/O capacity | Up to 63 modules, subject to module current and connection limits; additional 1734-EP24DC or 1734-EPAC backplane power supplies are required to extend beyond the adapter current budget. |
| Temperature Rating | -20…55 °C (-4…131 °F) |
| Adapter supply voltage | 24 V DC nominal; 10…28.8 V DC range. |
| Product description | Connects POINT I/O modules to EtherNet/IP through an embedded two-port switch. |
| Communication Protocol | EtherNet/IP |
