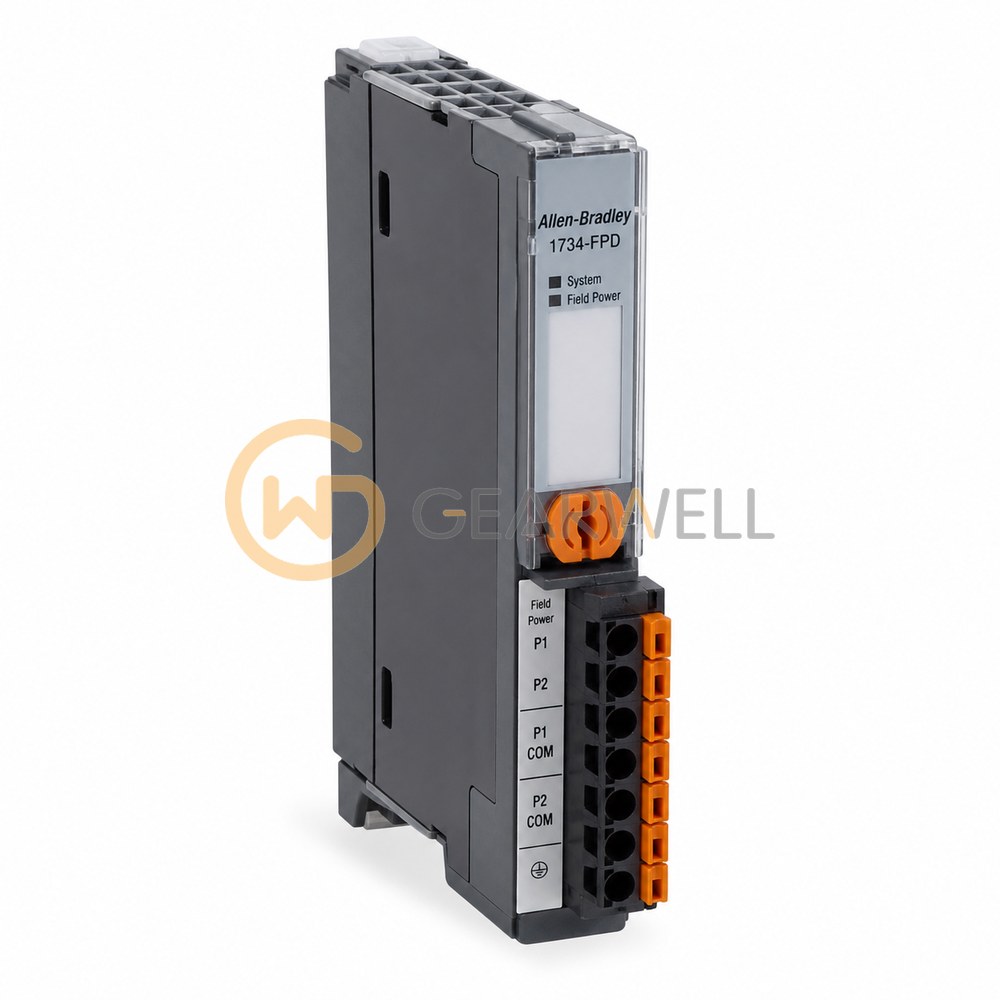

Allen-Bradley 1734-FPD POINT I/O Field Power Distributor
- Brand
- Allen-Bradley
- Model
- 1734FPD
- GEARWELL SKU
- GWP-000002144
- Category
- PLCs & I/O
Key specifications
- Dimensions, H x W x D (Series B)
- 79.8 x 25.3 x 133.1 mm (H x W x D), approximately.
- Product type
- POINT I/O field power distributor
- Input current
- 10 A max
- Input voltage
- 12/24 V DC or 120/240 V AC nominal
- DC input range
- 10…28.8 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1734-FPD is a POINT I/O field power distributor that starts a new field power bus for the modules on its right, at 12V or 24V DC or 120V or 240V AC with up to 10 A. It passes all POINTBus backplane signals through and is used to separate power for different groups of modules.
Technical reference
| Product name | Allen-Bradley 1734-FPD POINT I/O Field Power Distributor |
|---|---|
| Brand | Allen-Bradley |
| Model | 1734FPD |
| Category | PLCs & I/O |
| Dimensions, H x W x D (Series B) | 79.8 x 25.3 x 133.1 mm (H x W x D), approximately. |
| Product type | POINT I/O field power distributor |
| Input current | 10 A max |
| Input voltage | 12/24 V DC or 120/240 V AC nominal |
| DC input range | 10…28.8 V DC |
| POINTBus current (Series B) | Pass-through; does not regenerate POINTBus power. |
| Isolation voltage (Series B) | 50 V continuous; tested at 2600 V DC for 60 s. |
| Power consumption (Series B) | None. |
| AC field bus voltage (Series B) | 120/240 V AC nominal, 50/60 Hz; 264 V AC maximum. Ex use is limited to 120 V AC or below, subject to the applicable installation requirements. |
| Field power separation (Series B) | Separates field power for modules to the right while passing the POINTBus connection. |
| Operating temperature | -20…+55 °C (-4…+131 °F) |
