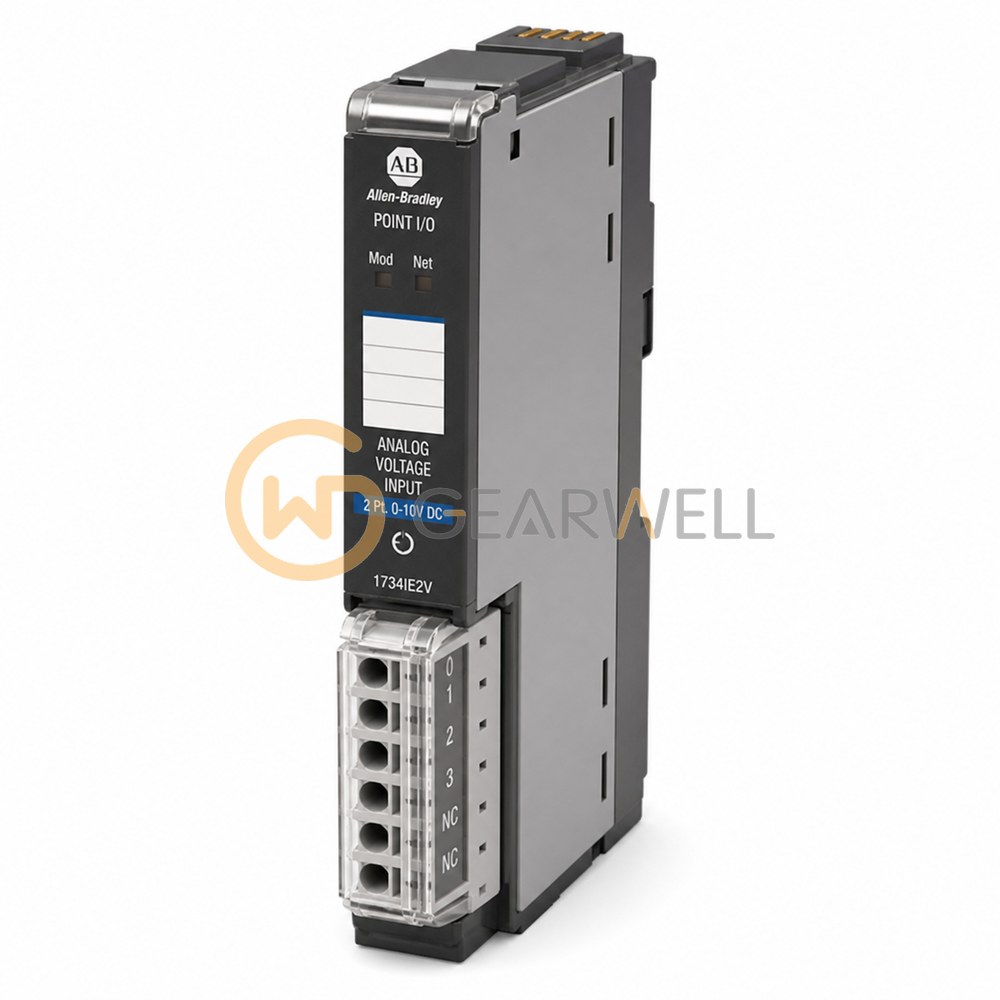

Allen-Bradley 1734-IE2V POINT I/O 2-Channel Analog Voltage Input Module

Brand: Allen-Bradley
Model: 1734IE2V
GEARWELL SKU: GWP-000003106
Category: PLCs & I/O

Key specifications

External/field supply (Series C): 24 V DC nominal; 10…28.8 V DC external/field input.
Product type: POINT I/O 2-channel voltage input module
Input channels (Series C): 2 single-ended, nonisolated voltage inputs.
Input resolution (Series C): 15 bits plus sign; 320 µV/count in unipolar or bipolar mode.
Manufacturer lifecycle status: Active

POINT I/O 1734 catalog number list (PDF, 111 KB)

Request a QuoteWhatsApp

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

← Back to products

Product overview

The Allen-Bradley 1734-IE2V is a POINT I/O analog input module with 2 single-ended, non-isolated voltage inputs for 0…10V or ±10V, 15 bits plus sign resolution and 0.1% full scale accuracy at 25 °C. It draws 75 mA from the POINTBus. Like all POINT I/O modules, it plugs into a terminal base with a removable terminal block that carries the field wiring; the terminal base is not included and is ordered separately.

Technical reference

Product name	Allen-Bradley 1734-IE2V POINT I/O 2-Channel Analog Voltage Input Module
Brand	Allen-Bradley
Model	1734IE2V
Category	PLCs & I/O
External/field supply (Series C)	24 V DC nominal; 10…28.8 V DC external/field input.
Product type	POINT I/O 2-channel voltage input module
Input channels (Series C)	2 single-ended, nonisolated voltage inputs.
Input resolution (Series C)	15 bits plus sign; 320 µV/count in unipolar or bipolar mode.
Manufacturer lifecycle status	Active
Absolute accuracy (Series C)	0.1% full scale at 25 °C.
Module update time (Series C)	100 ms at the default 60 Hz notch setting.
Operating temperature (Series C)	-20…55 °C (-4…131 °F)
Input signal ranges (Series C)	0…10 V or ±10 V, configurable.
Product description	2-channel analog voltage input module for POINT I/O, with single-ended, nonisolated inputs.
