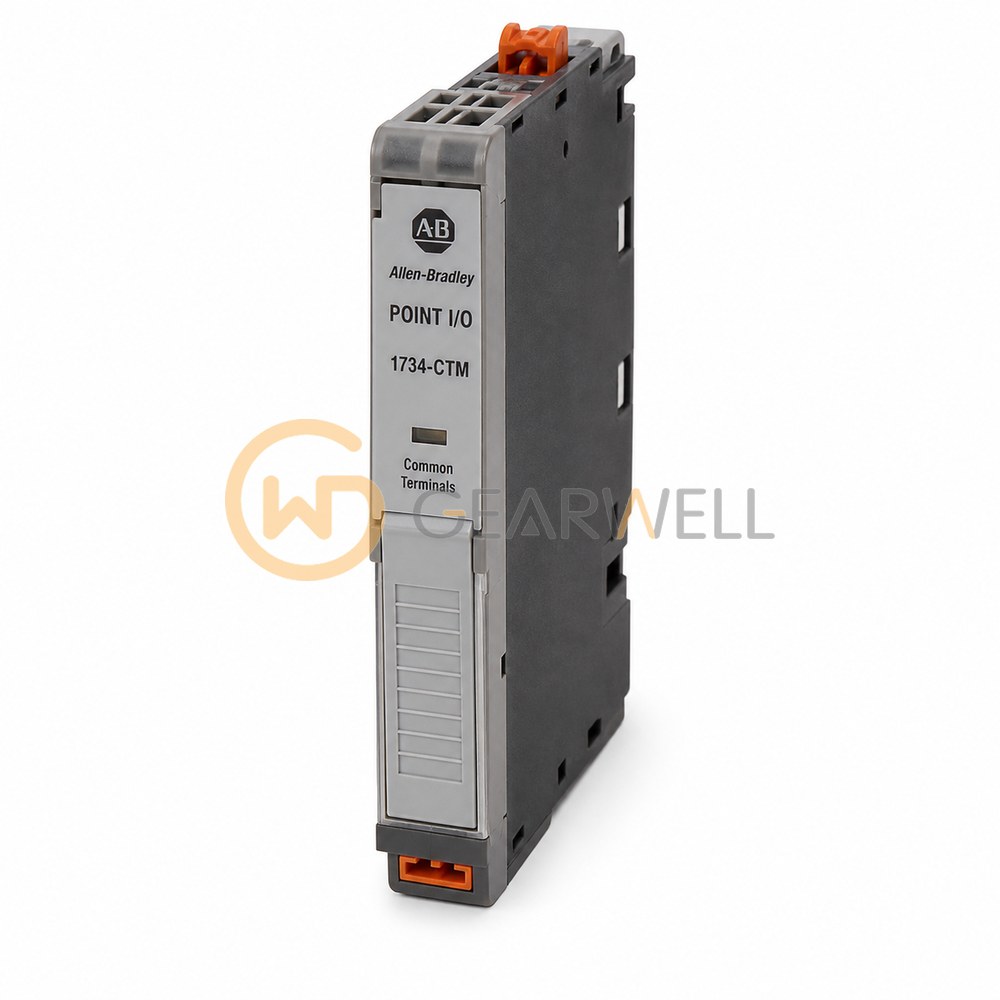

Allen-Bradley 1734-CTM POINT I/O Common Terminal Module
- Brand
- Allen-Bradley
- Model
- 1734CTM
- GEARWELL SKU
- GWP-000002183
- Category
- PLCs & I/O
Key specifications
- Product type
- POINT I/O Common Terminal Module
- Lifecycle status
- Active
- POINTBus current (Series C)
- None.
- Field bus current limits (Series C)
- 2 A maximum per point; 4 A maximum per module.
- Field bus voltage (Series C)
- 10…28.8 V DC or 120/240 V AC.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1734-CTM is a POINT I/O common terminal module that adds terminals for external connections to 8-channel POINT I/O modules. It is rated 2 A per point and 4 A per module, for 10…28.8V DC or 120/240V AC field power. Like all POINT I/O modules, it plugs into a terminal base with a removable terminal block that carries the field wiring; the terminal base is not included and is ordered separately.
Technical reference
| Product name | Allen-Bradley 1734-CTM POINT I/O Common Terminal Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1734CTM |
| Category | PLCs & I/O |
| Product type | POINT I/O Common Terminal Module |
| Lifecycle status | Active |
| POINTBus current (Series C) | None. |
| Field bus current limits (Series C) | 2 A maximum per point; 4 A maximum per module. |
| Field bus voltage (Series C) | 10…28.8 V DC or 120/240 V AC. |
| Common termination points (Series C) | 8 common termination points; not independently programmable I/O channels. |
| Temperature Rating | -20…55 °C (-4…131 °F) |
| Product description | Common termination expansion for POINT I/O field-device wiring. |
| Wiring base compatibility (Series C) | 1734-TB, 1734-TBS, 1734-TOP or 1734-TOPS; not compatible with 1734-TB3, 1734-TB3S, 1734-TOP3 or 1734-TOP3S. |
