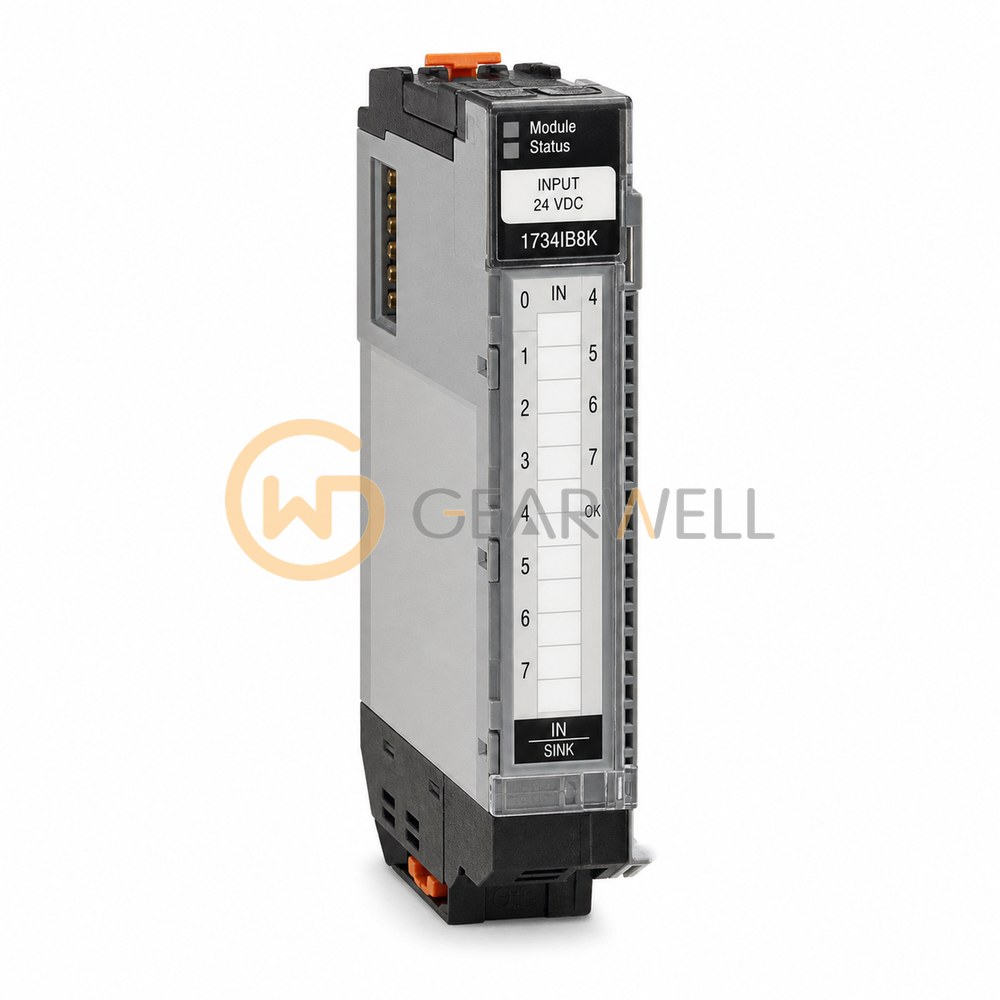

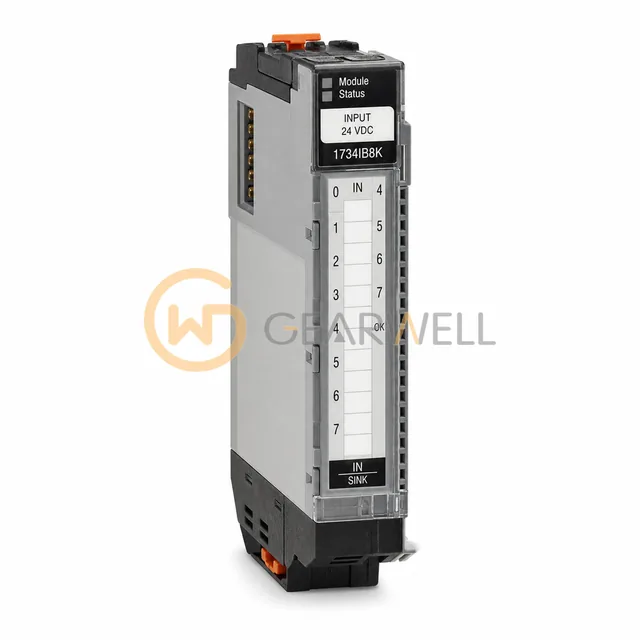

Allen-Bradley 1734-IB8K POINT I/O 8-Point Conformal-Coated Input Module

Brand: Allen-Bradley
Model: 1734IB8K
GEARWELL SKU: GWP-000001162
Category: PLCs & I/O

Key specifications

Field supply (Series D): 24 V DC nominal; 10…28.8 V DC.
Product type: POINT I/O 8-point conformal-coated sinking input module
Input current (Series D): 4 mA nominal at 24 V DC; 2…5 mA on-state.
Input voltage (Series D): 24 V DC nominal; 10…28.8 V DC on-state.
Input channels (Series D): 8 sinking inputs in one group.

POINT I/O 1734 catalog number list (PDF, 111 KB)

Request a QuoteWhatsApp

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

← Back to products

Product overview

The Allen-Bradley 1734-IB8K is a POINT I/O digital input module with 8 sinking inputs in 1 group for 24V DC (10…28.8V DC), 4 mA at 24V DC and a 0.5 ms hardware filter plus a selectable 0…65 ms filter. It draws 75 mA from the POINTBus. The K version is listed with the same specifications in the selection guide and is the conformally coated version. Like all POINT I/O modules, it plugs into a terminal base with a removable terminal block that carries the field wiring; the terminal base is not included and is ordered separately.

Technical reference

Product name	Allen-Bradley 1734-IB8K POINT I/O 8-Point Conformal-Coated Input Module
Brand	Allen-Bradley
Model	1734IB8K
Category	PLCs & I/O
Field supply (Series D)	24 V DC nominal; 10…28.8 V DC.
Product type	POINT I/O 8-point conformal-coated sinking input module
Input current (Series D)	4 mA nominal at 24 V DC; 2…5 mA on-state.
Input voltage (Series D)	24 V DC nominal; 10…28.8 V DC on-state.
Input channels (Series D)	8 sinking inputs in one group.
Compatible terminal bases (Series D)	1734-TB, 1734-TBS, 1734-TOP or 1734-TOPS.
Lifecycle status	Active
POINTBus current (Series D)	75 mA maximum at 5 V DC.
Temperature Rating	-20…55 °C (-4…131 °F)
Product description	8 sinking inputs in one group. This is the conformal-coated K version.
