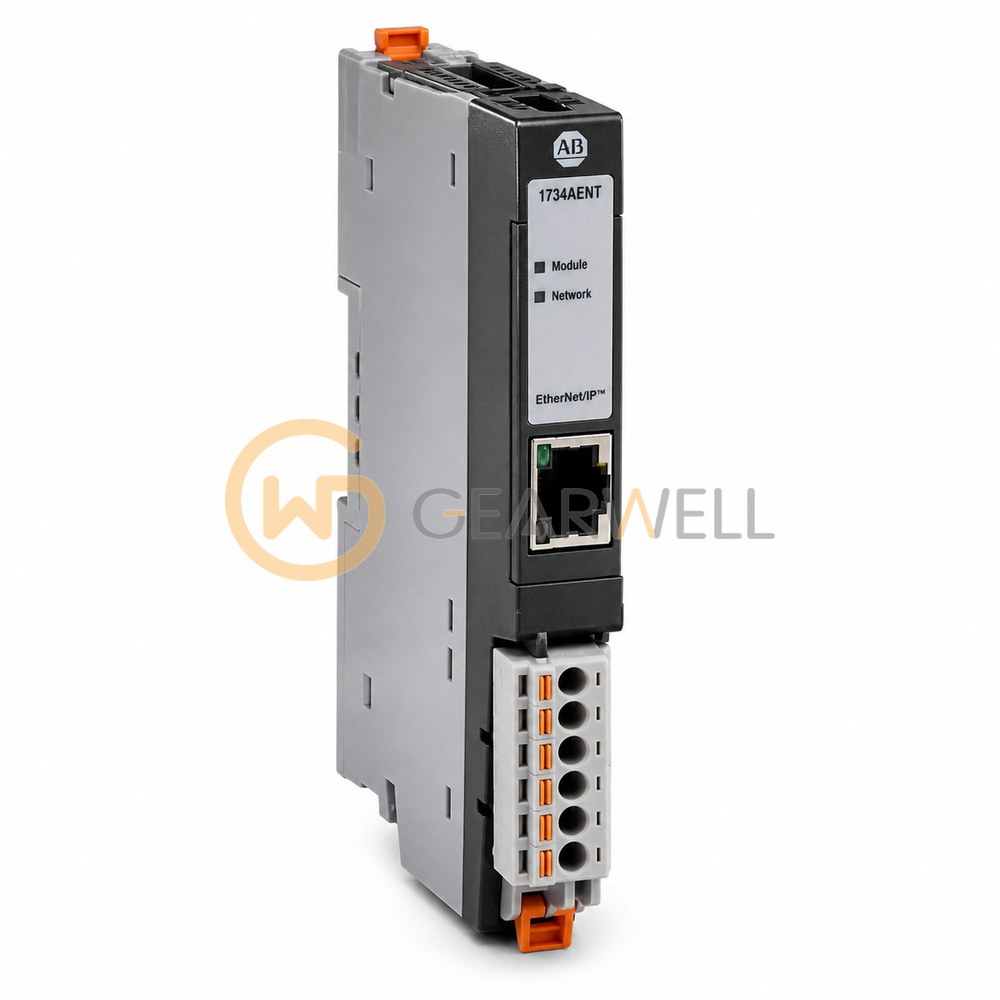

Allen-Bradley 1734-AENT POINT I/O 1-Port EtherNet/IP Adapter
- Brand
- Allen-Bradley
- Model
- 1734AENT
- GEARWELL SKU
- GWP-000001460
- Category
- PLCs & I/O
Key specifications
- Ethernet communication rate
- 10/100 Mbit/s; half or full duplex.
- Nominal supply voltage
- 24 V DC
- Product type
- POINT I/O single-port EtherNet/IP network adapter
- Ethernet ports
- 1 RJ-45 port.
- POINTBus output
- 5 V DC; 1.0 A maximum.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1734-AENT is a POINT I/O EtherNet/IP adapter with 1 RJ45 port at 10/100 Mbits/s (star or tree topology). It supports direct, rack-optimized and enhanced rack-optimized connections, supplies 1.0 A at 5V DC to the POINTBus backplane and takes up to 63 POINT I/O modules on one node when expansion power supplies are added. Field power is 10…28.8V DC.
Technical reference
| Product name | Allen-Bradley 1734-AENT POINT I/O 1-Port EtherNet/IP Adapter |
|---|---|
| Brand | Allen-Bradley |
| Model | 1734AENT |
| Category | PLCs & I/O |
| Ethernet communication rate | 10/100 Mbit/s; half or full duplex. |
| Nominal supply voltage | 24 V DC |
| Product type | POINT I/O single-port EtherNet/IP network adapter |
| Ethernet ports | 1 RJ-45 port. |
| POINTBus output | 5 V DC; 1.0 A maximum. |
| Lifecycle status | Active |
| Expansion I/O capacity | Up to 63 modules, subject to module current and connection limits; additional 1734-EP24DC or 1734-EPAC backplane power supplies are required to extend beyond the adapter current budget. |
| Temperature Rating | -20…55 °C (-4…131 °F) |
| Adapter supply voltage | 24 V DC nominal; 10…28.8 V DC range. |
| Product description | Connects POINT I/O modules to EtherNet/IP through a single Ethernet port. |
| Communication Protocol | EtherNet/IP |
