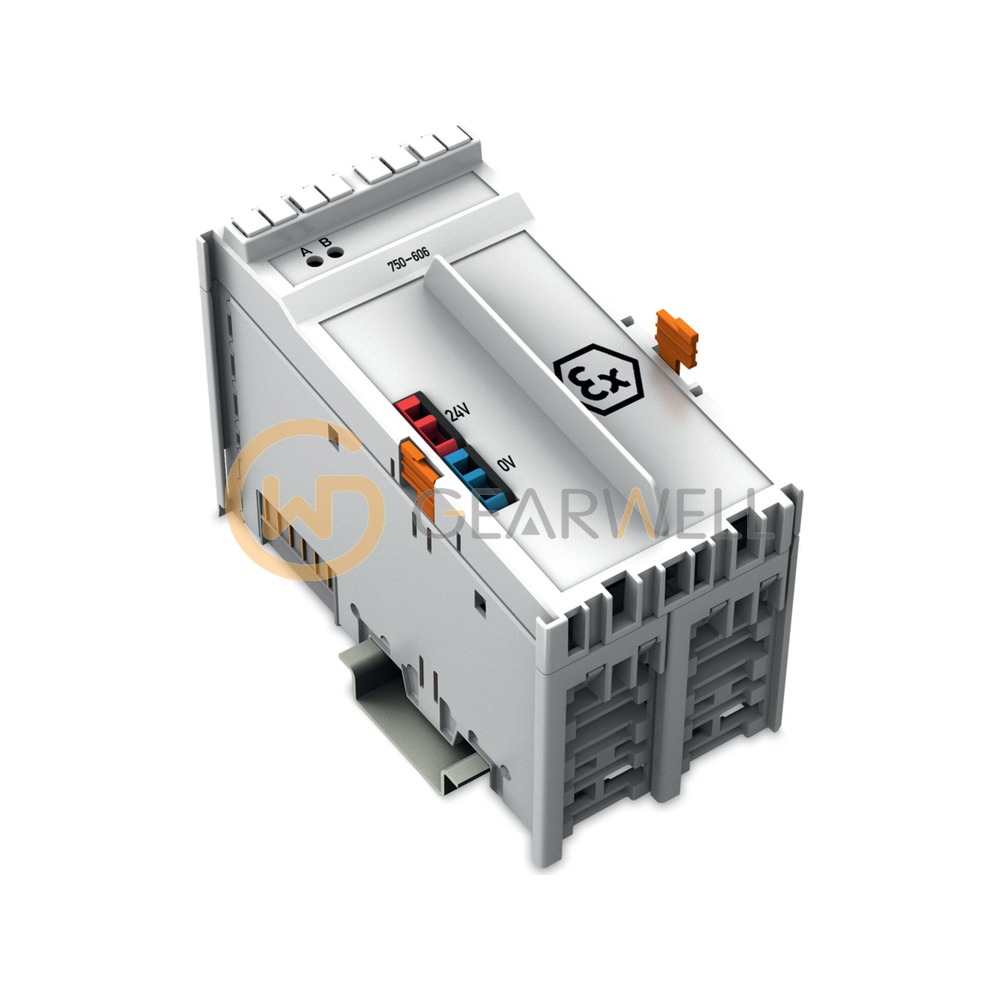

WAGO 750-606 I/O System 750 24 VDC Power Supply Module Ex i
- Brand
- WAGO
- Model
- 750-606
- GEARWELL SKU
- GWP-000010071
- Category
- PLCs & I/O
Key specifications
- Fuse
- electronic
- Width
- 48 mm / 1.89 inches
- Supply voltage
- 24 VDC; (−25 % … +30 %); input voltage
- Supply voltage (field)
- 24 VDC, SELV/PELV (-25 … +30 %)
- Supply voltage (system)
- 5 VDC; via data contacts
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-606 is a supply module of the WAGO I/O System 750 that feeds and monitors a downstream intrinsically safe (Ex i) segment and separates it from the non-intrinsically safe part of the node, with isolated input and output sides. It takes 24 VDC, SELV/PELV (-25 … +30 %) through CAGE CLAMP connections with an external 10 A slow-blow fuse, and outputs Un = 24 V ± 0.3 V at In = 1 A with Uo = 26.8 V for protection level ia. The output is protected by an electronic fuse, and the module reports 2-bit diagnostics. It draws 7.5 mA from the system supply, works at 0 … +55 °C and measures (48 x 100 x 70.9) mm W x H x D.
Technical reference
| Product name | WAGO 750-606 I/O System 750 24 VDC Power Supply Module Ex i |
|---|---|
| Brand | WAGO |
| Model | 750-606 |
| Category | PLCs & I/O |
| Fuse | electronic |
| Width | 48 mm / 1.89 inches |
| Supply voltage | 24 VDC; (−25 % … +30 %); input voltage |
| Supply voltage (field) | 24 VDC, SELV/PELV (-25 … +30 %) |
| Supply voltage (system) | 5 VDC; via data contacts |
| Intrinsically safe Ex i | Yes |
| Ambient temperature (operation) | 0 … +55 °C |
| Current carrying capacity (power jumper contacts) | 1 A |
