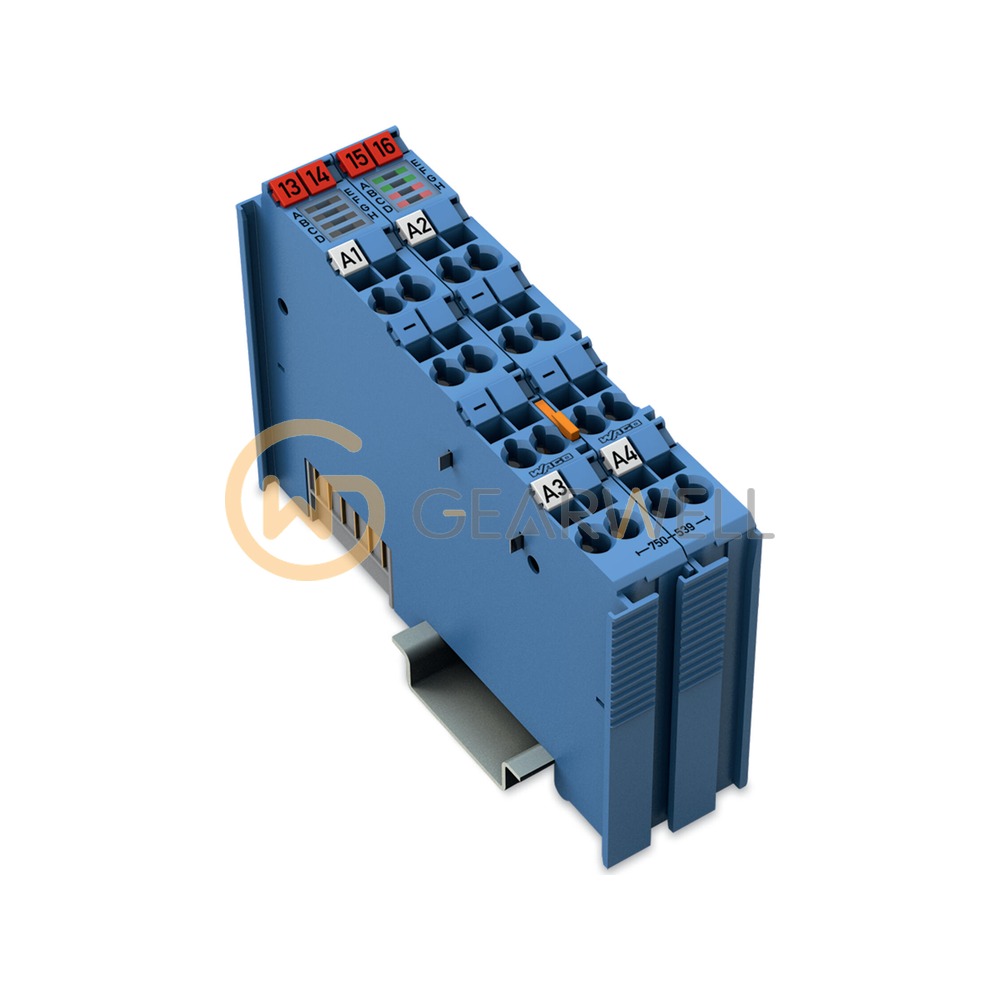

WAGO 750-539 I/O System 750 4-Channel Valve Output Module Ex i
- Brand
- WAGO
- Model
- 750-539
- GEARWELL SKU
- GWP-000010057
- Category
- PLCs & I/O
Key specifications
- Width
- 24 mm / 0.945 inches
- Signal type (voltage)
- 24 VDC
- Supply voltage (field)
- 24 VDC
- Supply voltage (system)
- 5 VDC; via data contacts
- Number of digital outputs
- 4
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-539 is an intrinsically safe (Ex i) digital output module of the WAGO I/O System 750 with 4 high-side switching 24 VDC outputs for valves. It drives resistive, inductive or lamp loads at up to 100 Hz, each actuator connects with 2 wires, and red LEDs show diagnostics per channel. The field side is supplied with 24 VDC from the Ex i power supply (Uo = max. 26.8 V) via power jumper contacts, and the module draws 20 mA from the system supply and 10 mA from the field supply. Isolation is UM = 375 V system/supply, the ambient temperature range is 0 … +55 °C and the dimensions are (24 x 100 x 67.8) mm W x H x D.
Technical reference
| Product name | WAGO 750-539 I/O System 750 4-Channel Valve Output Module Ex i |
|---|---|
| Brand | WAGO |
| Model | 750-539 |
| Category | PLCs & I/O |
| Width | 24 mm / 0.945 inches |
| Signal type (voltage) | 24 VDC |
| Supply voltage (field) | 24 VDC |
| Supply voltage (system) | 5 VDC; via data contacts |
| Number of digital outputs | 4 |
| Output current per channel | 0.047 A |
| Ambient temperature (operation) | 0 … +55 °C |
| Current carrying capacity (power jumper contacts) | 1 A |
