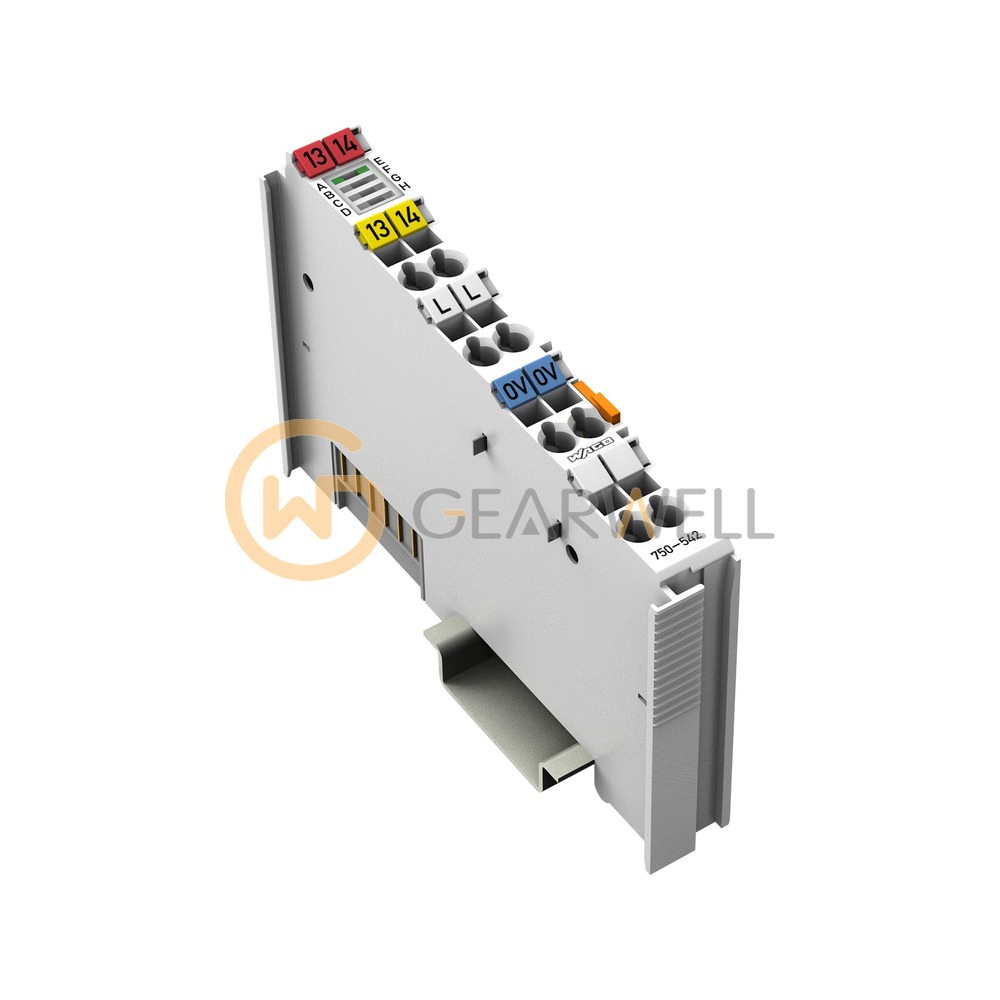

WAGO 750-542 I/O System 750 2-Channel Relay Output Module
- Brand
- WAGO
- Model
- 750-542
- GEARWELL SKU
- GWP-000010058
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Supply voltage (field)
- 230 VAC / 30 VDC
- Supply voltage (system)
- 5 VDC; via data contacts
- Switching current (max.)
- 2 A
- Switching voltage (max.)
- 250 VAC / 30 VDC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-542 is a 2-channel relay output module of the WAGO I/O System 750 with two non-floating make contacts. The maximum switching voltage is 250 VAC / 30 VDC, the maximum switching current is 2 A at resistive load and the minimum is 1 mA, with 300 x 10³ electrical switching operations. Actuators connect in 2-wire or 3-wire technology; the 230 VAC / 30 VDC field supply comes via the power jumper contacts and needs an additional supply module. The system-side current consumption is 50 mA, the operating temperature is 0 … +55 °C and the dimensions are (12 x 100 x 69.8) mm (W x H x D).
Technical reference
| Product name | WAGO 750-542 I/O System 750 2-Channel Relay Output Module |
|---|---|
| Brand | WAGO |
| Model | 750-542 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Supply voltage (field) | 230 VAC / 30 VDC |
| Supply voltage (system) | 5 VDC; via data contacts |
| Switching current (max.) | 2 A |
| Switching voltage (max.) | 250 VAC / 30 VDC |
| Number of digital outputs | 2 |
| Ambient temperature (operation) | 0 … +55 °C |
| Current carrying capacity (power jumper contacts) | 10 A |
