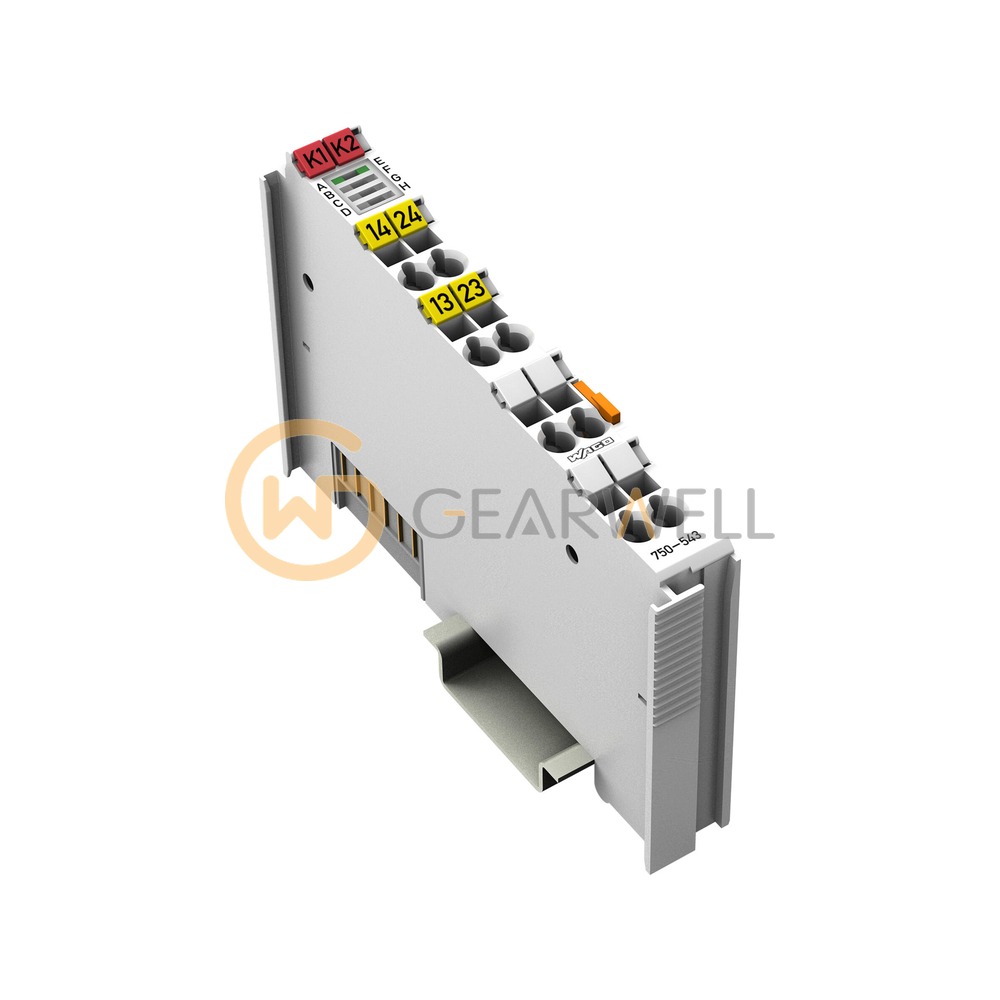

WAGO 750-543 I/O System 750 2-Channel Relay Output Module
- Brand
- WAGO
- Model
- 750-543
- GEARWELL SKU
- GWP-000010059
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Supply voltage (system)
- 5 VDC; via data contacts
- Switching current (max.)
- 2 A
- Switching voltage (max.)
- 250 VAC / 30 VDC
- Number of digital outputs
- 2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-543 is a 2-channel relay output module of the WAGO I/O System 750 with two potential-free make contacts. The maximum switching voltage is 250 VAC / 30 VDC, the maximum switching current is 2 A at resistive load and the minimum is 1 mA, with 300 x 10³ electrical switching operations. Actuators connect as 2 x (1-wire) on the fixed connector, and the module draws 50 mA from the system supply. It operates at 0 … +55 °C and measures (12 x 100 x 69.8) mm (W x H x D).
Technical reference
| Product name | WAGO 750-543 I/O System 750 2-Channel Relay Output Module |
|---|---|
| Brand | WAGO |
| Model | 750-543 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Supply voltage (system) | 5 VDC; via data contacts |
| Switching current (max.) | 2 A |
| Switching voltage (max.) | 250 VAC / 30 VDC |
| Number of digital outputs | 2 |
| Ambient temperature (operation) | 0 … +55 °C |
