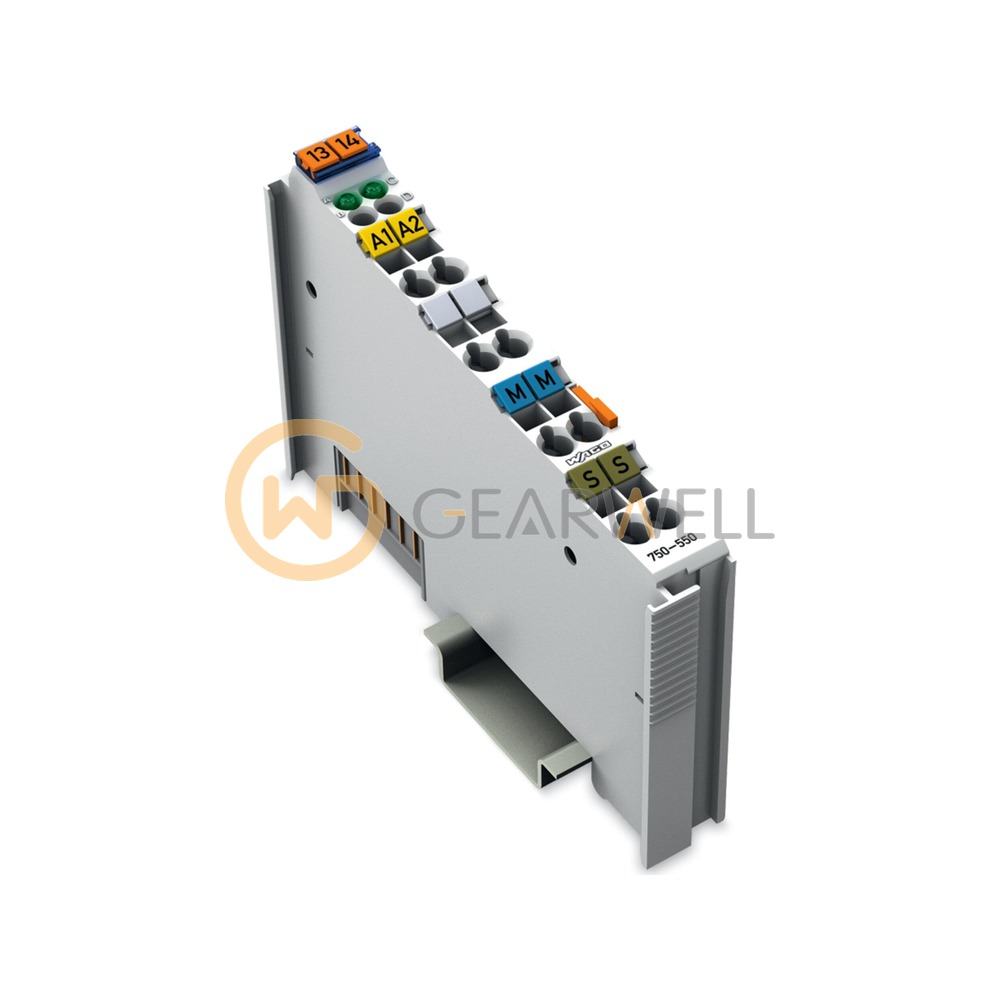

WAGO 750-550 I/O System 750 2-Channel Analog Output Module
- Brand
- WAGO
- Model
- 750-550
- GEARWELL SKU
- GWP-000010060
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Isolation
- 500 V system/field
- Resolution [bit]
- 12 Bit
- Protection type
- IP20
- Signal type (voltage)
- 0 … 10 VDC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-550 is a 2-channel analog output module of the WAGO I/O System 750 for 0 … 10 VDC voltage signals. It resolves 12 bits with a typical conversion time of 2 ms, needs a load impedance of ≥ 5 kΩ and has a linearity of ±10 mV and an output error of 0.1 % of the upper-range value at 25 °C. Actuators connect as 2 x (2-wire) on the fixed connector and the module draws 65 mA from the system supply. It has 500 V system/field isolation, operates at 0 … +55 °C and measures (12 x 100 x 69.8) mm (W x H x D).
Technical reference
| Product name | WAGO 750-550 I/O System 750 2-Channel Analog Output Module |
|---|---|
| Brand | WAGO |
| Model | 750-550 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Isolation | 500 V system/field |
| Resolution [bit] | 12 Bit |
| Protection type | IP20 |
| Signal type (voltage) | 0 … 10 VDC |
| Supply voltage (system) | 5 VDC; via data contacts |
| Number of analog outputs | 2 |
| Ambient temperature (operation) | 0 … +55 °C |
