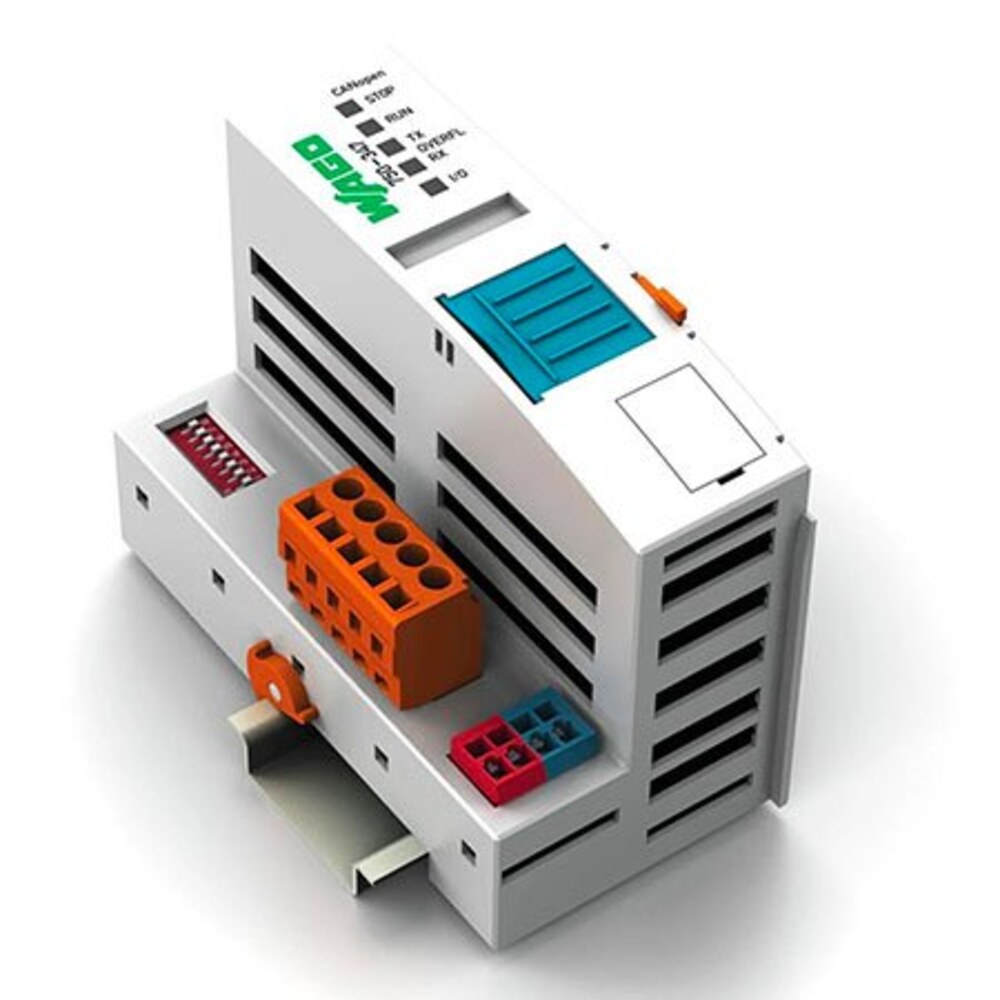

WAGO 750-347 Fieldbus Coupler
- Brand
- WAGO
- Model
- 750-347
- GEARWELL SKU
- GWP-000004166
- Category
- Industrial Automation Parts
Key specifications
- Supply voltage (system)
- 24 VDC (-25 … +30 %); via pluggable connector
- Total current (system supply)
- 650 mA
- Current consumption (system supply)
- 350 mA
- Input current (typ.) at nominal load (24 V)
- 260 mA
- Number of fieldbus nodes on master (max.)
- 110
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-347 is the ECO version of the CANopen fieldbus coupler for the WAGO I/O System 750, with a 5-pole male connector of the 231 Series (MCS). It runs at 10 kBd … 1 MBd over a bus segment of up to 1000 m, supports 5 Tx / 5 Rx PDOs, one SDO server and the DS-301 V4.1 communication profile, and handles up to 64 modules per node with a process image of up to 32 bytes/32 bytes. The system supply is 24 VDC via CAGE CLAMP® connection, with a total current for the system supply of 650 mA. It operates at 0 … +55 °C and measures (49.5 x 96.8 x 71.9) mm W x H x D.
Technical reference
| Product name | WAGO 750-347 Fieldbus Coupler |
|---|---|
| Brand | WAGO |
| Model | 750-347 |
| Category | Industrial Automation Parts |
| Supply voltage (system) | 24 VDC (-25 … +30 %); via pluggable connector |
| Total current (system supply) | 650 mA |
| Current consumption (system supply) | 350 mA |
| Input current (typ.) at nominal load (24 V) | 260 mA |
| Number of fieldbus nodes on master (max.) | 110 |
| Transmission medium (communication/fieldbus) | Shielded Cu cable 3 x 0.25 mm² |
| Input and output process image (fieldbus) max. | 32 bytes/32 bytes |
| Power supply efficiency (typ.) at nominal load (24 V) | 80 % |
