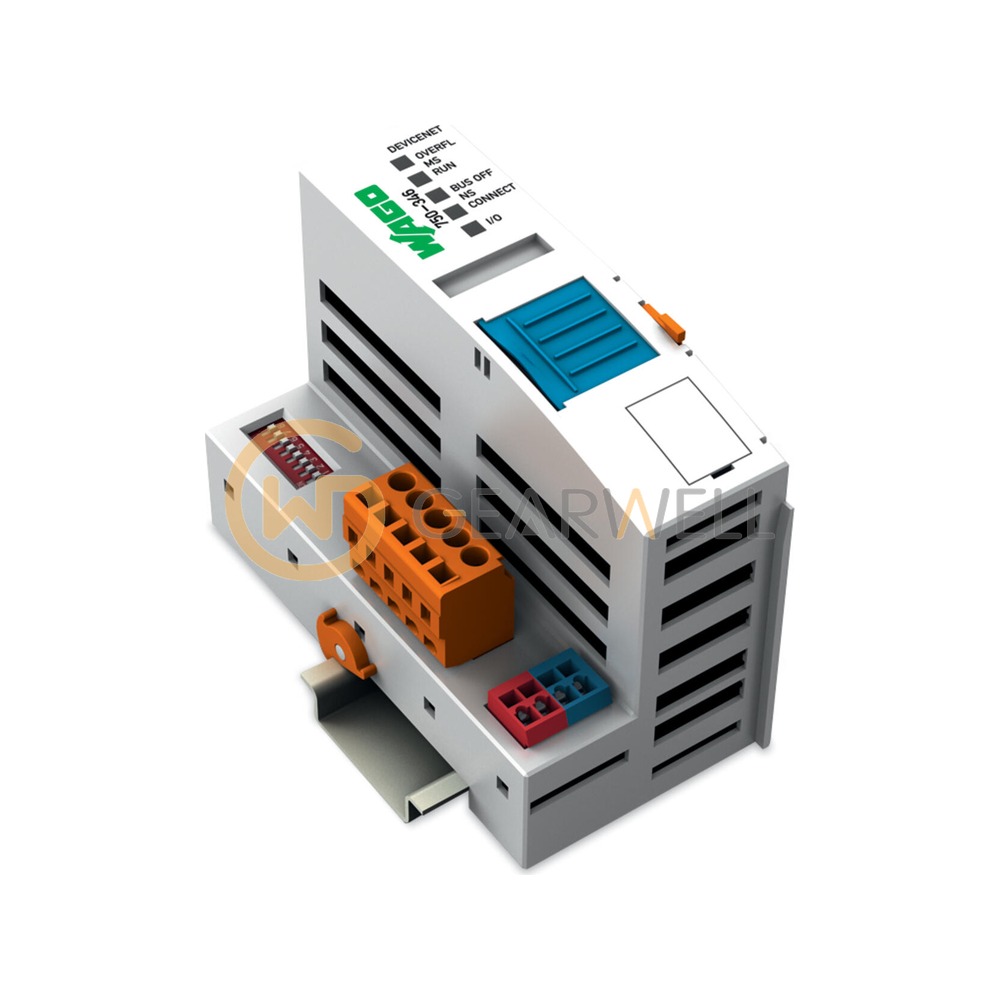

WAGO 750-346 I/O System 750 DeviceNet ECO Fieldbus Coupler
- Brand
- WAGO
- Model
- 750-346
- GEARWELL SKU
- GWP-000009957
- Category
- PLCs & I/O
Key specifications
- Width
- 49.5 mm / 1.949 inches
- Communications
- DeviceNet
- Transmission rate
- 500 kBd (125 kBd, 250 kBd, 500 kBd)
- Number of I/O points
- 6,000
- Supply voltage (system)
- 24 VDC, SELV/PELV (-25 … +30 %)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-346 is the ECO version of the DeviceNet fieldbus coupler for the WAGO I/O System 750. It connects to DeviceNet through a 5-pole male connector at 125 kBd, 250 kBd or 500 kBd, with a bus segment length of up to 500 m, up to 64 modules per node and a process image of up to 32 bytes/32 bytes. It takes a 24 VDC system supply via CAGE CLAMP® connection, with a typical input current of 260 mA and a total current for the system supply of 650 mA. It operates at 0 … +55 °C and measures (49.5 x 96.8 x 71.9) mm W x H x D.
Technical reference
| Product name | WAGO 750-346 I/O System 750 DeviceNet ECO Fieldbus Coupler |
|---|---|
| Brand | WAGO |
| Model | 750-346 |
| Category | PLCs & I/O |
| Width | 49.5 mm / 1.949 inches |
| Communications | DeviceNet |
| Transmission rate | 500 kBd (125 kBd, 250 kBd, 500 kBd) |
| Number of I/O points | 6,000 |
| Supply voltage (system) | 24 VDC, SELV/PELV (-25 … +30 %) |
| Ambient temperature (operation) | 0 … +55 °C |
| Number of modules per node (max.) | 64 |
