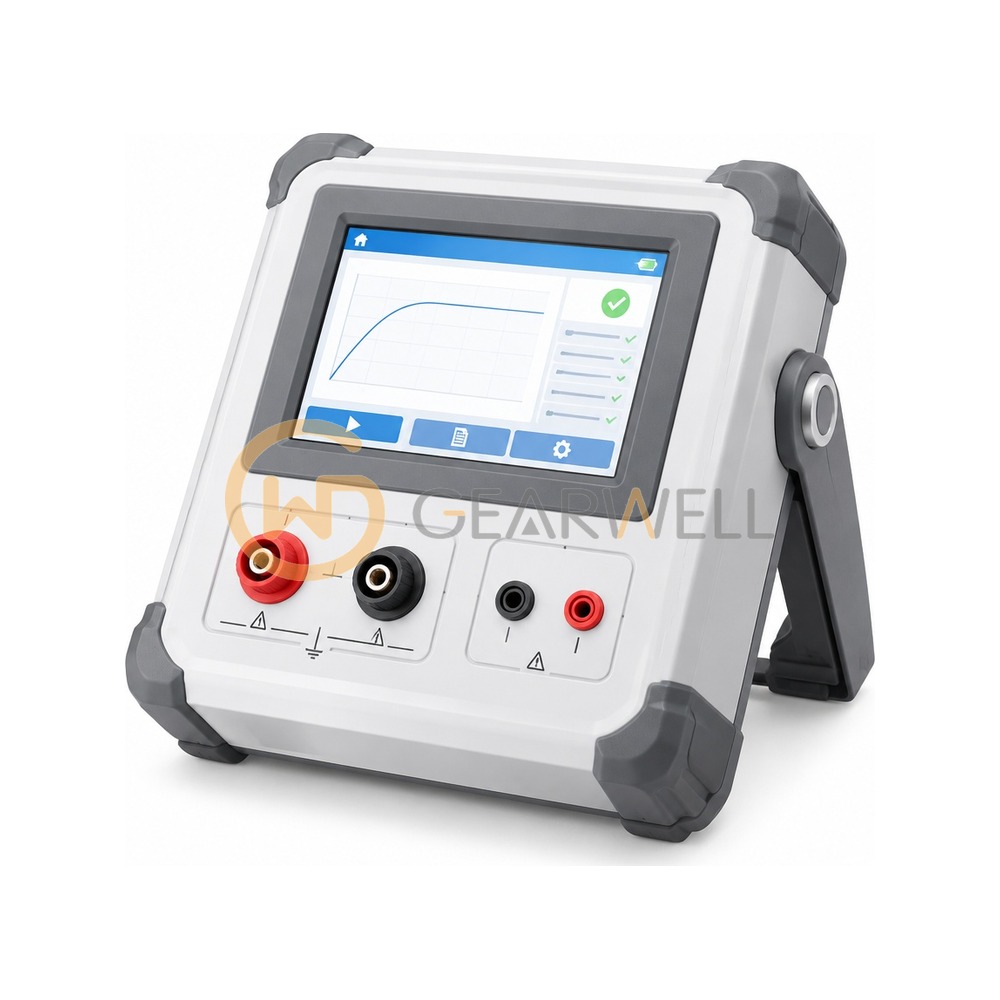

VICTOR 3800B Lightning Protection Component Tester
- Brand
- VICTOR
- Model
- 3800B
- GEARWELL SKU
- GWP-000035020
- Category
- Test & Measurement
Key specifications
- Series
- VICTOR 3800 series intelligent lightning-protection component tester
- Display
- Touch colour screen
- Evidence
- VICTOR (深圳市驿生胜利科技 / Double King Industrial Holdings) original user manual (hosted at datasheet.lcsc.com; china-victor.com returned 403)
- Data storage
- 3000 records, USB upload
- Output voltage
- 0...3000 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | VICTOR 3800B Lightning Protection Component Tester |
|---|---|
| Brand | VICTOR |
| Model | 3800B |
| Category | Test & Measurement |
| Series | VICTOR 3800 series intelligent lightning-protection component tester |
| Display | Touch colour screen |
| Evidence | VICTOR (深圳市驿生胜利科技 / Double King Industrial Holdings) original user manual (hosted at datasheet.lcsc.com; china-victor.com returned 403) |
| Data storage | 3000 records, USB upload |
| Output voltage | 0...3000 V |
| Code as collected | VICTOR 3800B |
| Leakage current range | 0...1000 μA, ±2 % rdg ±10 dgt |
| Insulation resistance test | 0.5 MΩ...10 GΩ |
| Varistor U1mA measuring range | 50...3000 V, ±2 % rdg ±3 dgt |
| Gas discharge tube breakdown voltage | 50...3000 V, ±2 % rdg ±3 dgt |
