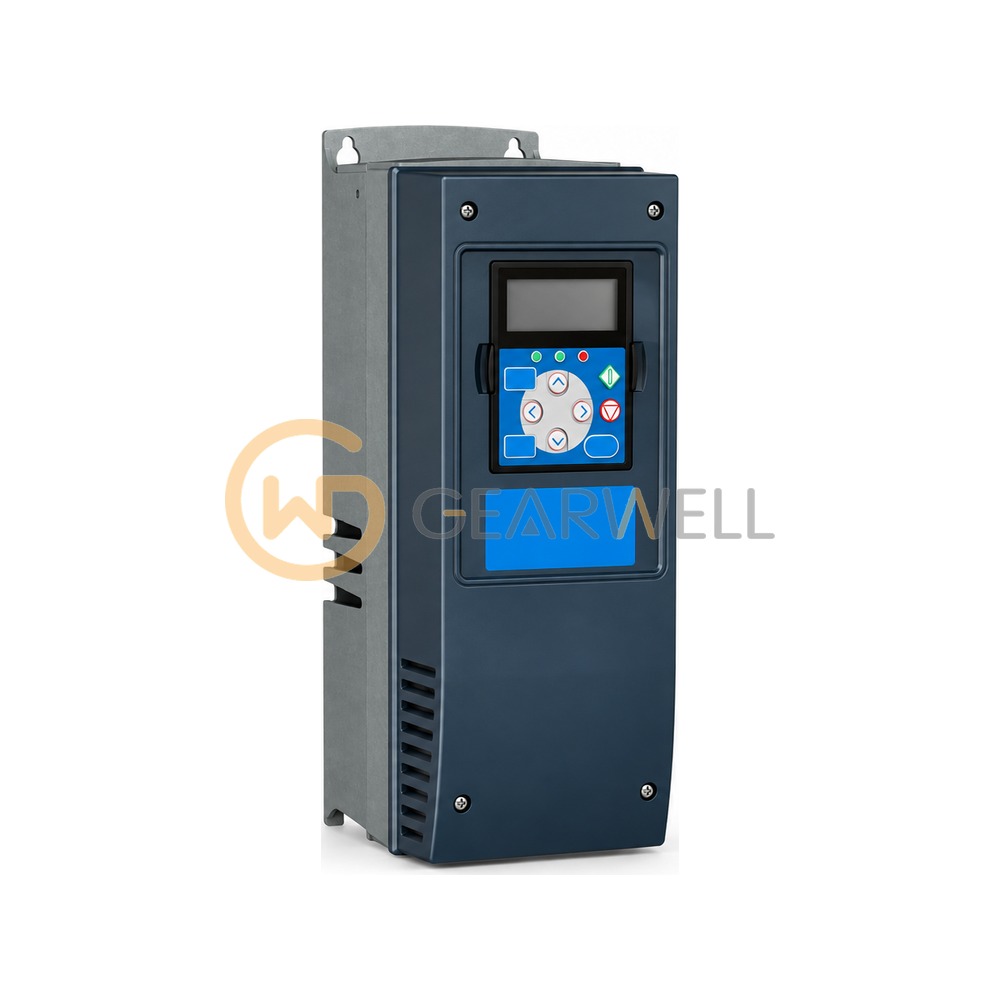

VACON NXP00225B2H1SSSA1A3BE00B1 NXP AC Drive 22 A 11 kW
- Brand
- VACON
- Model
- NXP00225B2H1SSSA1A3BE00B1
- GEARWELL SKU
- GWP-000015825
- Category
- Variable Frequency Drives
Key specifications
- Enclosure
- IP21 (UL Type 1)
- Frame size
- FR5
- Brake chopper
- Internal
- Control panel
- B: no local control panel
- Mains voltage
- 380-500 V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | VACON NXP00225B2H1SSSA1A3BE00B1 NXP AC Drive 22 A 11 kW |
|---|---|
| Brand | VACON |
| Model | NXP00225B2H1SSSA1A3BE00B1 |
| Category | Variable Frequency Drives |
| Enclosure | IP21 (UL Type 1) |
| Frame size | FR5 |
| Brake chopper | Internal |
| Control panel | B: no local control panel |
| Mains voltage | 380-500 V AC |
| Option boards | A: OPT-A1, B: OPT-A3, C: OPT-BE (SSI/EnDat encoder), D: none, E: OPT-B1 (6 DI/DO) |
| Hardware code SSS | 6-pulse supply, air-cooled, standard boards |
| Continuous current (NO / HO) | 22 / 16 A |
| Motor power (low / high overload) | 11 / 7.5 kW |
