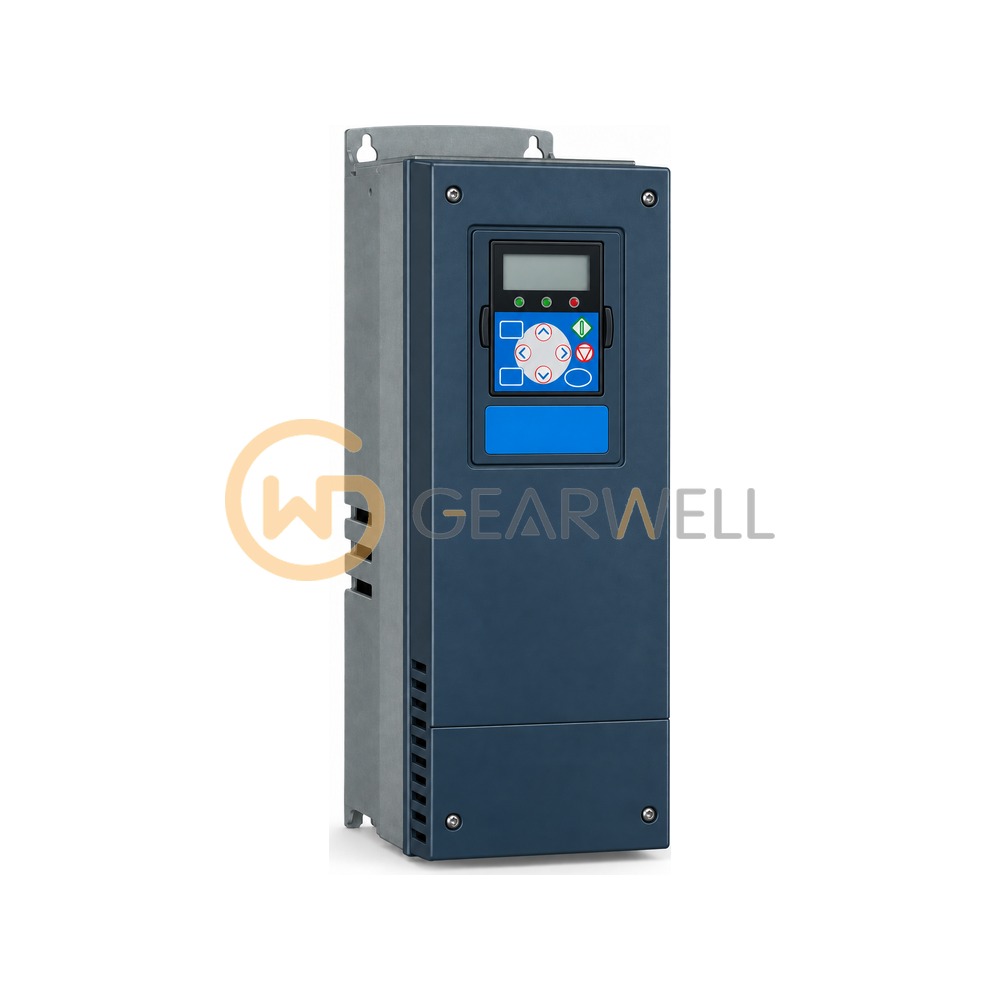

VACON NXI00725-A2T0CSV-A1A3A40000 NXI Inverter Unit 72 A 37 kW
- Brand
- VACON
- Model
- NXI00725-A2T0CSV-A1A3A40000
- GEARWELL SKU
- GWP-000015822
- Category
- Variable Frequency Drives
Key specifications
- EMC level
- T: IEC 61800-3 for IT networks
- Enclosure
- IP21/NEMA1
- Frame size
- FR7 (237 x 591 x 257 mm)
- Option boards
- A: OPT-A1, B: OPT-A3 (2 RO + thermistor), C: OPT-A4 (encoder RS422)
- Product group
- NXI Inverter Unit
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | VACON NXI00725-A2T0CSV-A1A3A40000 NXI Inverter Unit 72 A 37 kW |
|---|---|
| Brand | VACON |
| Model | NXI00725-A2T0CSV-A1A3A40000 |
| Category | Variable Frequency Drives |
| EMC level | T: IEC 61800-3 for IT networks |
| Enclosure | IP21/NEMA1 |
| Frame size | FR7 (237 x 591 x 257 mm) |
| Option boards | A: OPT-A1, B: OPT-A3 (2 RO + thermistor), C: OPT-A4 (encoder RS422) |
| Product group | NXI Inverter Unit |
| Voltage class | 380-500 V AC (465-800 V DC) |
| Electrical modification | C: INU with integrated charging circuit |
| Continuous current (NO / HO) | 72 / 61 A |
| Motor power (low / high overload) | 37 / 30 kW |
