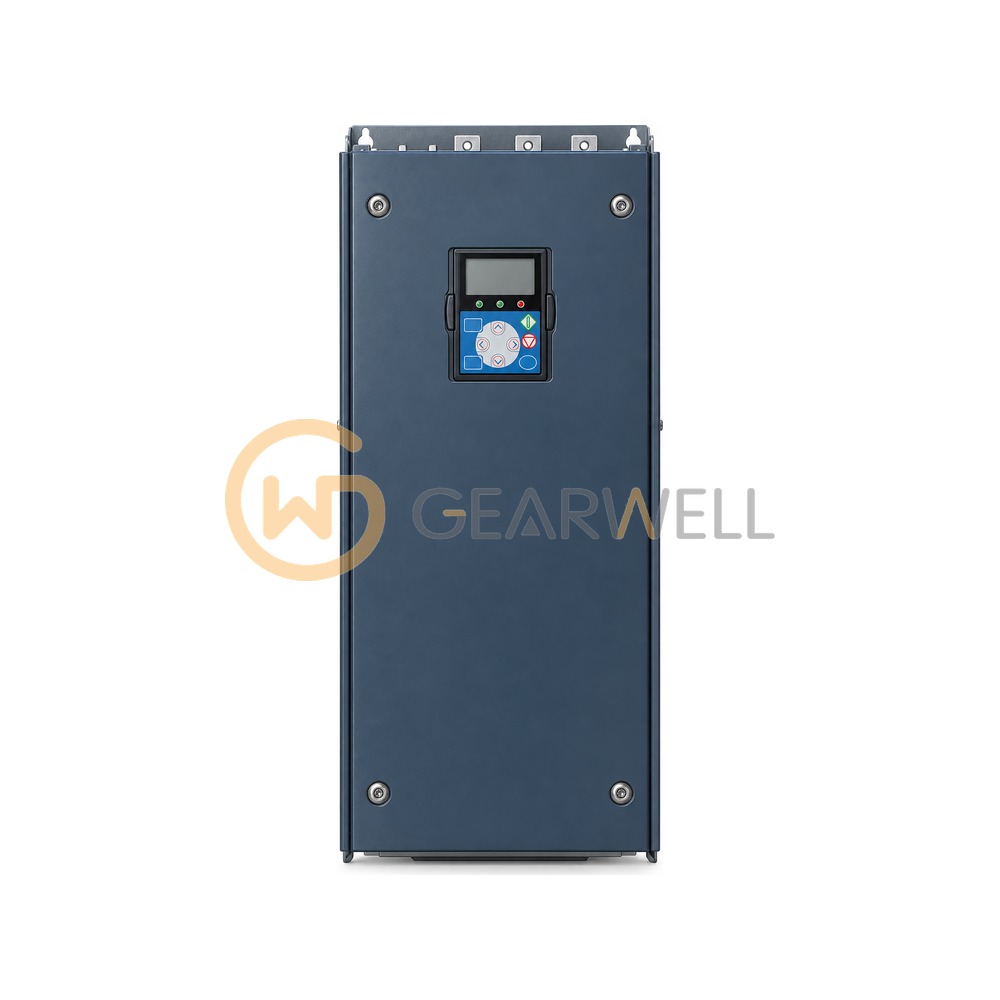

VACON NXP01006-A5L0SSV-A1A300B4B5+DPAP+DLCN NXP AC Drive 90 kW
- Brand
- VACON
- Model
- NXP01006-A5L0SSV-A1A300B4B5+DPAP+DLCN
- GEARWELL SKU
- GWP-000015828
- Category
- Variable Frequency Drives
Key specifications
- EMC level
- L: IEC 61800-3, 2nd environment
- Enclosure
- IP54/NEMA12
- Frame size
- FR8 (288 x 758 x 344 mm)
- Brake chopper
- No brake
- Mains voltage
- 525-690 V AC (640-1100 V DC)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | VACON NXP01006-A5L0SSV-A1A300B4B5+DPAP+DLCN NXP AC Drive 90 kW |
|---|---|
| Brand | VACON |
| Model | NXP01006-A5L0SSV-A1A300B4B5+DPAP+DLCN |
| Category | Variable Frequency Drives |
| EMC level | L: IEC 61800-3, 2nd environment |
| Enclosure | IP54/NEMA12 |
| Frame size | FR8 (288 x 758 x 344 mm) |
| Brake chopper | No brake |
| Mains voltage | 525-690 V AC (640-1100 V DC) |
| Option boards | A: OPT-A1, B: OPT-A3, C: none, D: OPT-B4 (AI, 2 AO), E: OPT-B5 (3 RO) |
| Documentation codes | +DPAP paper guides, +DLCN Chinese language |
| Continuous current (NO / HO) | 100 / 80 A |
| Motor power (low / high overload) | 90 / 75 kW |
