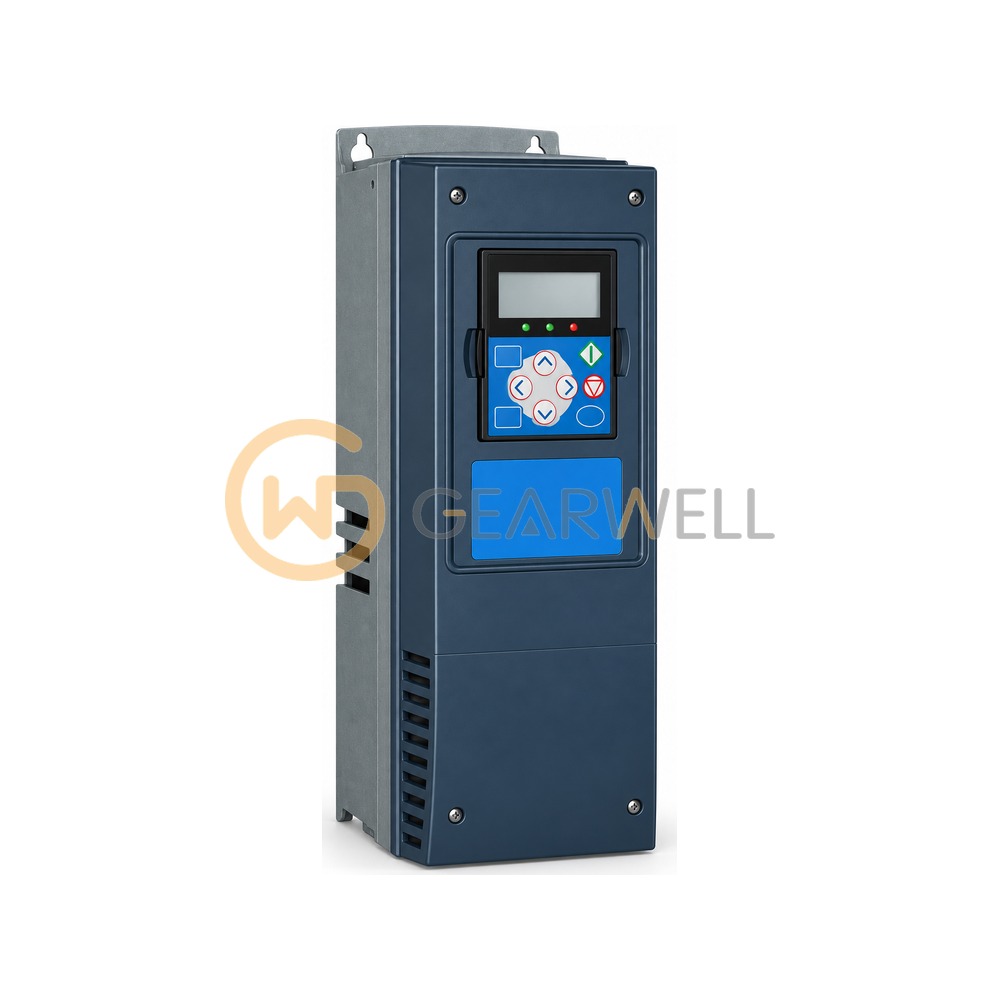

VACON NXP00615-A2H1SSV-A1A2000000 NXP AC Drive 61 A 30 kW
- Brand
- VACON
- Model
- NXP00615-A2H1SSV-A1A2000000
- GEARWELL SKU
- GWP-000015818
- Category
- Variable Frequency Drives
Key specifications
- EMC level
- H: IEC 61800-3
- Enclosure
- IP21/NEMA1
- Frame size
- FR6 (195 x 557 x 237 mm)
- Brake chopper
- Integrated
- Mains voltage
- 380-500 V AC (465-800 V DC)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | VACON NXP00615-A2H1SSV-A1A2000000 NXP AC Drive 61 A 30 kW |
|---|---|
| Brand | VACON |
| Model | NXP00615-A2H1SSV-A1A2000000 |
| Category | Variable Frequency Drives |
| EMC level | H: IEC 61800-3 |
| Enclosure | IP21/NEMA1 |
| Frame size | FR6 (195 x 557 x 237 mm) |
| Brake chopper | Integrated |
| Mains voltage | 380-500 V AC (465-800 V DC) |
| Option boards | Slot A OPT-A1, Slot B OPT-A2 |
| Continuous current (NO / HO) | 61 / 46 A |
| Motor power (low / high overload) | 30 / 22 kW |
