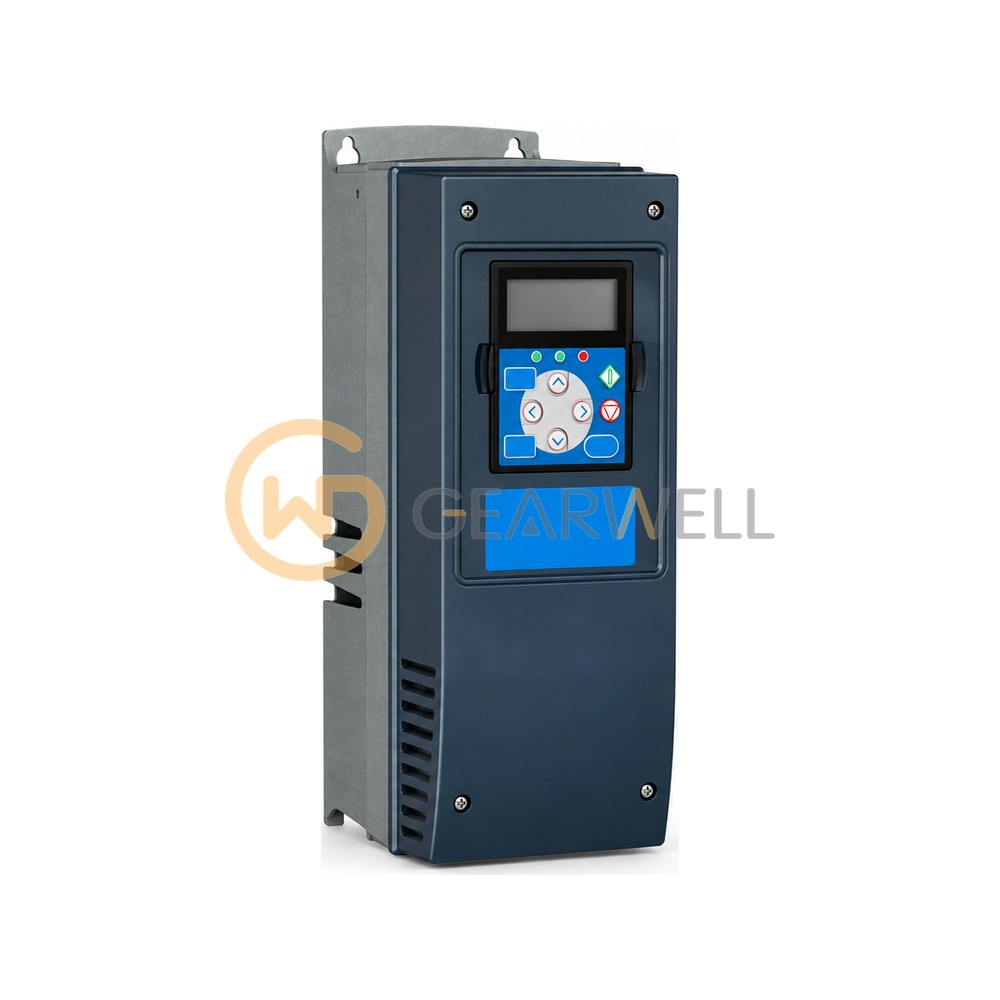

VACON NXP00165-A2H1SSV-A1A2000000 NXP AC Drive 16 A 7.5 kW
- Brand
- VACON
- Model
- NXP00165-A2H1SSV-A1A2000000
- GEARWELL SKU
- GWP-000015824
- Category
- Variable Frequency Drives
Key specifications
- EMC level
- H: IEC 61800-3
- Enclosure
- IP21/NEMA1
- Frame size
- FR5 (144 x 417 x 214 mm)
- Brake chopper
- Integrated
- Mains voltage
- 380-500 V AC (465-800 V DC)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | VACON NXP00165-A2H1SSV-A1A2000000 NXP AC Drive 16 A 7.5 kW |
|---|---|
| Brand | VACON |
| Model | NXP00165-A2H1SSV-A1A2000000 |
| Category | Variable Frequency Drives |
| EMC level | H: IEC 61800-3 |
| Enclosure | IP21/NEMA1 |
| Frame size | FR5 (144 x 417 x 214 mm) |
| Brake chopper | Integrated |
| Mains voltage | 380-500 V AC (465-800 V DC) |
| Option boards | Slot A OPT-A1, Slot B OPT-A2 |
| Continuous current (NO / HO) | 16 / 12 A |
| Danfoss order code example | 137U2165 (+QGLM+FL23+DPAP) |
| Motor power (low / high overload) | 7.5 / 5.5 kW |
