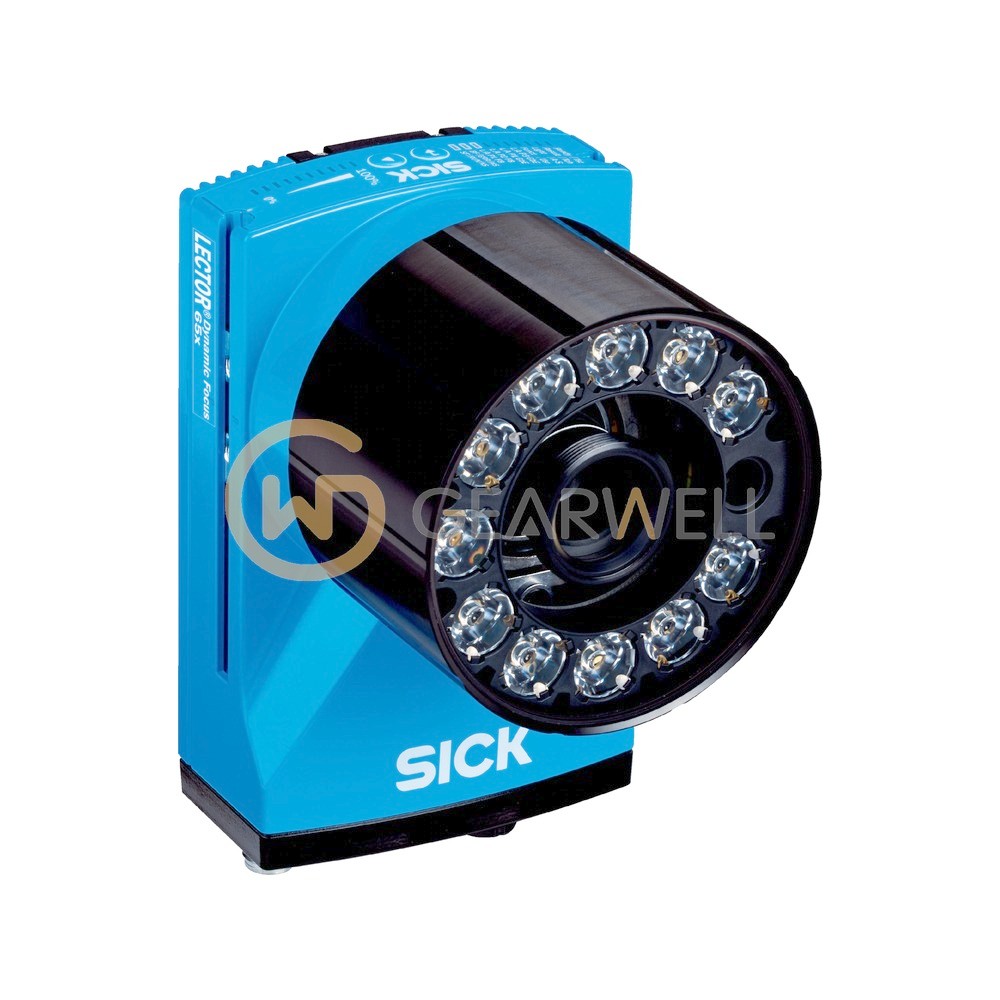

SICK 1081534 V2D652R-MEWKF6 Lector65x Image-based Code Reader
- Brand
- SICK
- Model
- 1081534
- GEARWELL SKU
- GWP-000013793
- Category
- Machine Safety & Vision
Key specifications
- Weight
- 963 g
- Focal length
- 40 mm
- Illumination
- Integrated, white LED
- Optical focus
- Dynamic focus control
- Working range
- 500 ... 2,500 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 1081534 V2D652R-MEWKF6 Lector65x Image-based Code Reader |
|---|---|
| Brand | SICK |
| Model | 1081534 |
| Category | Machine Safety & Vision |
| Weight | 963 g |
| Focal length | 40 mm |
| Illumination | Integrated, white LED |
| Optical focus | Dynamic focus control |
| Working range | 500 ... 2,500 mm |
| Article number | 1081534 |
| Supply voltage | 24 ± 20 % V DC |
| Enclosure rating | IP65 |
| Type designation | V2D652R-MEWKF6 |
| Sensor resolution | 2,048 x 1,088 (2.1 MP) px |
| Scanning frequency | 70 Hz |
| Official type designation | V2D652R-MEWKF6 for Systems |
